XING Laser Machines

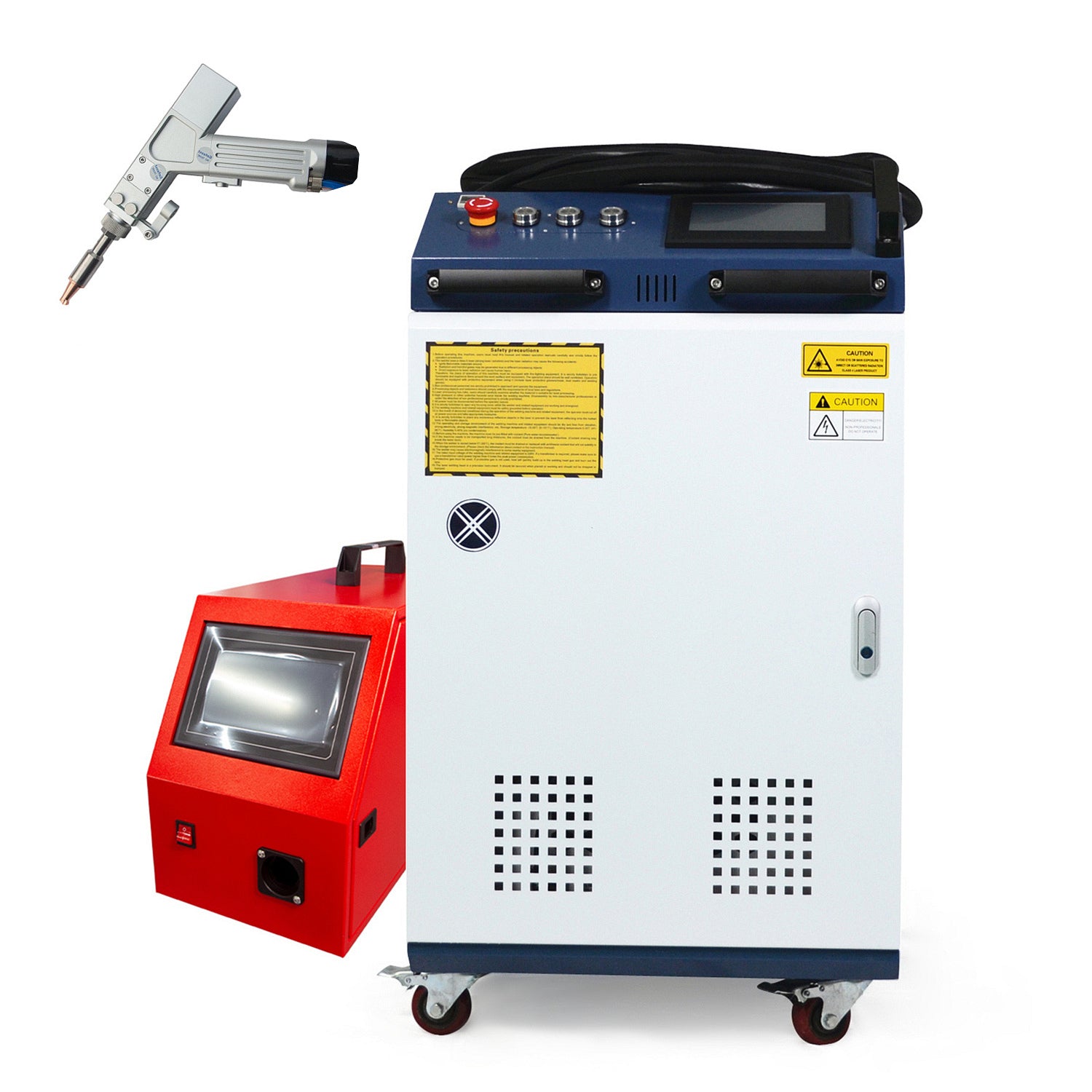

Handheld Laser Welder · 1500W Laser Welding Machine
Handheld Laser Welder · 1500W Laser Welding Machine
Regular price
$6,999.00
Regular price
$12,999.00
Sale price
$6,999.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is Welding Only Machine. No stock; pre-orders, take 6-8 weeks for delivery.
Know more about our Pre-order service.
Machine features
- 2x-4x faster than TIG
- Wide range of materials
- Easy to learn and use
- Simple applications
- Mature industry technology
Dimensions (W x D x H):

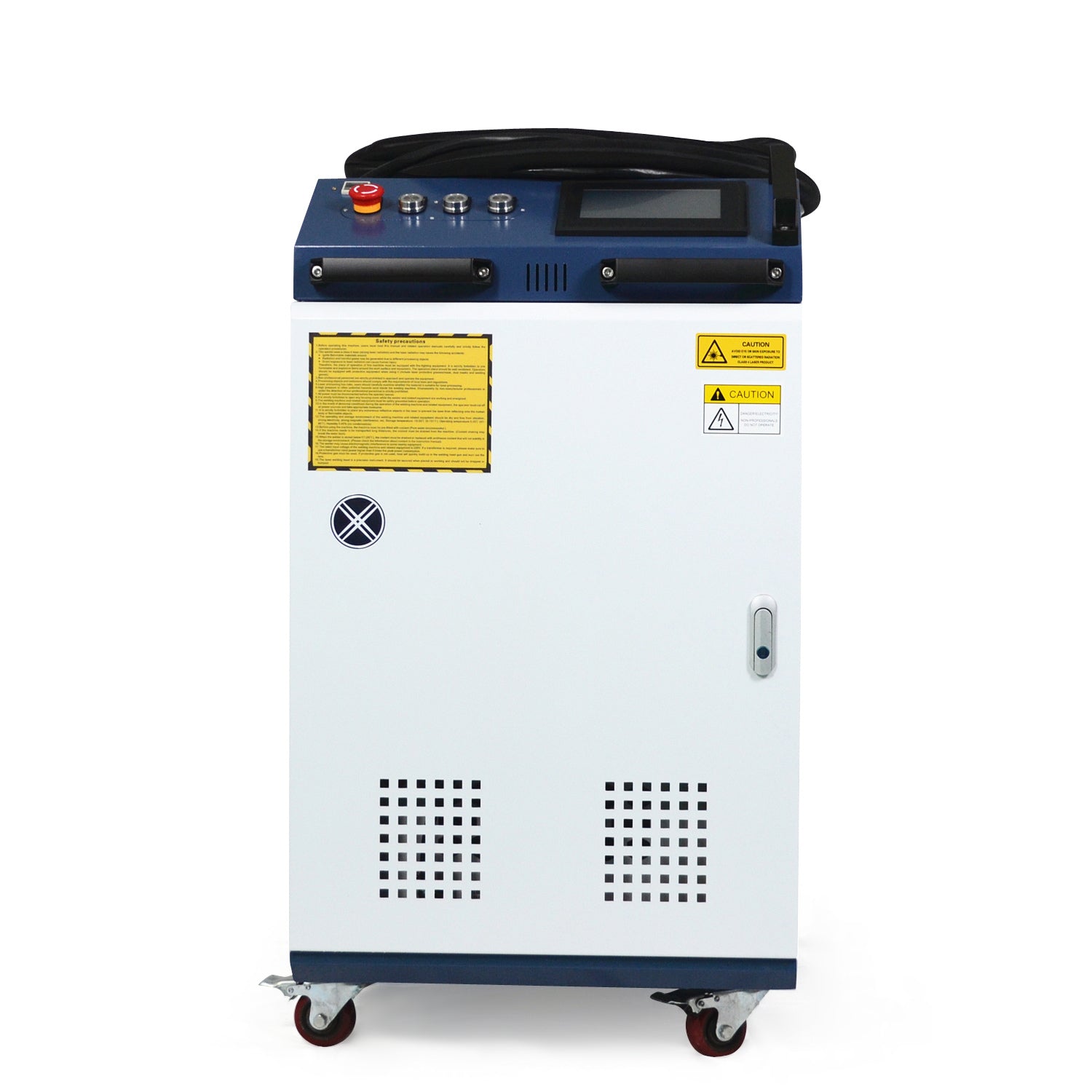

- Welding Machine:22.0 x 33.5 x 35.5 inches

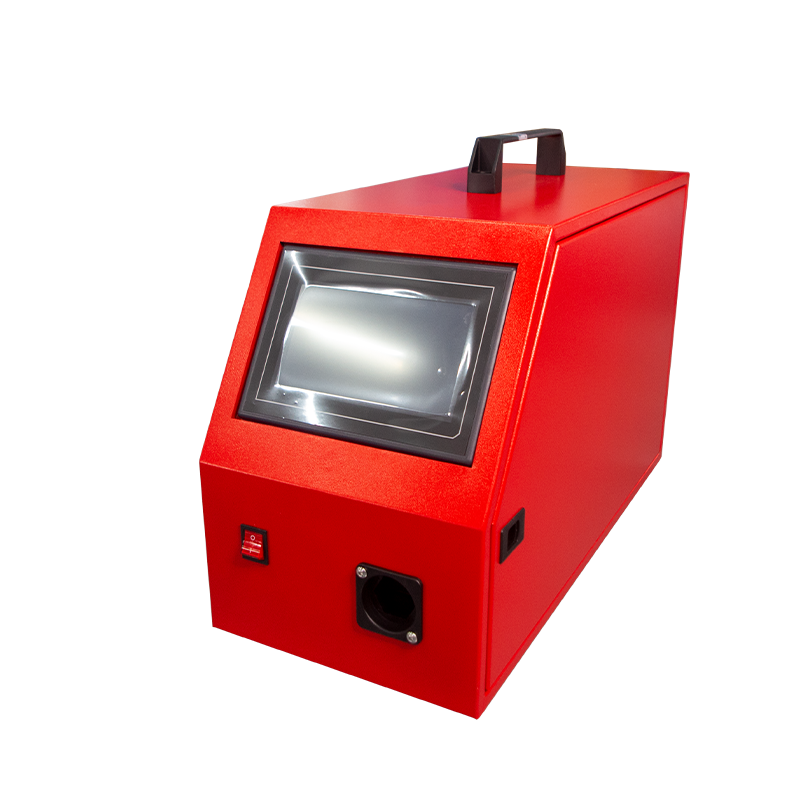

- Wire Feeder: 9.5 x 22.5 x 16.5 inches
Weight:
- Welding Machine:1500w/160kg
- Wire Feeder: 17kg
Function:
- Metal Welding:Able to weld most metals such as stainless steel, aluminum, carbon steel, galvanized sheet, brass, bronze, titanium, alloys, etc. Welding thickness data reference:
Material | Laser Power | Welding Speed | Wobble Length | Thickness |
Mild steel | 1450W | 9mm/sec | 4.5mm | 4.0mm |
Stainless Steel | 1000W | 10mm/sec | 3.0mm | 3.0mm |
Galvanized Steel | 1100W | 11mm/sec | 3.0mm | 3.0mm |
Aluminum 3&5 Series | 1350W | 12mm/sec | 3.0mm | 3.0mm |
Copper | 1400W | 8mm/sec | 2.0mm | 2.0mm |
Parameters
- Laser Source: 1500W 1080±5 nm fiber laser
- Laser Output Power: 1500w
- Power In & Consumption:
- 1500W Laser < 7.5 KW
- Cable Length: From Base Unit to Head: 9 m (29 ft)
- Welding Speed: 0 - 40 mm/s
- Cooling System: Water Cooling

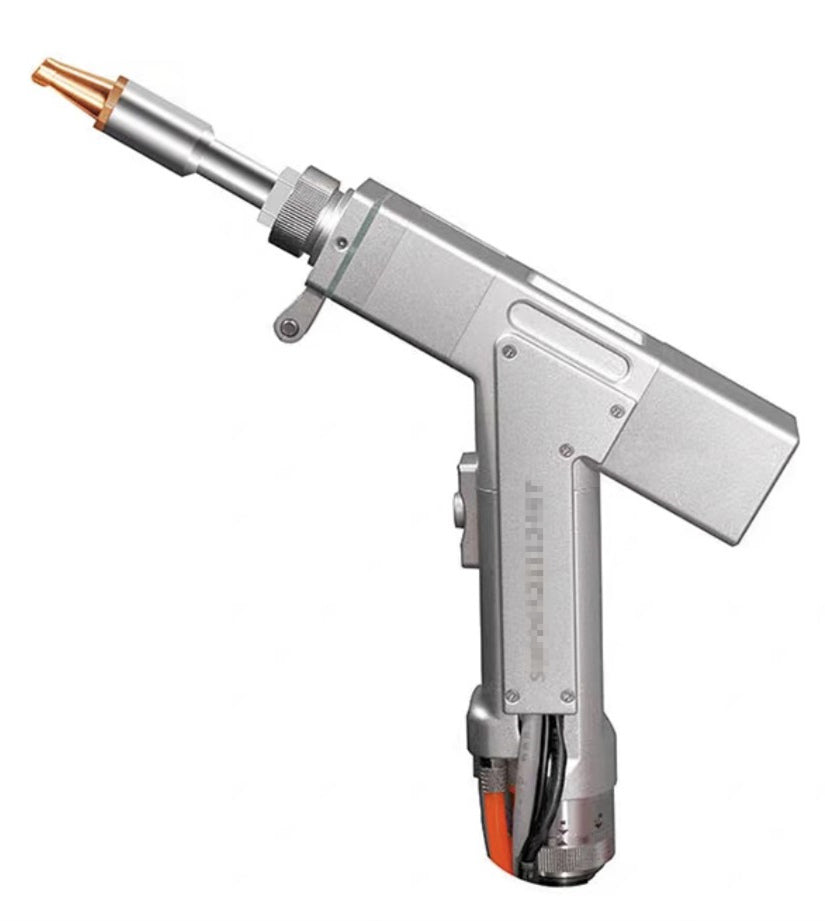

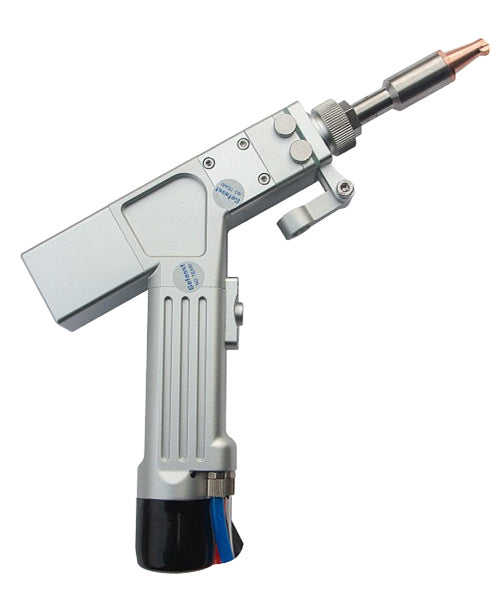

- Welding Head Gun: 1.6 lb handheld Wobble (Single dimensional )Welding Gun with user-changeable nozzles
- Wobble Length: up to 5mm.
- Recommended Welding Gap Width: less than 2.0mm (less than 1/2 of the thickness of base material)
- Shielding Gas: Argon, Nitrogen. Working Pressure ≤1Mpa.
- Operating Environment:
- Storage temperature 5-131 ℉/ -15-55 ℃
- Operating temperature 45-95 ℉ / 5 - 35 ℃
- Humidity 5-85% (no condensation)
- Welding Wire:
- 1.0-1.5 mm parent material - 0.8mm diameter welding wire
- 2.0-2.5 mm parent material - 1.0mm diameter welding wire
- 3.0-3.5 mm parent material - 1.2mm diameter welding wire
- 4.0-5.0 mm parent material - 1.6mm diameter welding wire
- Welding Wire Weight ≤ 25kg
- Coolant: Pure Water or Anti-freeze Coolant
- Safety: Class 4 Laser Device. Customer is responsible for standard ANSI Z136.1 safety precautions.
- Facilities Electrical Requirements: 220±10% V AC、50/60Hz
Accessories:
- Protective Lens D20-T2 x5 (10 more protective lenses are additional complimentary items )
- Welding Head Gun Nozzles x5 (2 more Head Nozzles are additional complimentary items )
- Wire Feeding Head Pipe x1
- Wire Feeding Pipe Head Nozzles x4
- Laser Safety Glasses x1
- Shielding Gas Pipe x1
- Wire Feeding Roller x2 (There are four feeding wheels, two of which are mounted on the wire feeder )
- Wire Feeder Power cable x1
- Wire Feeder Signal Cable x1
Shipping:
- Local shipping for regular US orders. (Shipping Policy)
Warranty & Guarantee :
-
Warranty Policy
. - Quick response Support.
