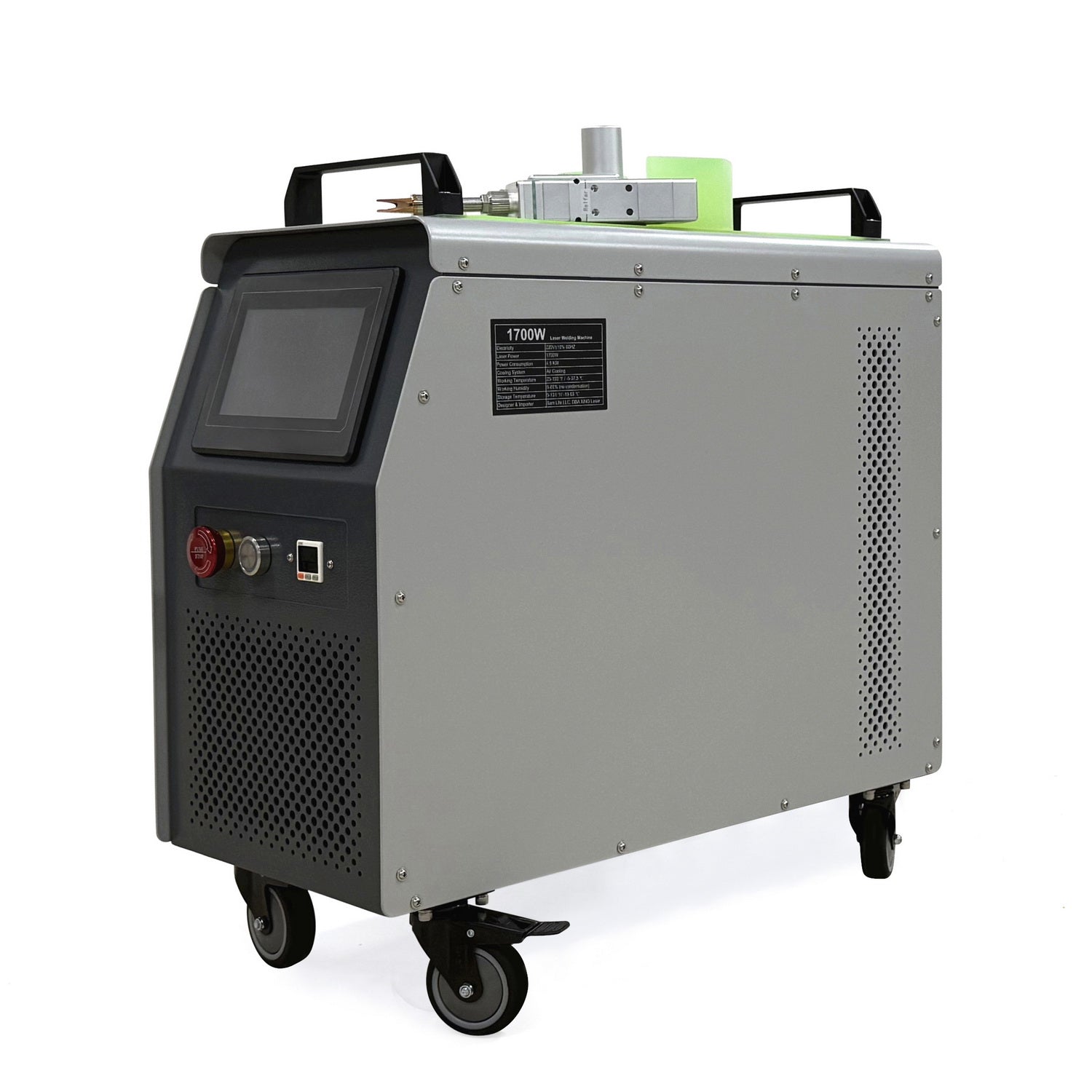

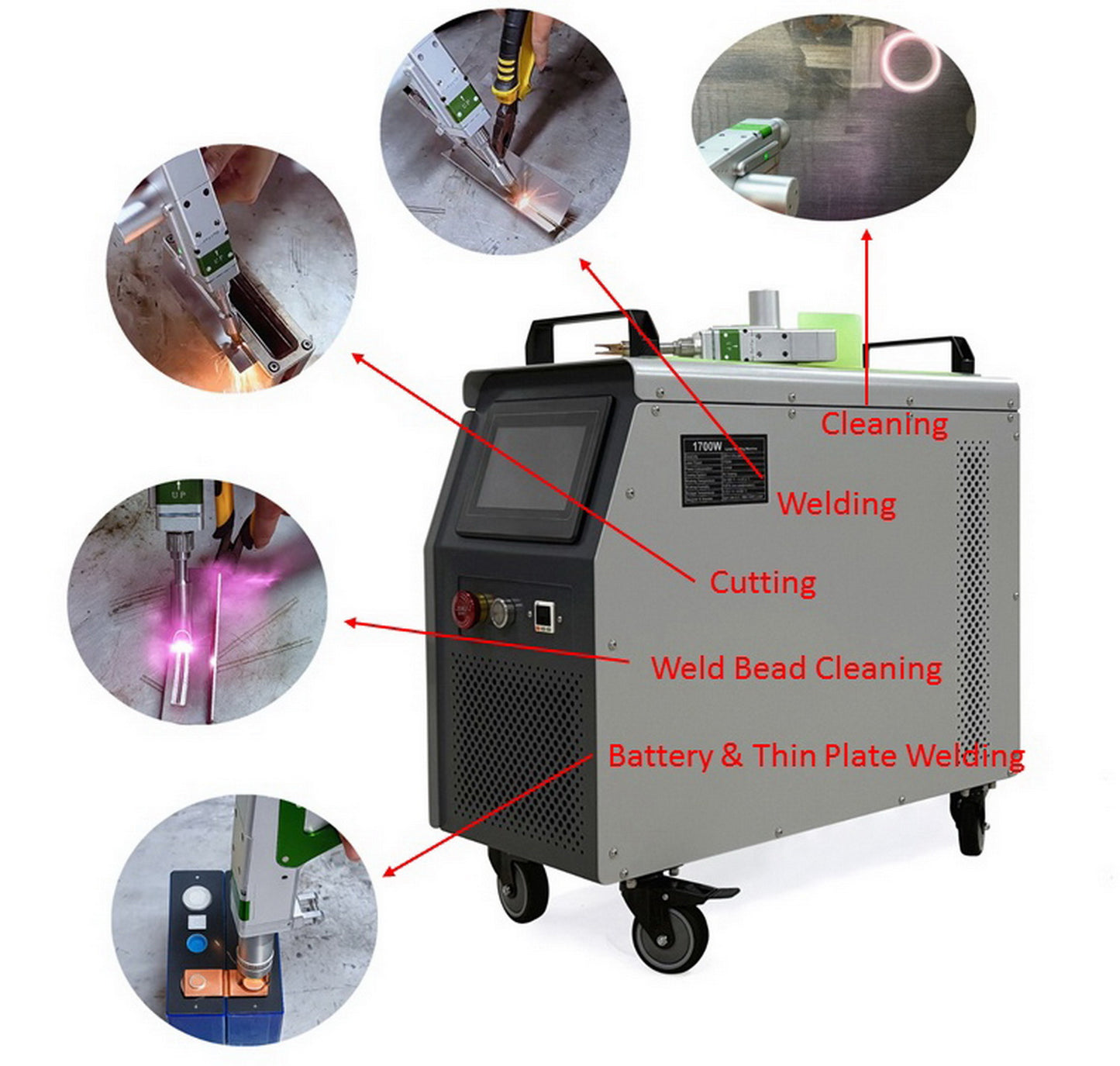

1700W Industrial Handheld Laser Welder Laser Welding Machine 5-in-1 Air Cool

Pre-order - 5 Weeks Delivery

Machine Specifications

Machine Dimensions: 24.5 in × 23.5 in × 12.0 in
Machine Weight: 100 lbs

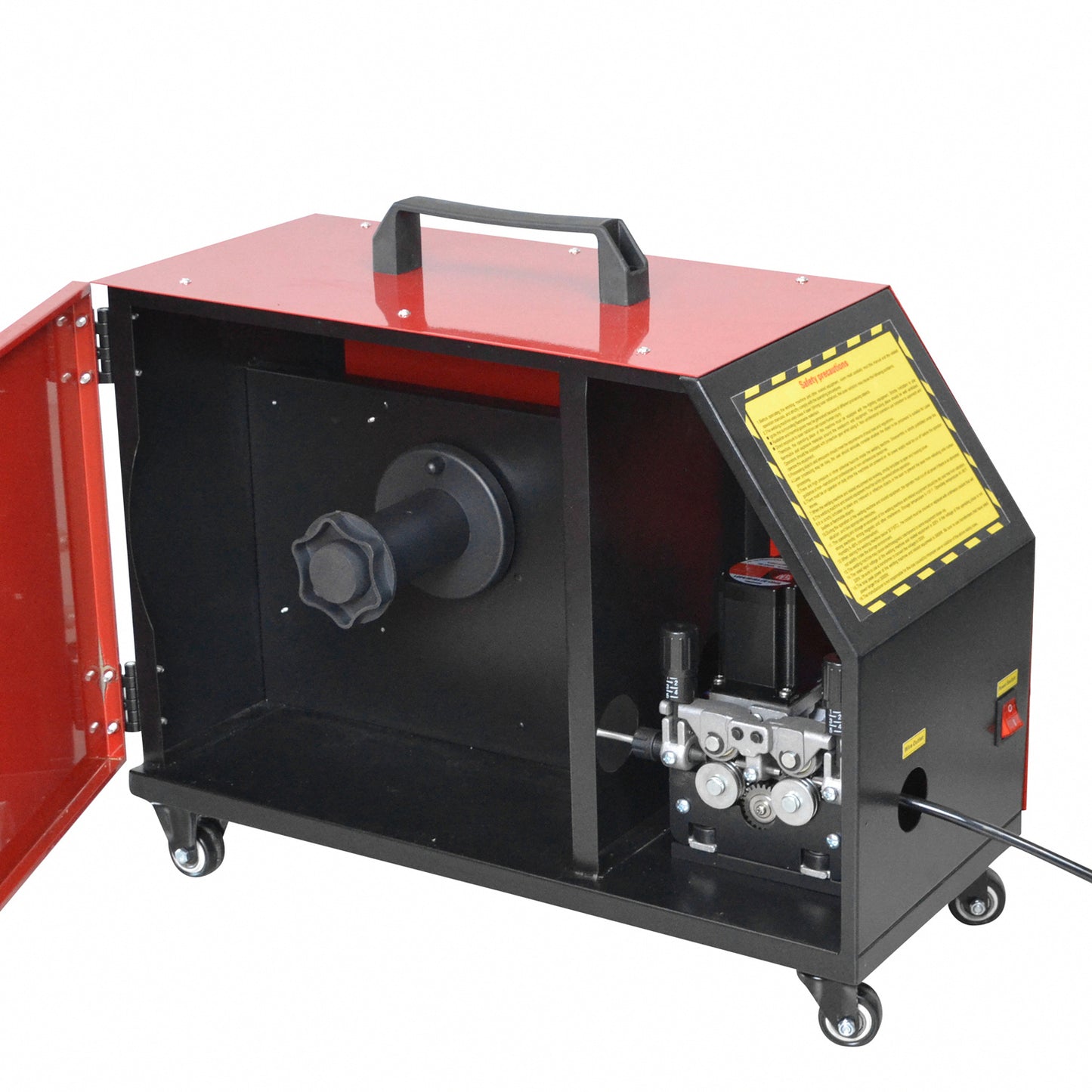

Wire Feeder Dimensions: 9.5 in × 22.5 in × 16.5 in
Wire Feeder Weight: 33 lbs

Technical Parameters

(1 inch = 25.4 mm)
(°C = (°F − 32) × 5/9)

• Laser Source: 1080 ± 5 nm fiber laser

• Laser Output Power: 1700 W

• Facility Requirements: 220 V AC ± 10%, 50/60 Hz

• Power Input & Consumption: < 4.5 kW

• Generator (if have) solely power supply required minimum 11 KW - running power

• Cooling System: Air-cooled

• Cable Length (Base Unit → Head): 30 ft (approx. 9 m)

• Welding Head Gun: 1.6 lb handheld single-axis wobble welding gun with user-changeable nozzles

• Wobble Length: up to 5 mm

• Recommended Welding Gap: < 2.0 mm

• Welding Performance (Steel/Aluminum):

  • Up to 4.5 mm at optimal welding speed

  • Maximum depth 5.5 mm at reduced/slowest speed

• Rust Removal Scan Width: 10–110 mm

• Welding Seam Cleaning Width: ≤ 12 mm

• Shielding Gas: Argon, Nitrogen

• Maximum Input Working Pressure: ≤ 1 MPa

• Storage Temperature: 5–131 °F / -15–55 °C

• Operating Temperature: 32–105 °F / 0–40 °C

• Humidity: 5–85% (non-condensing)

Welding Wire Compatibility

• 1.0–1.5 mm parent material: 0.8 mm wire

• 2.0–2.5 mm parent material: 0.8–1.0 mm wire

• 3.0–3.5 mm parent material: 1.0–1.2 mm wire

• 4.0–5.0 mm parent material: 1.0–1.6 mm wire

• Wire Weight Supported: 2 lbs – 30 lbs

Safety

• Classification: Class 4 Laser Device

• Requirement: Customer must follow standard ANSI Z136.1 laser safety practices.

Electrical Requirements

• Voltage: 220V ± 10%, AC 60 Hz, Single Phase

• Fully compatible with 240V single phase created by two 120V hot wires 180° out of phase.

Included Accessories & Parts

Single Wire Feeder Machine Accessories:

• Protective Lens D25-T2 – 10 pcs

• Cleaning Function Protective Cover

• Cleaning Function Focus Component F800 (lens included)

• Welding Head Gun Nozzles: E0.8 mm, E1.0 mm, E1.2 mm, E1.6 mm, H-Cut

• Welding Seam Cleaning Nozzle

• Wire Feeding Head Pipe

• Wire Feeding Pipe Head Nozzles: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm

• Shielding Gas Pipe

• Wire Feeding Rollers:

  • 0.8 mm & 1.0 mm (double-sided)

  • 1.2 mm & 1.6 mm (double-sided)
    (Total 4 wheels — two pre-installed on the wire feeder)

Accepted Payment Methods:

1. Shopify Pay or Installment Payment: Allows customers to pay via Shopify Pay or split payments into installments.

2. Domestic and International Wire Transfers: For both local and international transactions via bank wire.

3. Credit Cards: Visa, MasterCard, American Express, etc.

4. PayPal: Secure online payments through PayPal accounts.

5. Zelle: Instant payments using Zelle for US-based transactions.

6. Company Check: Payment via business checks.

7. Third-Party Financing: Financing options through third-party providers like ACG (or others).

 Xing Laser Welding Machines are explicitly designed and intended for industrial use in sectors such as automobile manufacturing, metal factories, large steel plants, and are not intended for use in any processes related to food, drugs, or other regulated industries.
Tech support, warranty, and any questions can directly contact XING Laser company support, which is the same across all the commercial sites.
