1500W CW Fiber Laser Cleaner – Handheld Wobble Head with Dual Scan | Industrial-Grade Rust, Paint & Oil Removal Machine (Water-Cooled for Continuous Use)

⚙️ Key Features

·         Laser Type: 1500W Continuous Wave Fiber Laser (1080±5 nm)

·         Cleaning Scope:

o    Single Line Scan: up to 300 mm (11.8 in.)

o    Dual Vibration Scan: up to 200 mm (7.8 in.)

·         Handheld Wobble Head Gun (1.6 lb): Lightweight with upgraded protective lens cover and dual vibration for multiple beam trajectories.

·         Cooling System: Built-in, independent water chiller enables all-day continuous operation and easy maintenance.

·         Non-Contact Cleaning: Ideal for heavy rust, paint, and oil remove.

🛠️ Specifications

·         Dimensions (W x D x H): 22.0 x 33.5 x 35.5 inches

·         Weight: 200 lbs

·         Cable Length (Base Unit to Head): 9 m (~30 ft)

·         Power Requirements and consumption:

o    Input Power: < 7.0 kW

o    Voltage: 220–240V ±10%, Single Phase, 50/60Hz

·         Cooling Liquid: Purified or distilled water; add antifreeze coolant in winter

·         Air Requirement: 6-gallon, 150 PSI compressor with industrial-grade air filter

·         Operating Environment:

o    Temperature: 50–95 ℉ (10–35 ℃)

o    Humidity: 5–85% (non-condensing)

o    Storage Temperature: -15–55 ℃ / 5–131 ℉

·         Safety Class: Class 4 Laser Device
ANSI Z136.1 compliance required by user

🧰 Accessories & Consumables

·         Protective lens

·         Laser safety glasses

·         Air pipe (OD 8mm / 10mm)

·         Consumables: Protective lens, electricity

·         Maintenance: Simple; largely limited to water refill and lens check

✅ How to Identify Real 1500W Output

1.      Melting Depth Test: Greater melt depth during welding indicates higher actual power.

2.      Current Test: Using a multimeter at the same power setting, sufficient power lasers draw 20%+ higher current than underpowered versions.

⚠️ Important Notes

·         CW Laser Technology: Ideal for large surface cleaning on thick metals (2mm+).
Not recommended for thin sheets, heat-sensitive components, or precision parts.

·         For delicate or precision cleaning, choose a pulse laser cleaner.

·         Intended Use: Industrial and commercial — automotive, steel structures, machinery, floor, wall etc. Not suitable for food, drug, or other regulated industries.

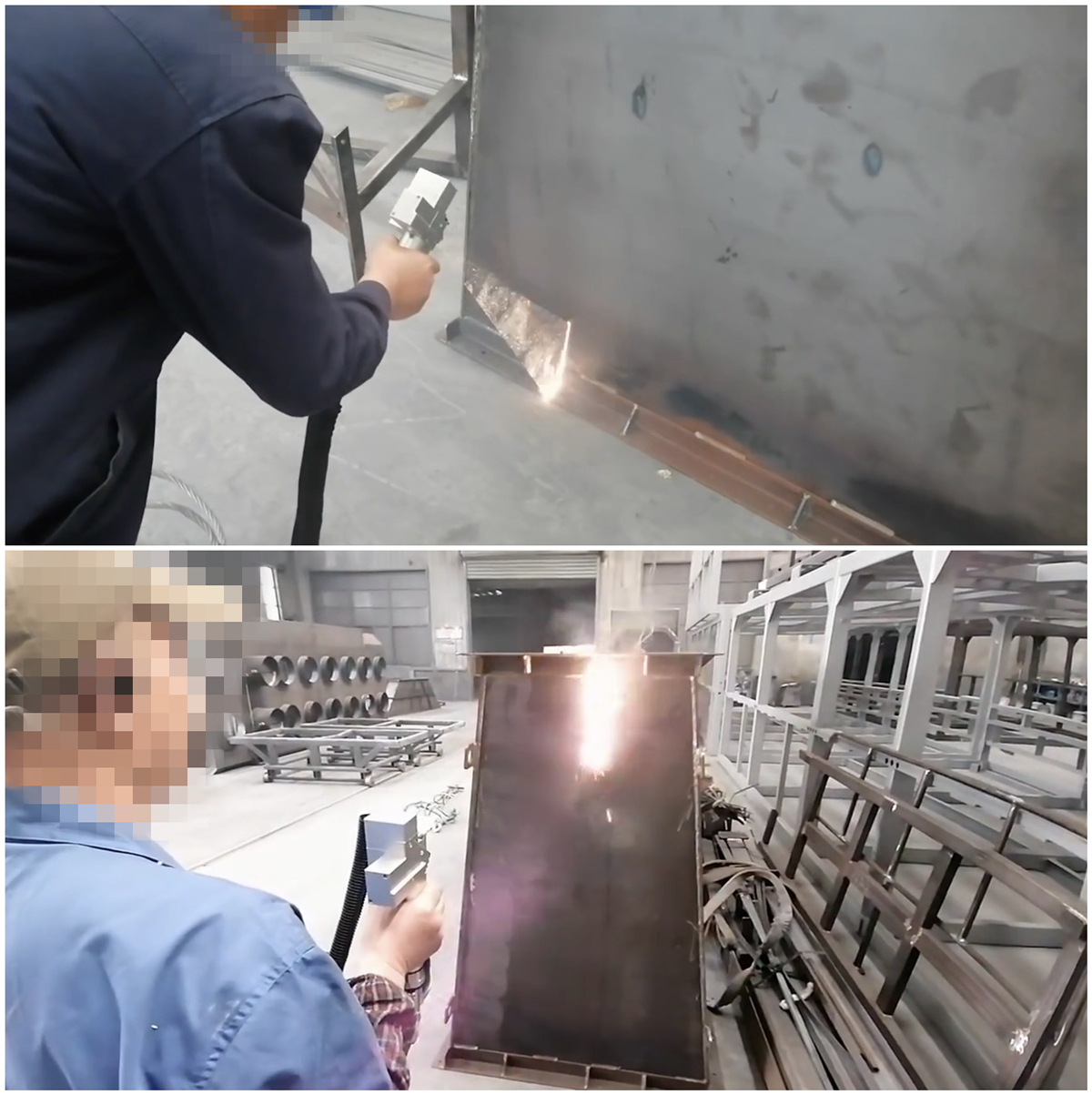

·         Continuous Wave (CW) Laser Cleaning Machine is designed for effective removal of paint, oil, and rust from metal surfaces. It operates by using high-energy laser beams to continuously ablate contaminants from the substrate.

🏭 About XING Laser

XING Laser specializes in the development and manufacture of high-performance handheld laser cleaning and rust removal equipment. We’re committed to delivering cost-effective, durable, and industrial-grade laser solutions.
