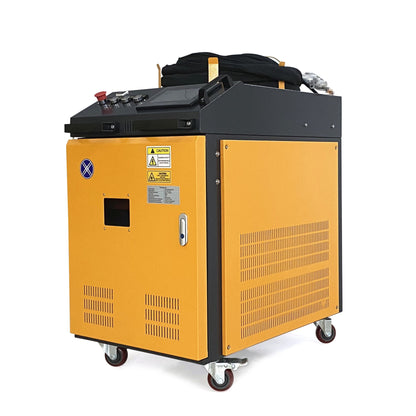

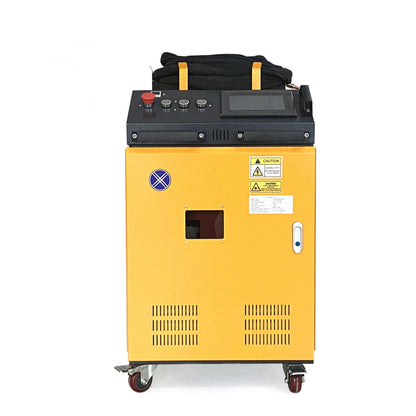

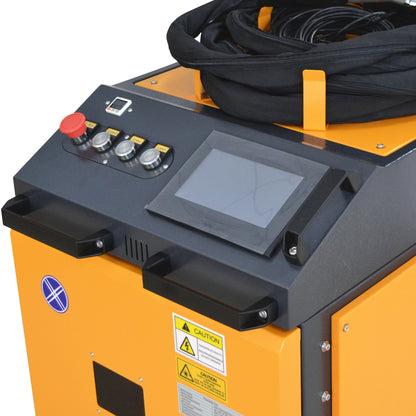

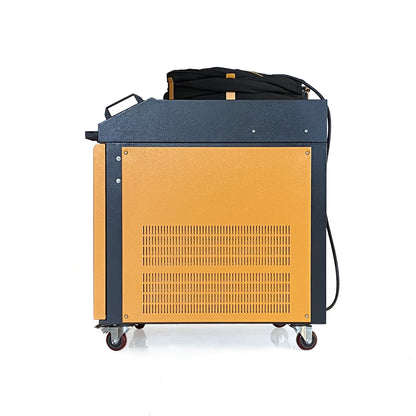

1500W CW Fiber Laser Cleaning Machine – Handheld Wobble Head with Dual Scan Lens

1500W Continuous Wave Fiber Laser (1080±5 nm)

Cleaning Scope:

Single Line Scan: up to 300 mm (11.8 in.)

 Dual Vibration Scan: up to 200 mm (7.8 in.)

 Handheld Wobble Head Gun (1.6 lb): Lightweight with upgraded protective lens cover and dual vibration for multiple beam trajectories.

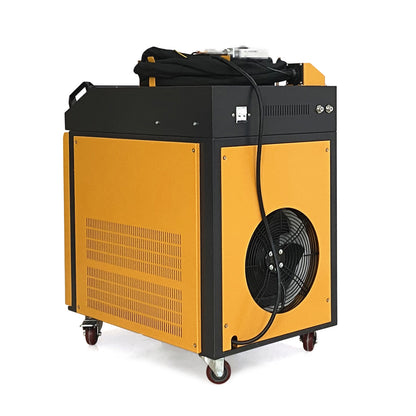

 Cooling System: Built-in, independent water chiller enables all-day continuous operation and easy maintenance.

 Non-Contact Cleaning: Ideal for heavy rust, paint, and oil remove.

 Specifications

 Dimensions (W x D x H): 22.0 x 33.5 x 35.5 inches

 Weight: 200 lbs

 Cable Length (Base Unit to Head): 9 m (~30 ft)

 Power Requirements and consumption:

 Input Power: < 7.0 kW

 Voltage: 220–240V ±10%, Single Phase, 50/60Hz

 Cooling Liquid: Purified or distilled water; add antifreeze coolant in winter

 Air Requirement: 6-gallon, 150 PSI compressor with industrial-grade air filter

 Operating Environment:

 Temperature: 50–95 ℉ (10–35 ℃)

 Humidity: 5–85% (non-condensing)

 Storage Temperature: -15–55 ℃ / 5–131 ℉

 Safety Class: Class 4 Laser Device
ANSI Z136.1 compliance required by user

Accessories & Consumables

 Protective lens

 Laser safety glasses

 Air pipe (OD 8mm / 10mm)

 Consumables: Protective lens, electricity

 Maintenance: Simple; largely limited to water refill and lens check

✅ How to Identify Real 1500W Output

1.      Melting Depth Test: Greater melt depth during welding indicates higher actual power.

2.      Current Test: Using a multimeter at the same power setting, sufficient power lasers draw 20%+ higher current than underpowered versions.

⚠️ Important Notes

 CW Laser Technology: Ideal for large surface cleaning on thick metals (2mm+).
Not recommended for thin sheets, heat-sensitive components, or precision parts.

 For delicate or precision cleaning, choose a pulse laser cleaner.

 Intended Use: Industrial and commercial — automotive, steel structures, machinery, floor, wall etc. Not suitable for food, drug, or other regulated industries.

 Continuous Wave (CW) Laser Cleaning Machine is designed for effective removal of paint, oil, and rust from metal surfaces. It operates by using high-energy laser beams to continuously ablate contaminants from the substrate.

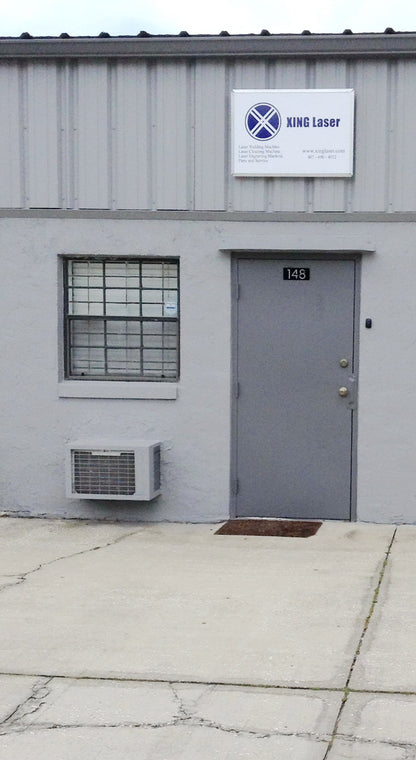

🏭 About XING Laser
