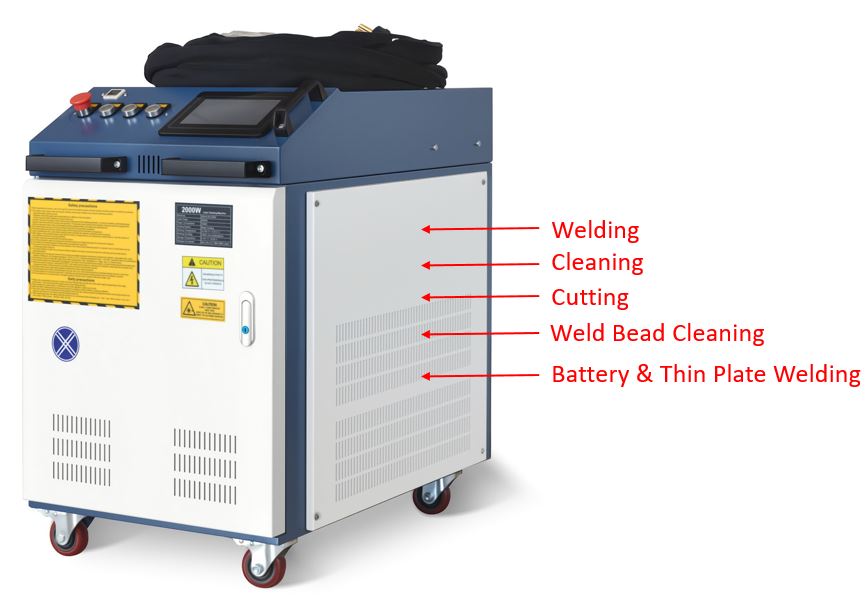

1500W Industrial Handheld CW Laser Welder Laser Welding Machine 5-in-1 Water Cool - Battery Welding

Machine Specifications
Machine Dimensions: 36 in × 38 in × 35 in
Machine Weight: 200 lbs Wire Feeder
Dimensions:9.5 in × 22.5 in × 16.5 in
Wire Feeder Weight: 33 lbs

Technical Parameters
Unit Conversions:
1 inch = 25.4 mm
°C = (°F − 32) × 5/9
Laser Source:
1080 ± 5 nm fiber laser
Laser Output Power:
1500 W
Facility Power Requirements:
220 V AC ±10%, 50/60 Hz
Power Input & Consumption:< 7.5 kW
Generator Requirement (if used): Minimum 17.5 kW continuous running power (dedicated supply required)
Cooling System: Water-cooled
Cable Length (Base Unit to Head): 30 ft (approx. 9 m)

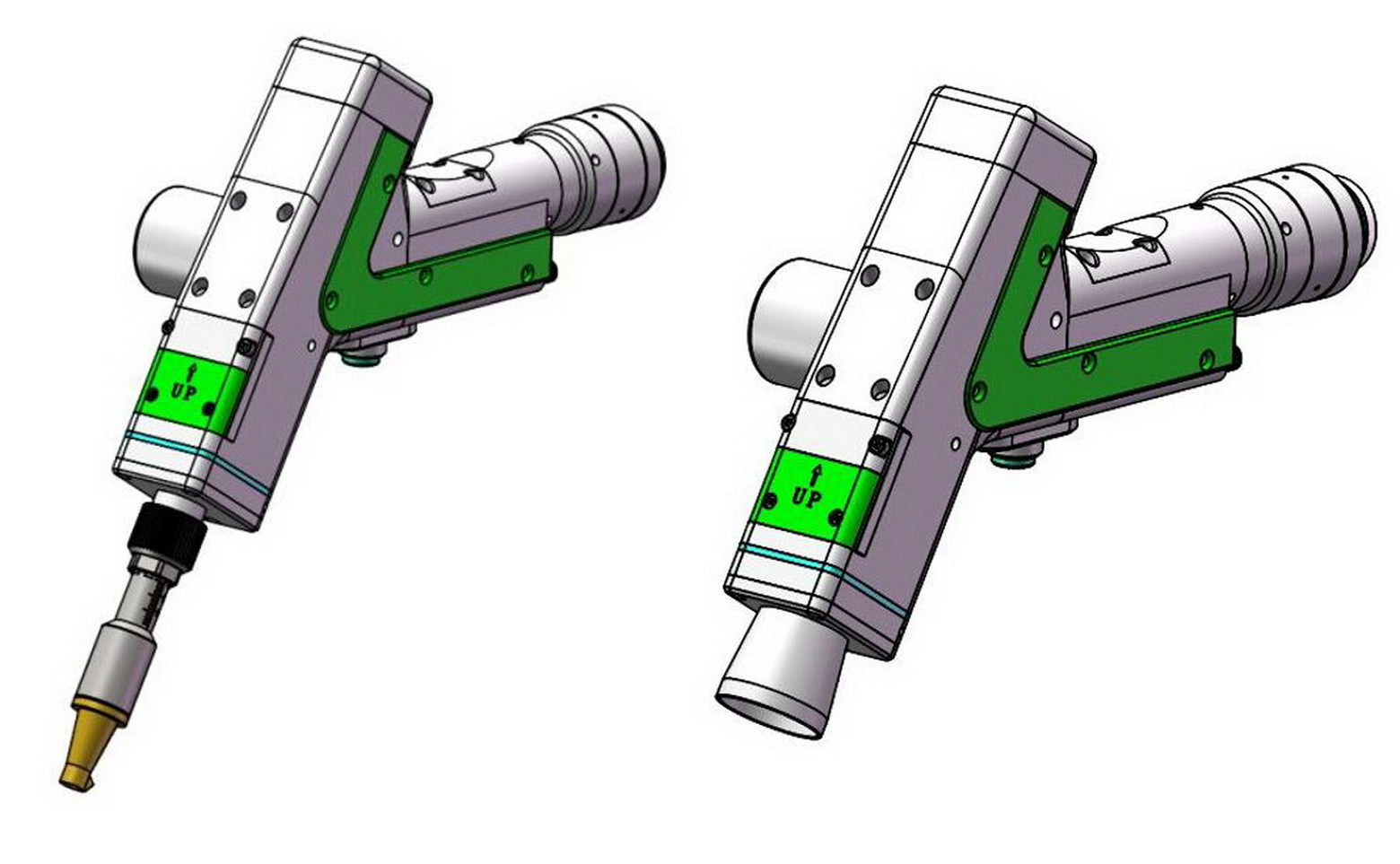

Welding Head Gun: 1.6 lb handheld single-axis wobble welding gun with user-changeable nozzles
Wobble Length: Up to 5 mm
Recommended Welding Gap: < 2.0 mm
Welding Performance (Steel / Aluminum):Up to 4.5 mm at optimal welding speed
Maximum depth of 5.5 mm at reduced speed
Rust Removal Scan Width: 10–110 mm
Welding Seam Cleaning Width: ≤ 12 mm
Shielding Gas: Argon or Nitrogen or C02 or combined
Maximum Input Working Pressure: ≤ 1 MPa
Storage Temperature:  5–131 °F (−15 to 55 °C)
Operating Temperature: 32–105 °F (0–40 °C)
Humidity: 5–85% (non-condensing)

Welding Wire Compatibility
1.0–1.5 mm parent material: 0.8 mm wire
2.0–2.5 mm parent material: 0.8–1.0 mm wire
3.0–3.5 mm parent material: 1.0–1.2 mm wire
4.0–5.0 mm parent material: 1.0–1.6 mm wire
Wire Spool Weight Supported: 2 lbs – 30 lbs

Safety
Laser Classification:
Class 4 Laser Device
Safety Requirement:
Customer must follow ANSI Z136.1 laser safety standards.
Electrical Requirements
Voltage:
220 V ±10%, AC 60 Hz, Single Phase
Compatibility:
Fully compatible with 240 V single-phase power created by two 120 V hot wires 180° out of phase.
Included Accessories & Parts

Single Wire Feeder Machine Accessories:
Protective Lens D25-T2 × 10 pcs
Cleaning Function Protective Cover
Cleaning Function Focus Component F800 (lens included)
Welding Head Gun Nozzles: E0.8 mm, E1.0 mm, E1.2 mm, E1.6 mm, H-Cut
Welding Seam Cleaning Nozzle
Wire Feeding Head Pipe
Wire Feeding Pipe Head Nozzles: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
Shielding Gas Pipe
Wire Feeding Rollers:

0.8 mm & 1.0 mm (double-sided)
1.2 mm & 1.6 mm (double-sided)
(Total: 4 rollers; 2 pre-installed on the wire feeder)

Intended Use & Support
XING Laser welding machines are designed exclusively for industrial applications, including automobile manufacturing, metal fabrication, and large-scale steel production.
These machines are not intended for use in food processing, pharmaceutical production, or other regulated industries.
For technical support, warranty service, or product inquiries, customers may contact XING Laser company support, which is consistent across all official commercial platforms.
