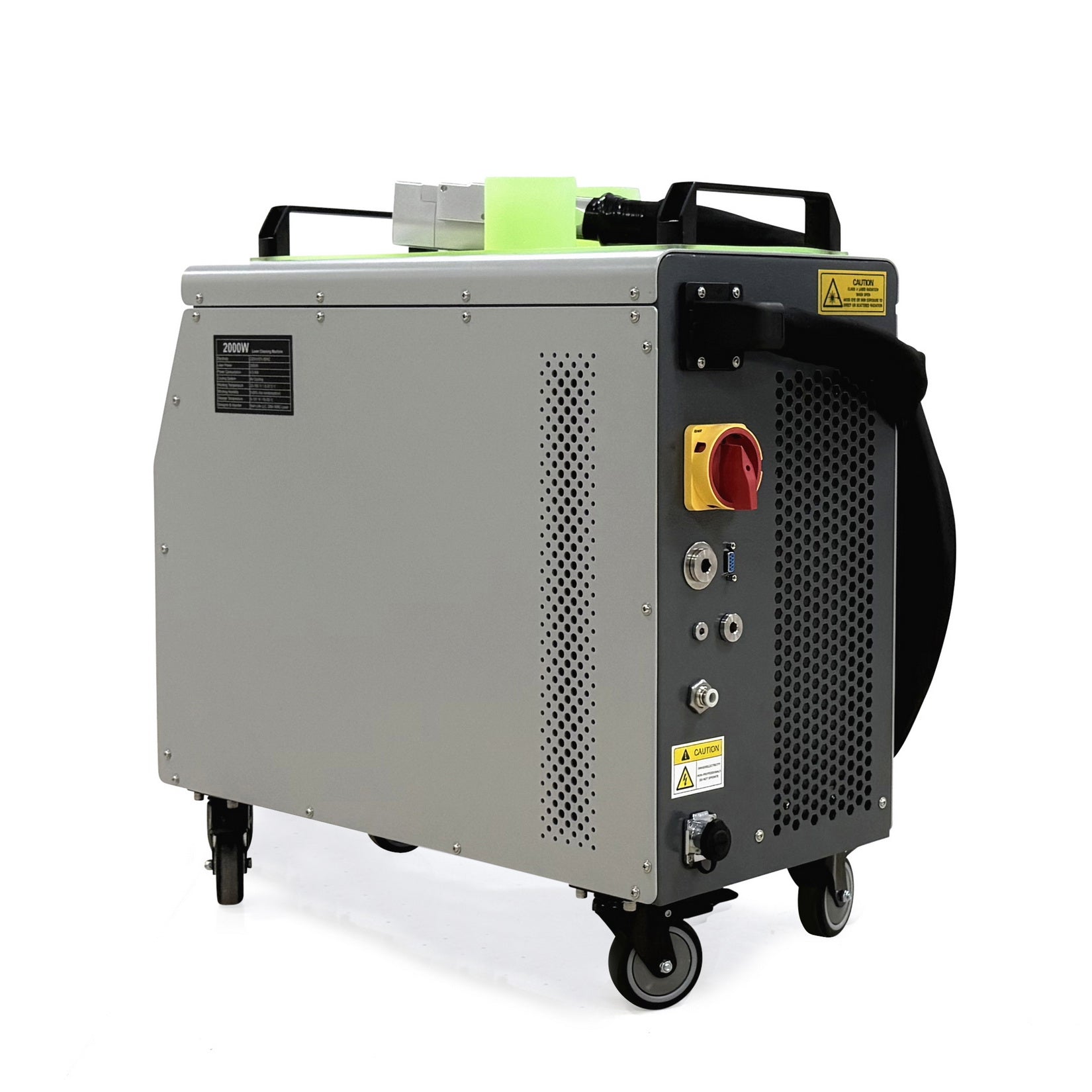

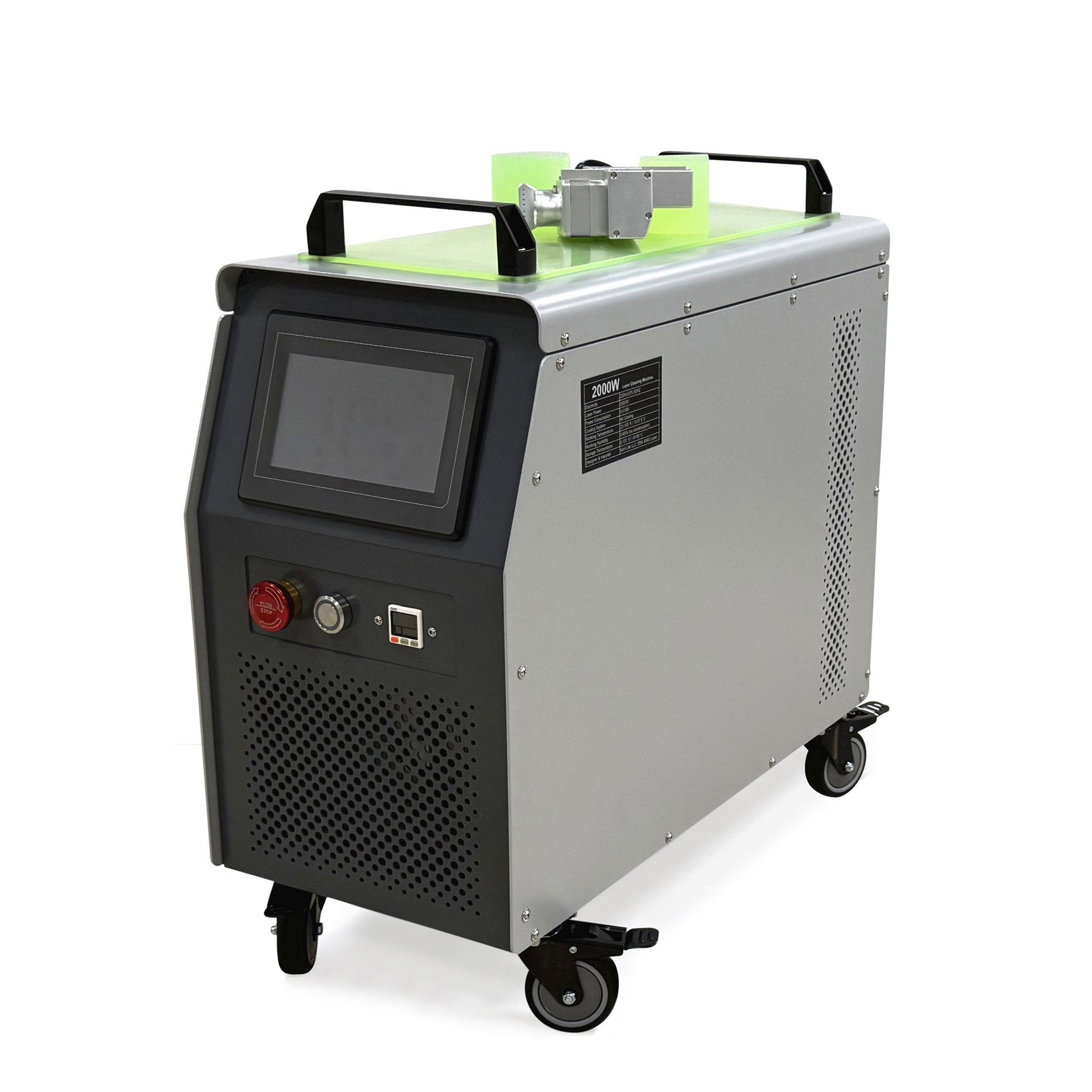

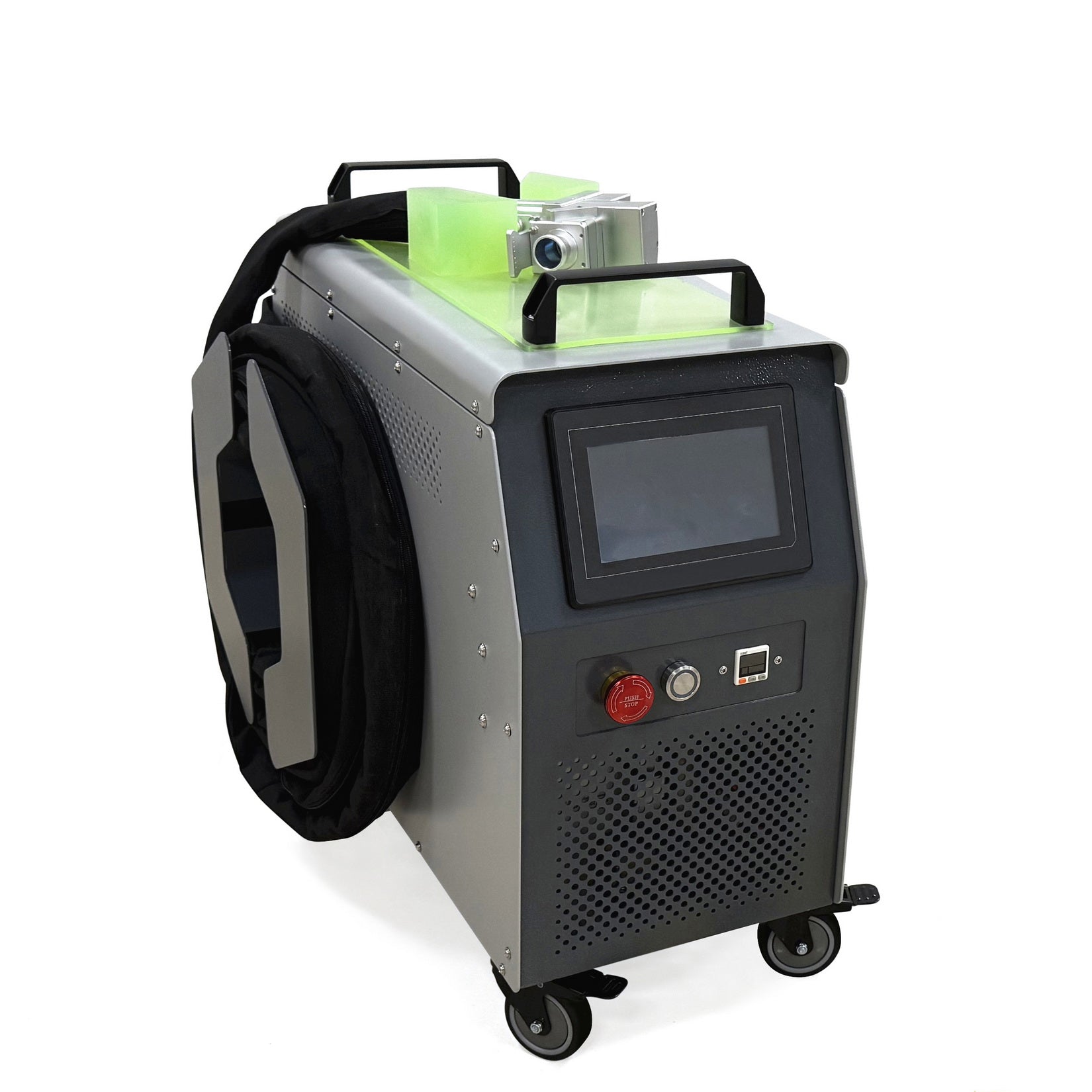

Handheld 2000W Laser Cleaning Machine – Rust, Oil & Paint Removal Tool - Air Cool

General Description

The 2000W double-pendulum laser cleaning machine is a high-power fiber laser system designed for efficient rust, paint, oil, oxide, and coating removal. Using a dual-pendulum scanning head, it provides faster cleaning speeds, wider coverage, and more uniform results compared to standard CW cleaning machines.

Machine Details

• Dimensions: 24.5 × 23.5 × 12.0 in (622 × 597 × 305 mm)
• Weight: 100 lbs. (45.4 kg)

Laser Parameters

• Laser Source: 1080 ± 5 nm fiber laser
• Output Power: 2000 W
• Cooling System: Air cooled
• Cleaning Head Gun: 1.6 lb handheld wobble head gun
• Cable Length (Base Unit → Head): 30 ft (≈ 9 m)
• Scan Models: Six scan shapes
• Scan Length/Width: Shape (filled area) modes → up to 200 × 140 mm ≈ 7.9 × 5.5 inches coverage; Straight line mode → up to 300 mm ≈ 11.8 inches long

Power & Electrical

• Input Power / Consumption: <  5 KW
• Facility Requirements: 220 V AC ± 10%, 50/60 Hz
• Generator (if have) solely power supply required minimum 12.5 KW - running power

Operating Conditions

• Storage Temp: -15 to 55 °C (5 to 131 °F)
• Operating Temp: 0 to 40 °C (32 to 105 °F)
• Humidity Range: 5 – 85% (non-condensing)

Safety

• Laser Class: Class 4 (Dangerous if not properly shielded)
• Compliance: Follow ANSI Z136.1 laser safety standards (requires PPE, interlocks, controlled work area)

Included Accessories

• Protective lens
• Air compressor pipe OD 8mm, 10mm
• Face Shield

Additional Supplies Required

To operate safely and effectively, you will need:

1. Air compressor machine – recommend 6 gallon 150 PSI type
2. Industrial-grade air dryer filter (4 – 5 stages) to remove oil and contaminants from compressed air

⚠️ Important Safety Notes:

• Always wear appropriate laser safety goggles (1080 nm rated).
• Operate in a restricted area with proper signage and barriers.
• Ensure compressed air is clean and dry to prevent damage to optics and ensure consistent cleaning performance.
