XING Laser Machines

2000W Laser Cleaning Machine Laser Rust Remover Laser Cleaner Laser Rust Removal Machine Laser Paint Removal

2000W Laser Cleaning Machine Laser Rust Remover Laser Cleaner Laser Rust Removal Machine Laser Paint Removal

Regular price $8,100.00
Regular price $12,150.00 Sale price $8,100.00
Sale Sold out
Shipping calculated at checkout.
Stock Status

Expected delivery time around July 4th, 2024




Please note:

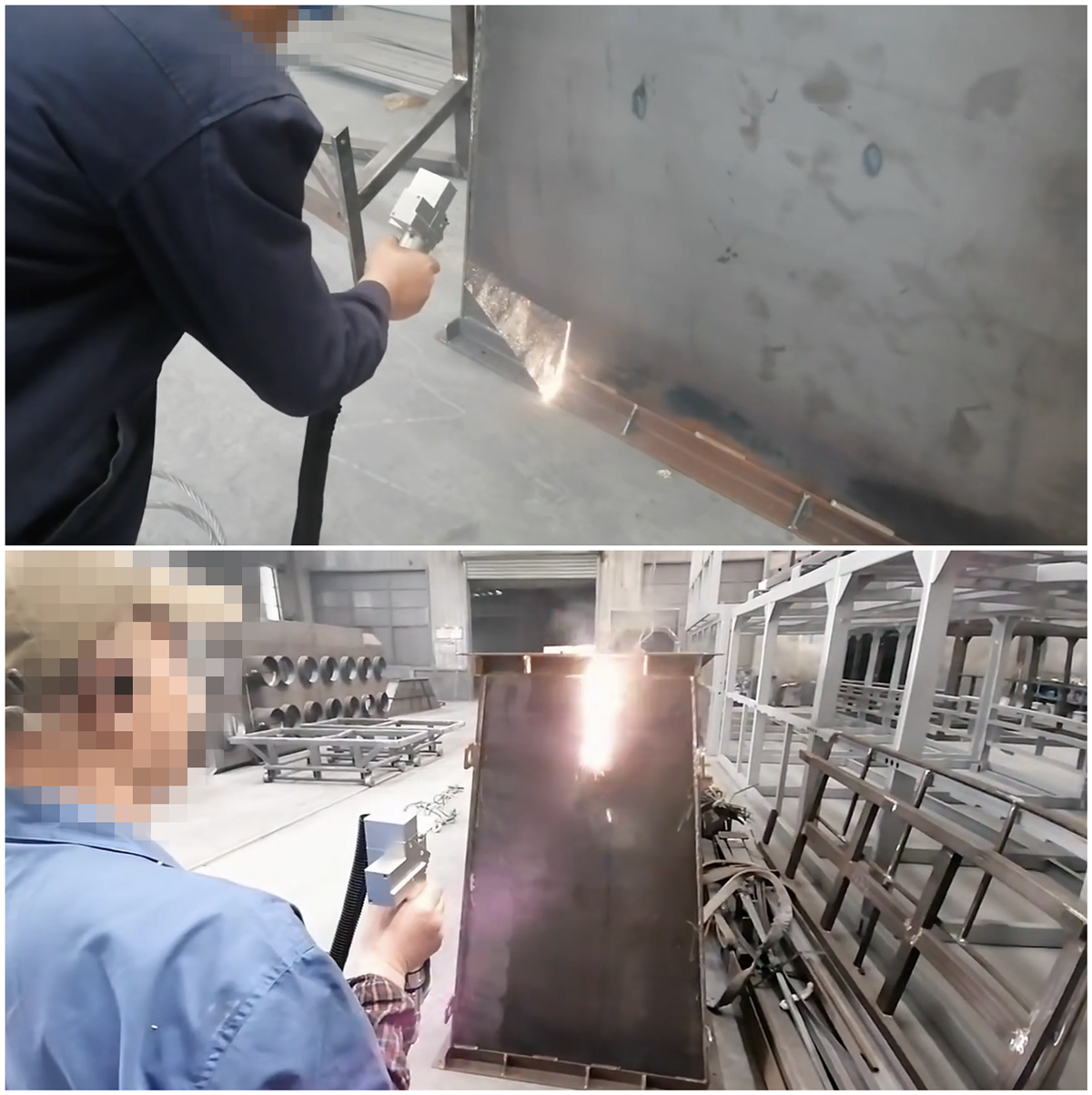

  • This is a CW laser cleaning machine. It is suitable for cleaning paint/oil/dust/rust layers on metal surfaces. The principle is to use the high energy of laser to continuously ablate the attachments on the metal surface and remove them. Therefore, this cleaning method will accumulate a large amount of heat on the surface of the workpiece. It is not suitable for cleaning thin plates that are easily deformed by heat, nor is it suitable for cleaning the surface of precision instruments. It is most suitable for rust/paint/oil/dust removal of steel structures, I-beams, large steel equipment casings, outer walls of large steel pipes, thick steel (thickness above 2mm), or pretreatment before painting.
  • To remove rust, dust, oil, paint, etc. from precision parts, you need to choose pulse laser cleaning equipment.
    If you need it, please contact us.  we can provide you with more suggestions, as well as customized production services.

Machine features:

  • Professional laser cleaning machine
  • Scanning width up to 200 mm.
  • Real-time shielding gas pressure monitoring avoids damage to the whole system when running out of shielding gas.
  • The built-in but independent chiller gives the machine have stronger cooling capacity, and can work continuously all day long. And also makes the maintenance of the machine much easier.
  • Non-contact cleaning. Widely used for large area rust removal and oil,paint cleaning of metal material
  • Upgraded laser cleaning head lens protective cover, lightweight and easy to use. Dual vibrating lenses enable the laser beam to have multiple motion trajectories.

Dimensions (W x D x H):

  • Machine:20.0 x 30.0 x 28.0 inches

Weight:

  • Machine:1500w/90kg, 2000w/100kg,  It is NOT a mobilized machine.

Parameters

  • Laser Source:  2000w 1080±5 nm fiber laser
  • Power In & Consumption:
    • 1500W Laser < 7.0 KW
    • 2000W Laser < 8.5 KW
  • Cable Length: From Base Unit to Head: 9 m (29 ft)
  • Cooling System:  Water Cooling
  • Cleaning Head Gun:  1.6 lb handheld Wobble head Gun
  • Operating Environment:
    • Storage temperature 5-131 ℉/ -15-55 ℃
    • Operating temperature 50-95 ℉ / 10 - 35 ℃
    • Humidity 5-85% (no condensation)
    • Coolant:  Pure Water or Anti-freeze Coolant
    • Safety: Class 4 Laser Device. The customer is responsible for standard ANSI Z136.1 safety precautions.
    • Facilities Electrical Requirements: 220±10% V AC、50/60Hz

    Accessories:

    • Protective Lens x5
    • Laser Safety Glasses x1

    Shipping:

    Warranty & Guarantee :

    Order professional handheld laser rust remover from XING Laser. It can be widely used as rust cleaner and and laser paint removal tool in sheet metal processing, machinery repair, engineering mold repair and other industries.
    XING Laser (6am Life LLC, DBA XING Laser) specializes in the development, manufacture and sale of handheld laser cleaning machine and laser rust removal machine.
    We are committed to providing the most cost effective and reliable laser equipment and services to our customers.
