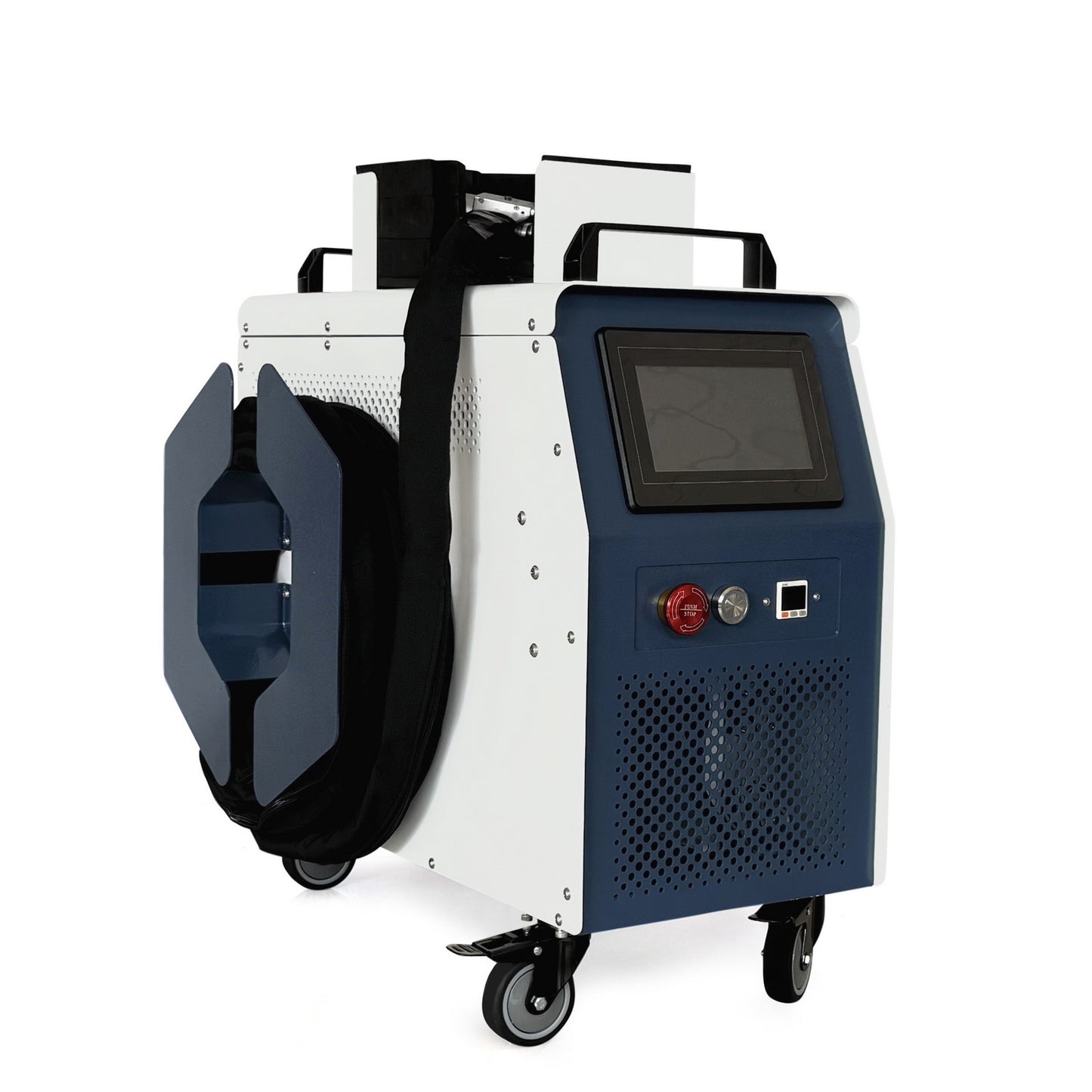

500W Pulse Laser Cleaning Machine Metal Rusty Paint Removal - Air Cool - 110V

Pre-Order - 6 Weeks Delivery

Pulsed laser cleaning is currently the laser cleaning method that minimizes damage to the base material surface. It does not cause high temperatures in the base material during cleaning.

Therefore, it is suitable for:

Removing stains, rust, and paint from wood surfaces
Removing stains, rust, and paint from thin metal sheets
Removing stains, rust, and paint from precision fittings

There are many types of pulsed lasers. Even lasers with the same power can differ in pulse width, single pulse energy, frequency, internal lenses, system parameters, and after-sales support.

The videos shown on this product page are representative only of this product. They should not be used as a reference for other machines with the same appearance, similar accessories, or the same laser power.

We guarantee that these videos were filmed by us and that this machine can achieve the same cleaning results shown in the videos.

Specifications

Machine Dimensions：24.5"" × 23.5"" × 12.0""
Machine Weight: 85 lbs
Focus distance: 36 cm, around 14.2 inches
Laser frequency adjustment range:1-4000 kHz
Laser pulse width: 30-500 ns
Laser wavelength: 1060-1080nm;
Laser Output power: 500W
Cable Length: From Base Unit to Head: 10 m
Cooling System: air Cooling
Cleaning Head Gun: 1.6 lb handheld Wobble head Gun
Storage temperature 5-131 ℉/ -15 -55 ℃
Operating temperature 32-105 ℉ / 0-40 ℃
Humidity 5-85% (no condensation)
Maximum input working pressure ≤1Mpa.
Machine Power In Consumption:2.0 KW
Input current：18A
Cooling System: Air Cooling
Cleaning Head Gun: 1.6 lb handheld wobble head gun
Storage Temperature: 5 to 131 Fahrenheit. (-15 to 55 Celsius)
Operating Temperature: 32 to 105 Fahrenheit. (0 to 40 Celsius)
Maximum Input Working Pressure: Up to 1 MPa
Safety: Class 4 Laser Device. Customer responsible for following ANSI Z136.1 safety precautions.
Electrical Requirements: 110 + / - 10% V AC, 50/60Hz

Accessories

8 mm and 10 mm OD Air Pipes
Aluminum Stabilizing Frame
Flexible Side Air-Blow Pipe
D48-3 Protective Lenses (10 pcs)
Safety Glasses
Allen Wrench Set
Non-Stick Tape
Machine Dust Cover Bag
Face Masks
