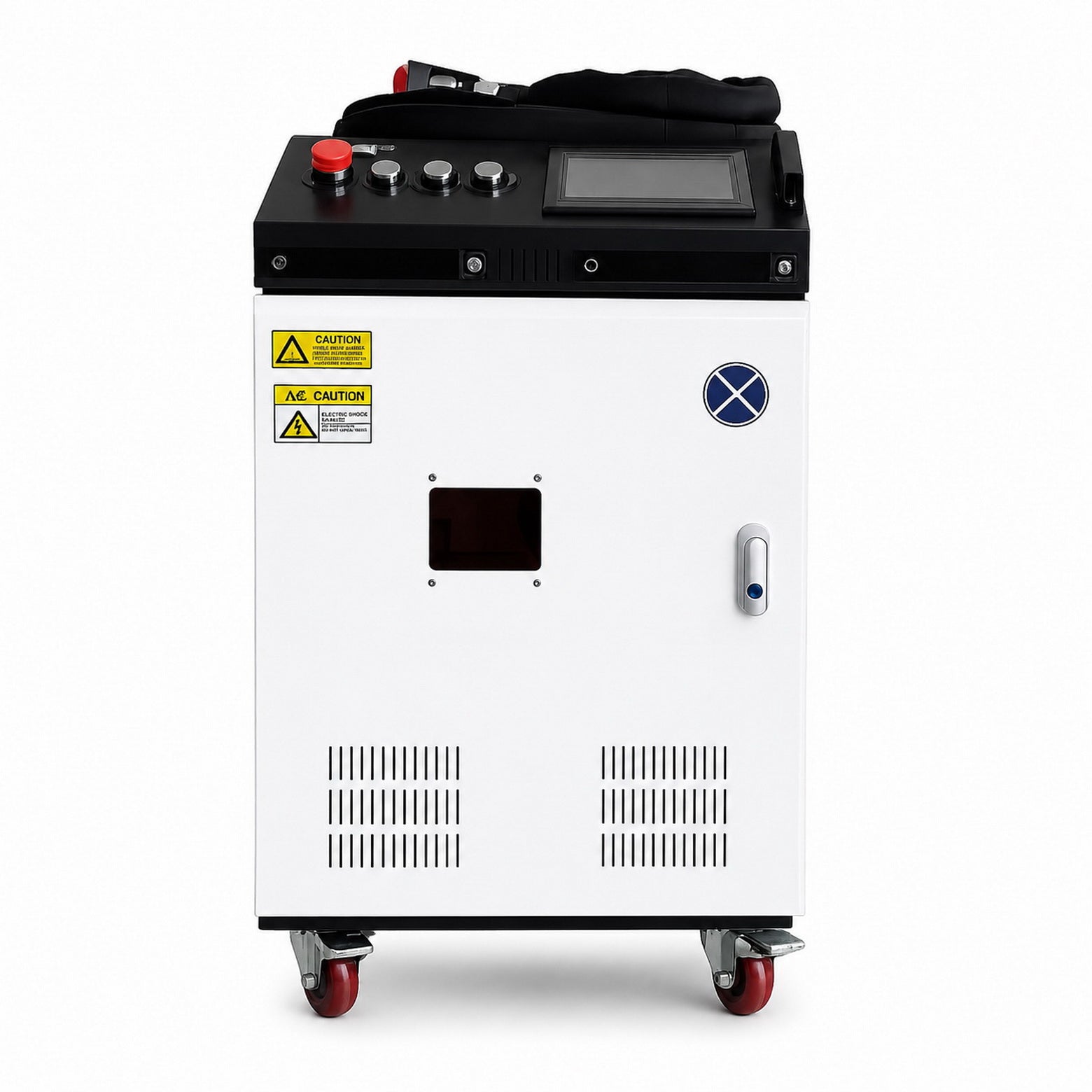

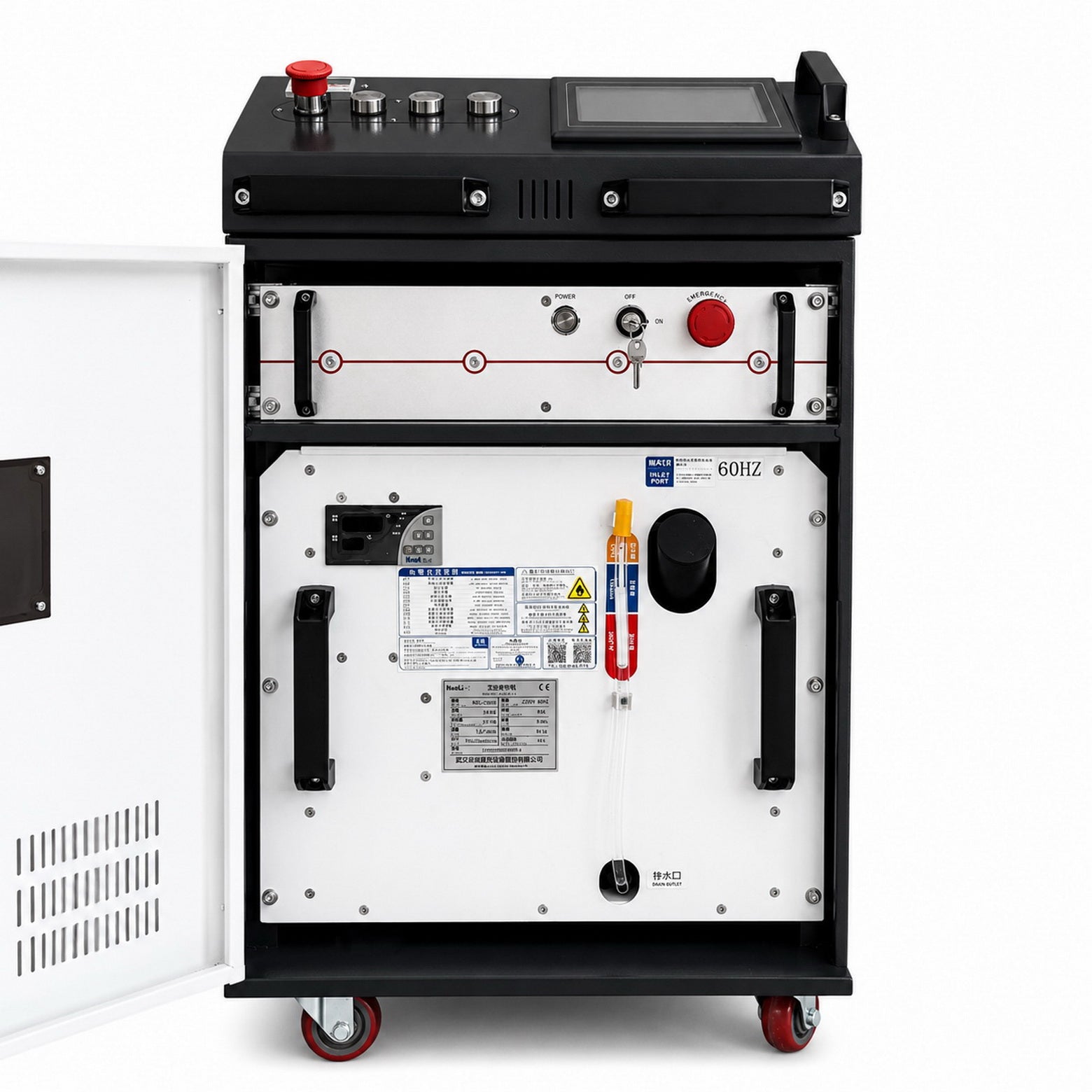

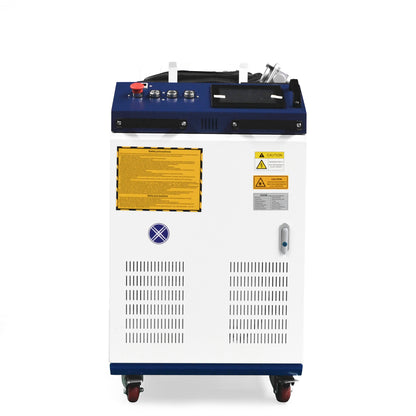

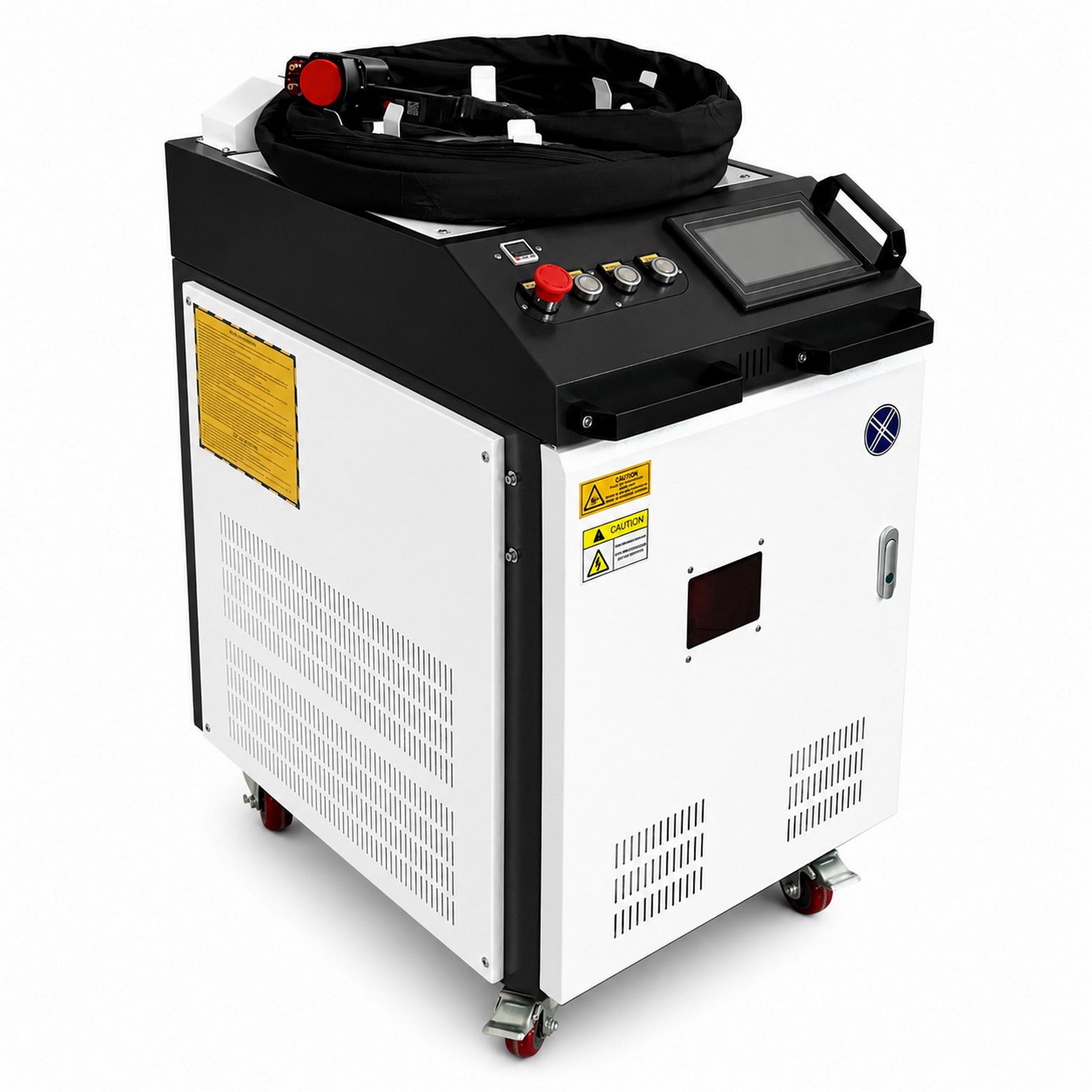

500W Pulse Laser Cleaning Machine Rust Removal For Paint Removal Water Cool

$14,500.00 USD

~~$30,000.00 USD~~ $14,500.00 USD

Sale Sold out

Shipping calculated at checkout.

Introduction

We are a small business dedicated to manufacturing high-quality laser welding machines, laser cleaning machines, and related equipment for customers across the United States and worldwide. Our customers range from hobbyists and collectors to automotive shops and large industrial facilities.

Product Overview – 500W Pulsed Laser Cleaning Machine

Pulsed laser cleaning is currently one of the laser cleaning technologies designed to minimize damage to the surface of the base material.

Because the process minimizes heat transfer to the substrate, it is suitable for applications including:

Removal of stains, rust, and paint from wood surfaces
Cleaning of thin metal sheet surfaces
Surface treatment of precision parts and fittings

Different pulsed laser systems may vary significantly—even when rated at the same power level. Performance can differ based on pulse width, single-pulse energy, frequency settings, optical components, internal system calibration, and after-sales support.

Machines with similar appearance or accessories may not deliver identical performance.

The videos shown on this product page represent this specific product only and should not be used as a performance reference for other machines with similar appearance, accessories, or power ratings.

We confirm that all demonstration videos were produced by our team and are intended to reflect the actual performance capability of this machine under similar operating conditions.

Specifications

Item	Specification
Machine Dimensions	22.0 × 33.5 × 35.5 in
Machine Weight	95 kg
Working Distance	36 cm
Single Pulse Energy	15 mJ
Laser Frequency Range	1–4000 kHz
Pulse Width	30–500 ns
Laser Wavelength	1060–1080 nm
Output Power	500 W
Power Consumption	< 4.0 kW
Power Input	220V AC ±10%, 50/60Hz
Cable Length (Base to Head)	10 m
Cooling System	Water Cooling

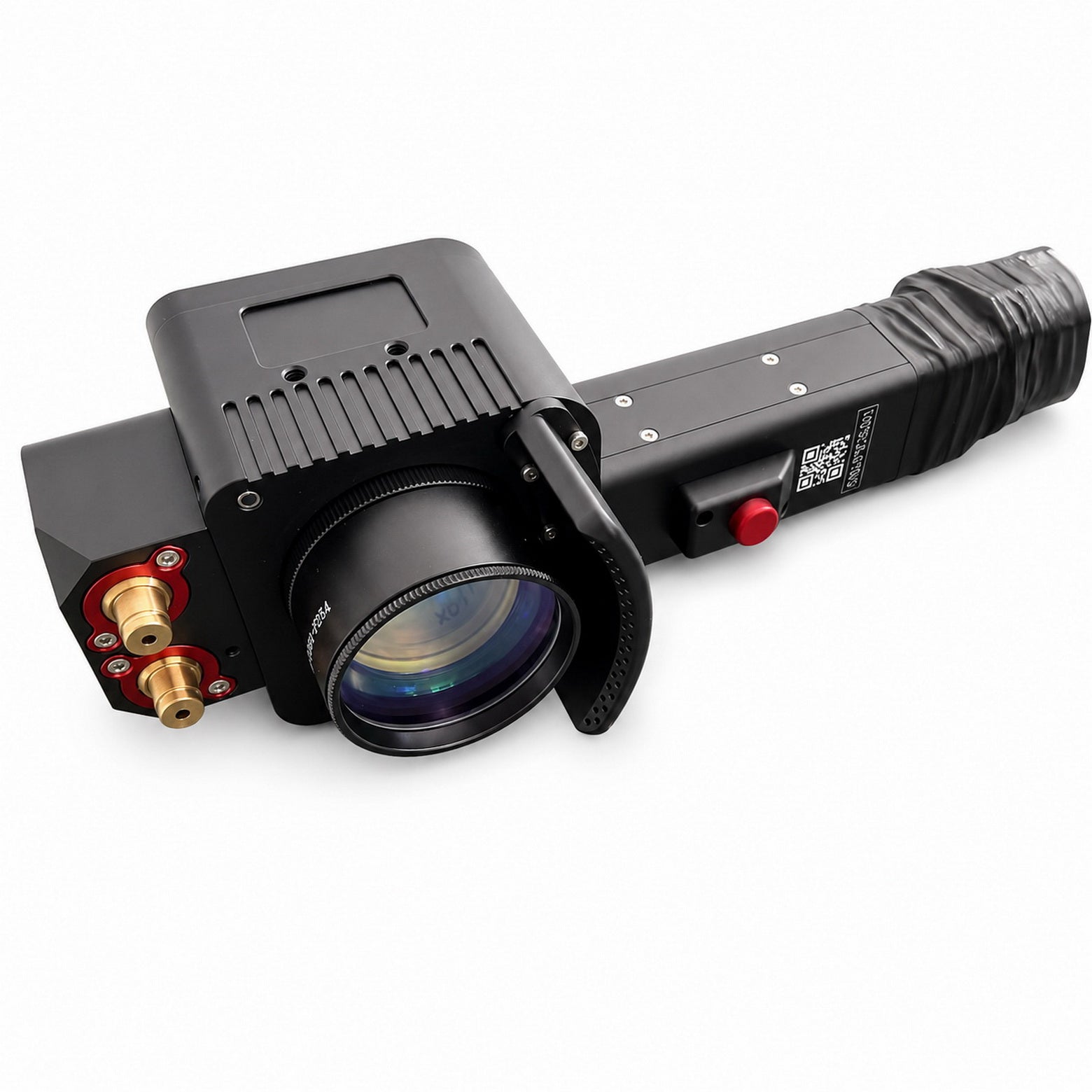

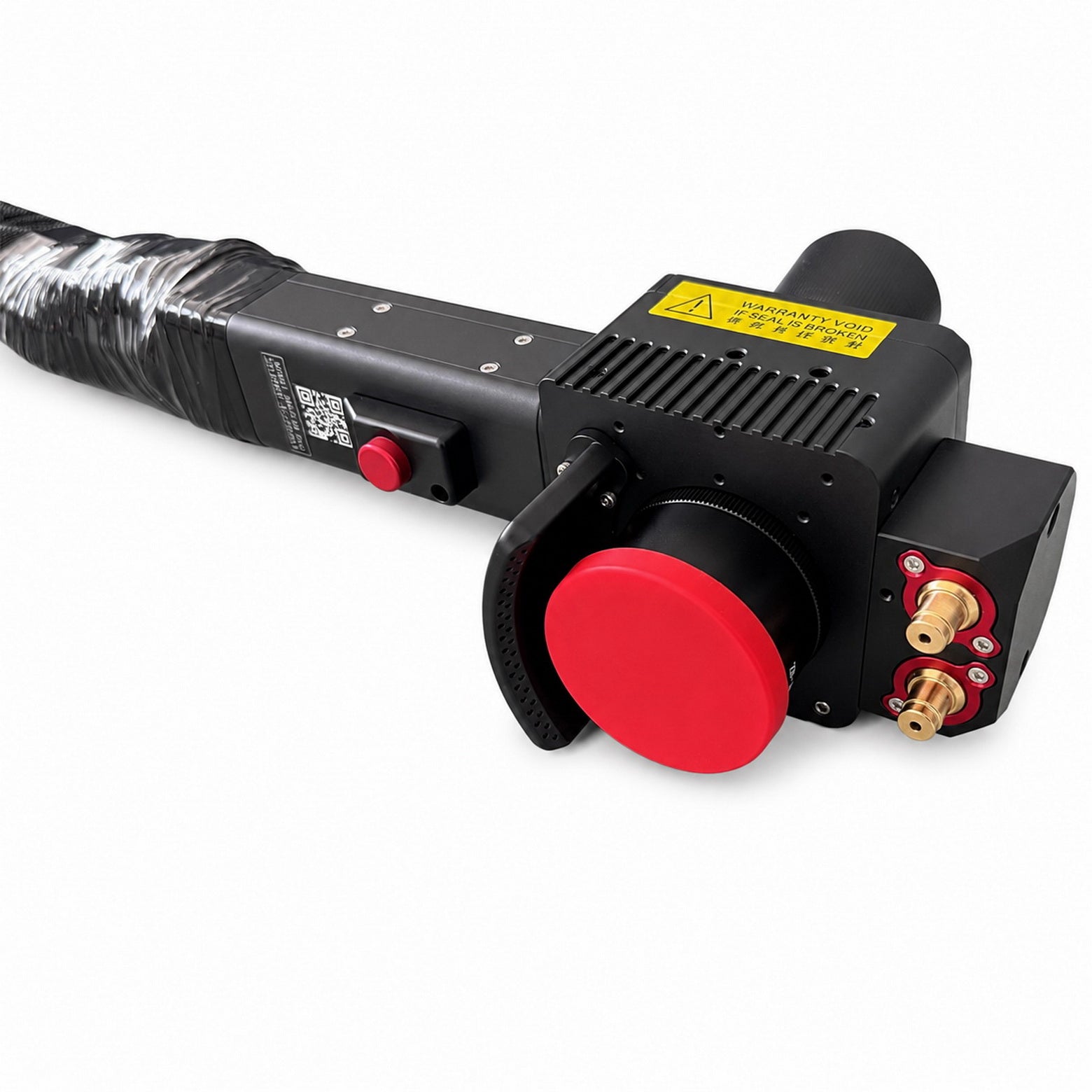

Cleaning Head	1.6 lb Handheld Wobble Head
Storage Temperature	5–131°F (-15–55°C)
Operating Temperature	32–105°F (0–40°C)
Operating Humidity	5–85% (Non-Condensing)
Coolant	Pure Water or Approved Anti-Freeze Coolant
Maximum Working Pressure	≤1 MPa

Safety Notice

Class 4 Laser Device

Operation of this equipment requires appropriate safety controls and procedures. Customers are responsible for complying with applicable laser safety requirements, including ANSI Z136.1 standards and any local regulations.

Professional training and proper personal protective equipment (PPE) are strongly recommended before operation.
