Lens for CQ Gun D18-T2 Protective Lens D20-F150 D20-F800 Focus Lens M30-14T2 Vib Lens

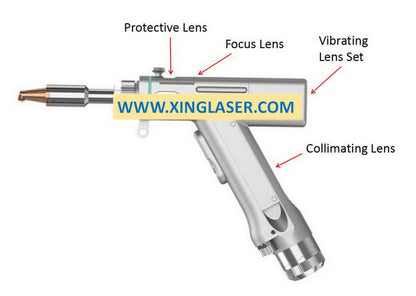

Lens Types & Details

• Protective Lens
• Model: D18-T2 – Protection to other lens
• Lens Diameter Codes ： D18 – Lens diameter: 18 mm
• Type: Flat lens on both sides
• Use: General protection during operation
• Installation Direction: No specific orientation required due to flat surfaces
• Usage & Replacement: Inspect or replace every 3–6 hours of continuous use.
• Note: Lifespan may vary depending on application intensity and environment

• Focus Lens

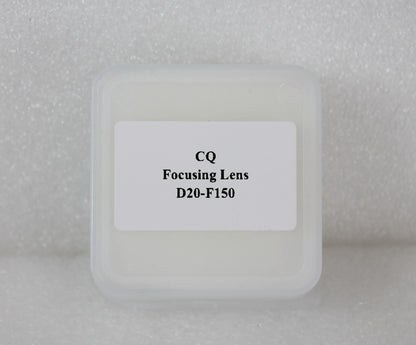

• Models:  CQ-D20-F150 – Used for welding
• Type: Plano-convex lens (one flat side, one convex side)
• Installation: Must be installed with correct orientation – the "V" mark points toward the rear of the laser gun
• Focus Distances: F150: 150 mm (approx. 6 inches)
• Lens Diameter Codes: CQ-D20 – Lens diameter: 20 mm
• Recommended Replacement: Every 60–120 days based on 4–8 hours of daily use. Replace sooner if contamination is visible or performance degrades

• Focus Lens

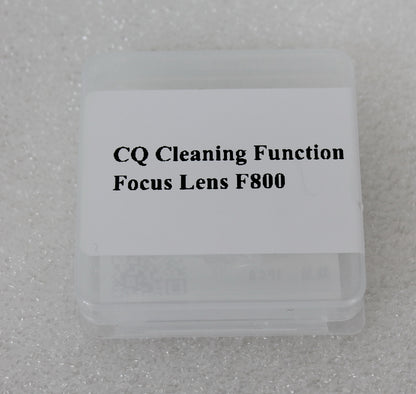

• Models: CQ-D20-F800 – Used for cleaning
• Type: Plano-convex lens (one flat side, one convex side)
• Installation: Must be installed with correct orientation – the "V" mark points toward the rear of the laser gun
• Focus Distances: F800: 800 mm (approx. 31.5 inches)
• Lens Diameter Codes ：CQ-D20 – Lens diameter: 20 mm
• Recommended Replacement: Every 60–120 days based on 4–8 hours of daily use. Replace sooner if contamination is visible or performance degrades

• Collimating Lens
• Model: CQ - D16-F50
• Type: Plano-convex lens
• Installation: Proper orientation required – "V" mark faces the rear side (toward the QBH head)
• Focus Distance: F50: 50 mm (approx. 1.96 inches)
• Lens Diameter Codes: D16 – Lens diameter: 16 mm
• Recommended Replacement: Every 6–12 months depending on usage conditions

• Vibrating Lens

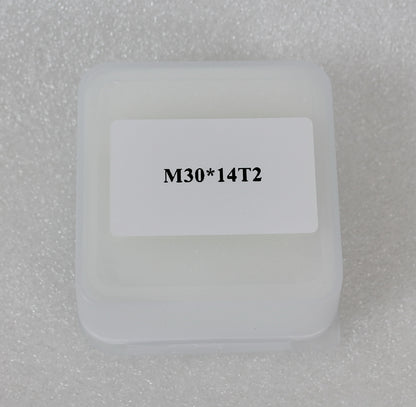

• Model: M30-14T2
• Mounting: Installed on a high-speed motor
• Note: Has a designated directional setup for proper operation
• Recommended Replacement: Every 6–12 months depending on usage conditions

Important Compatibility Notice:
These lenses are specifically designed for use with Xing Laser machine systems. Compatibility with other brands is not guaranteed.
