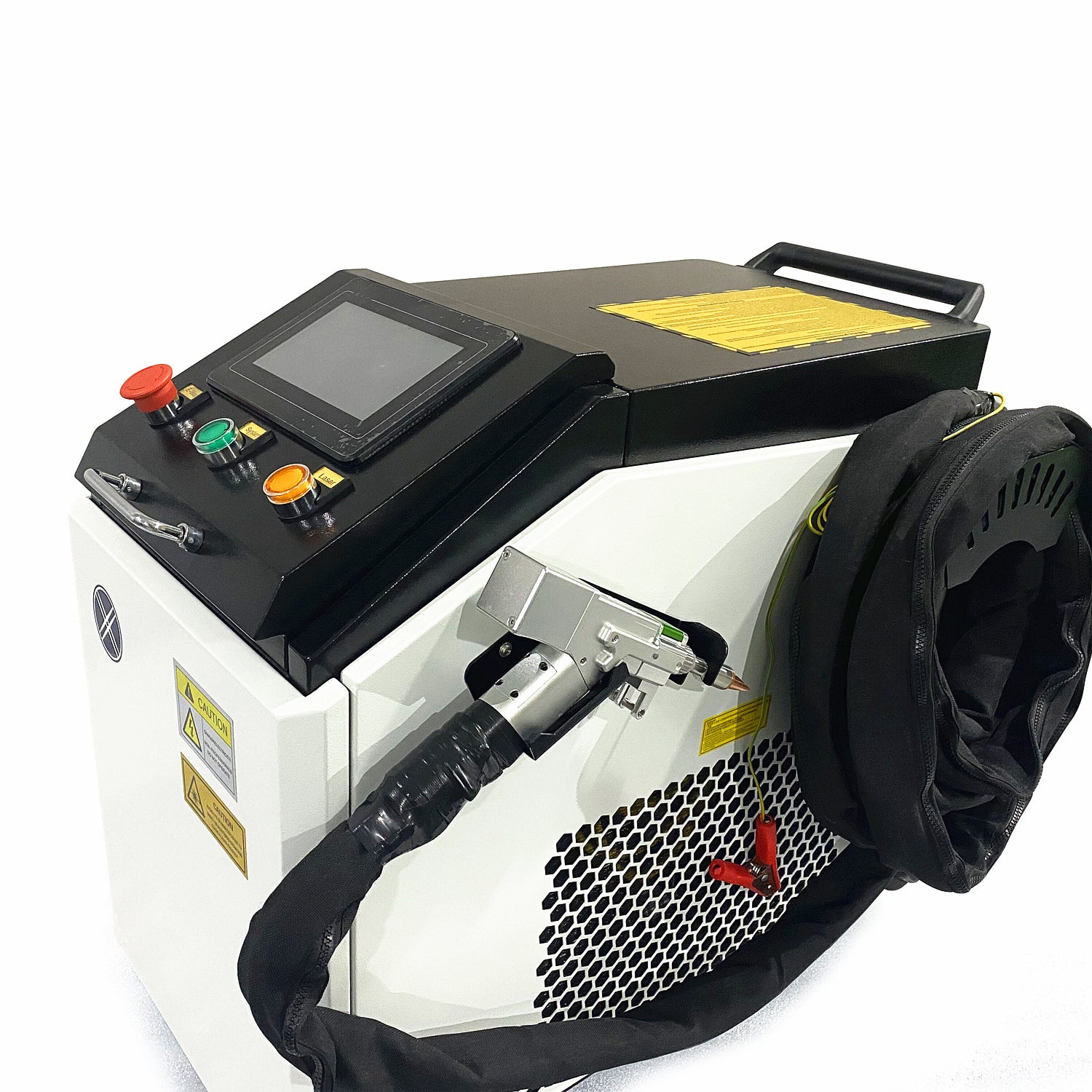

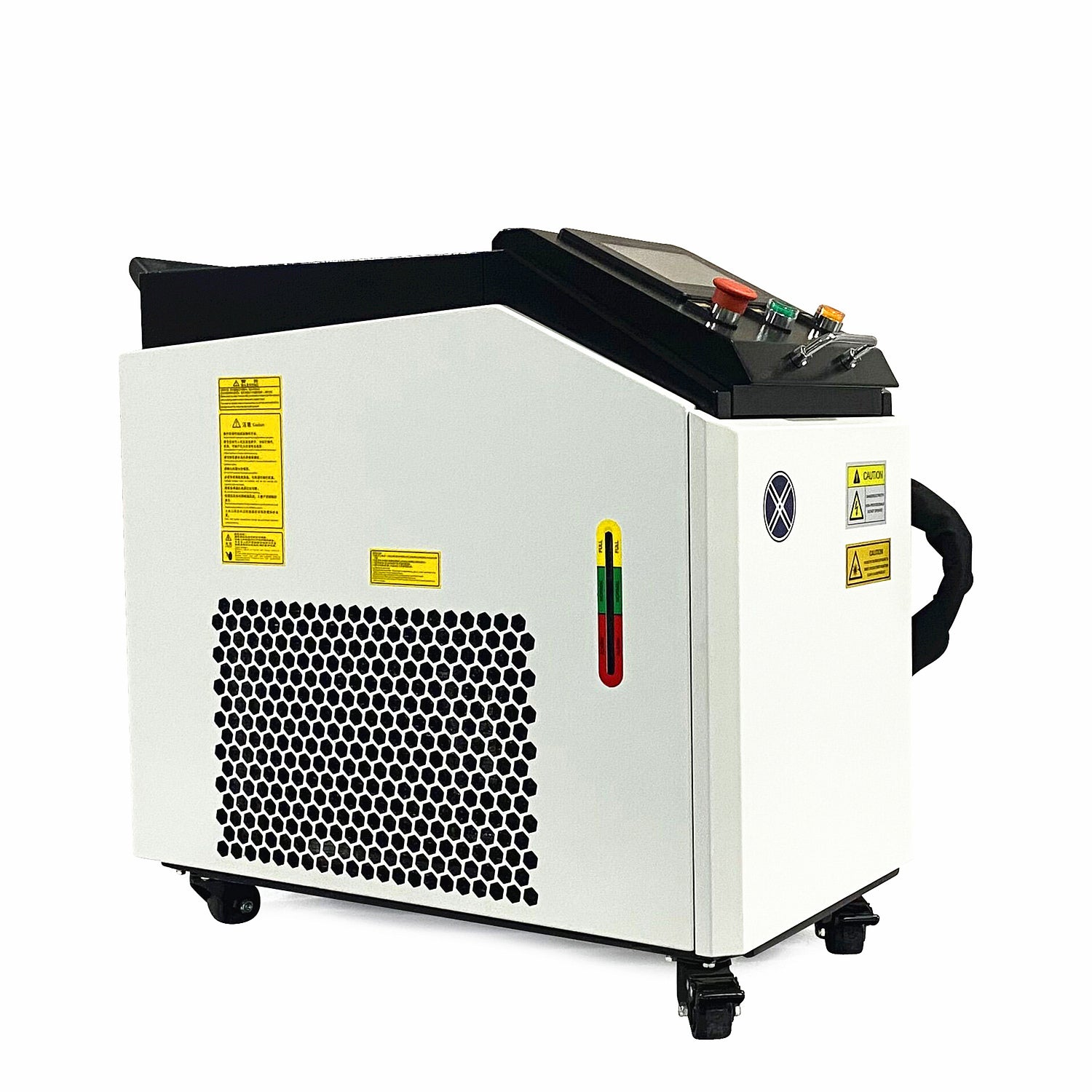

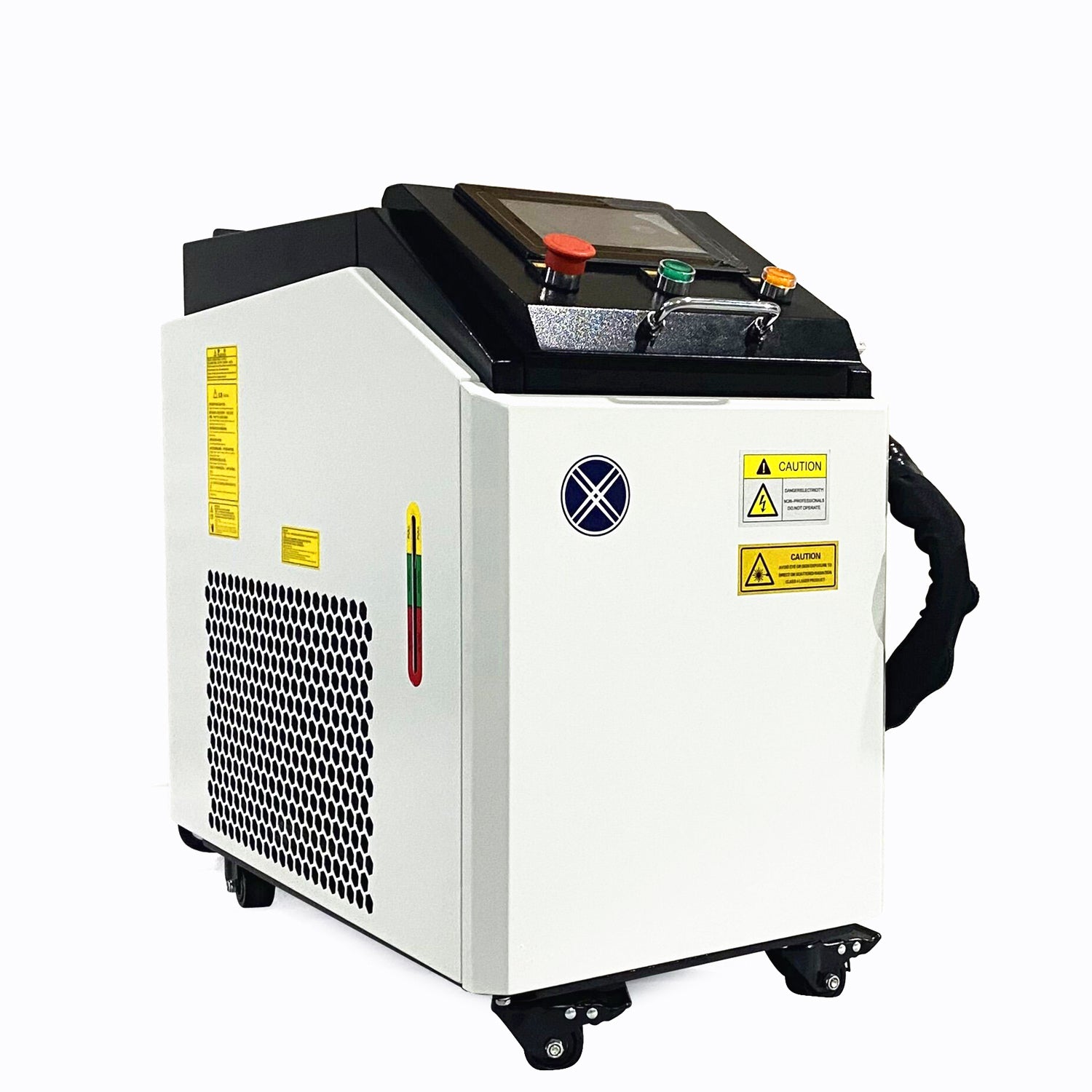

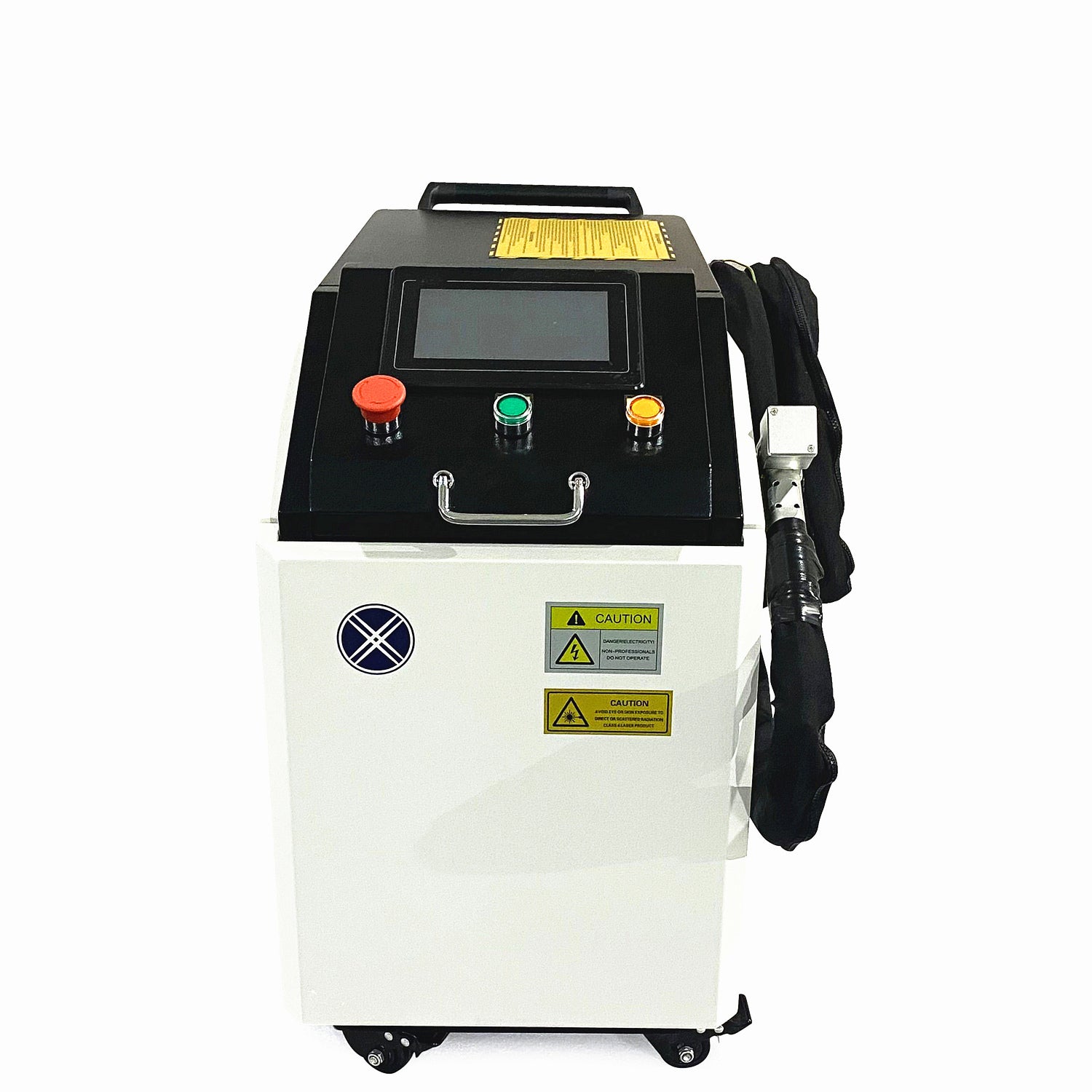

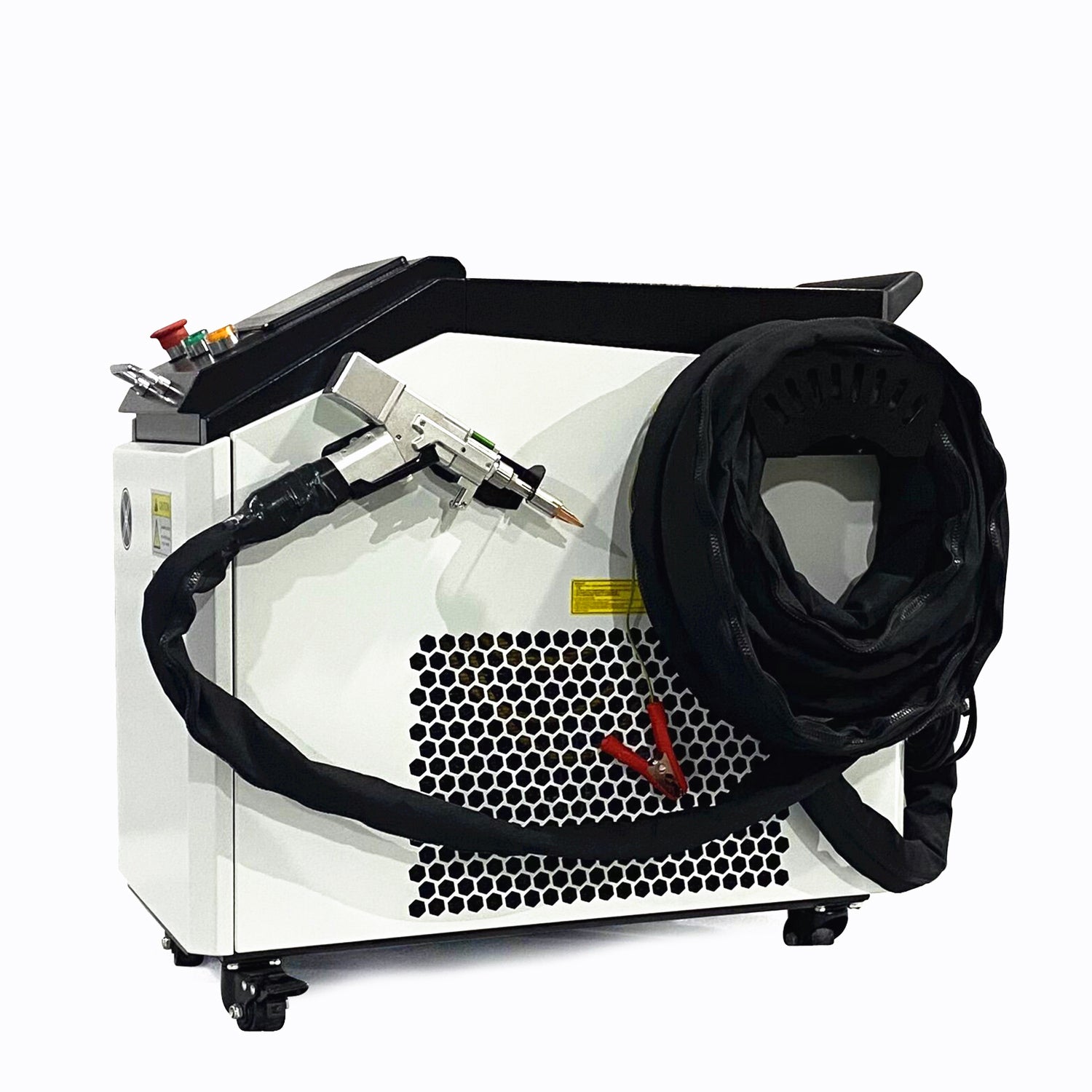

1500W Compact Handheld Laser Welder Laser Welding Machine Rust Removal Machine 3 in 1

1500W Compact Handheld Laser Welder Laser Welding Machine Rust Removal Machine 3 in 1

Regular price $1.00
Regular price $12,999.00 Sale price $1.00
Sale Sold out
Shipping calculated at checkout.
Laser Power

Machine features

  • 2x-4x faster than TIG
  • Wide range of materials
  • Easy to learn and use
  • Simple applications
  • Multifunction: welding, rust removal, cutting
  • Mature industry technology

Dimensions (W x D x H):

  • Welding Machine:28 * 27 * 16"

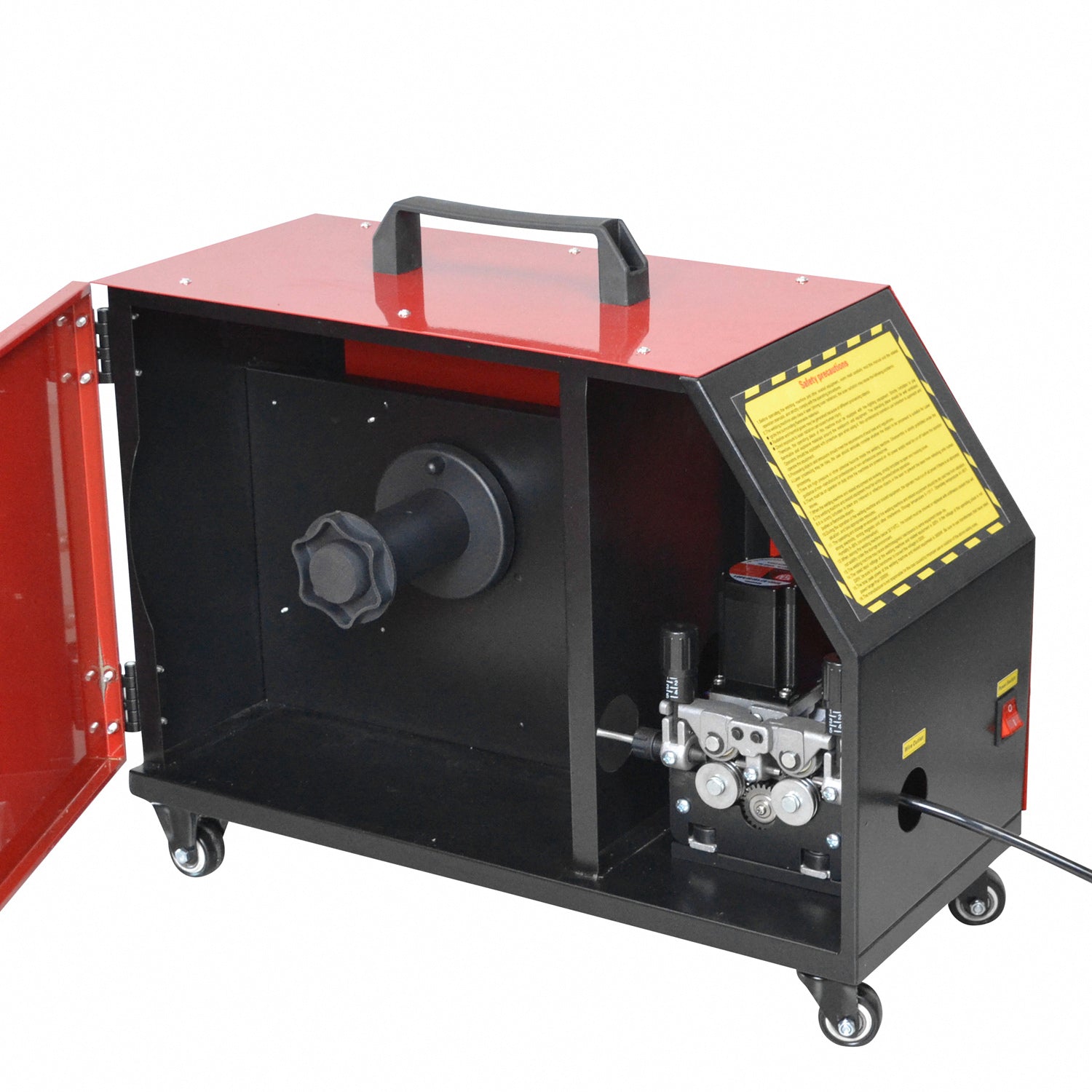

    Wire Feeder: 9.5 * 22.5 * 16.5"

    Weight:
    Welding Machine:1500 W / 183 lb.
    Wire Feeder: 33 lb.

    Function:

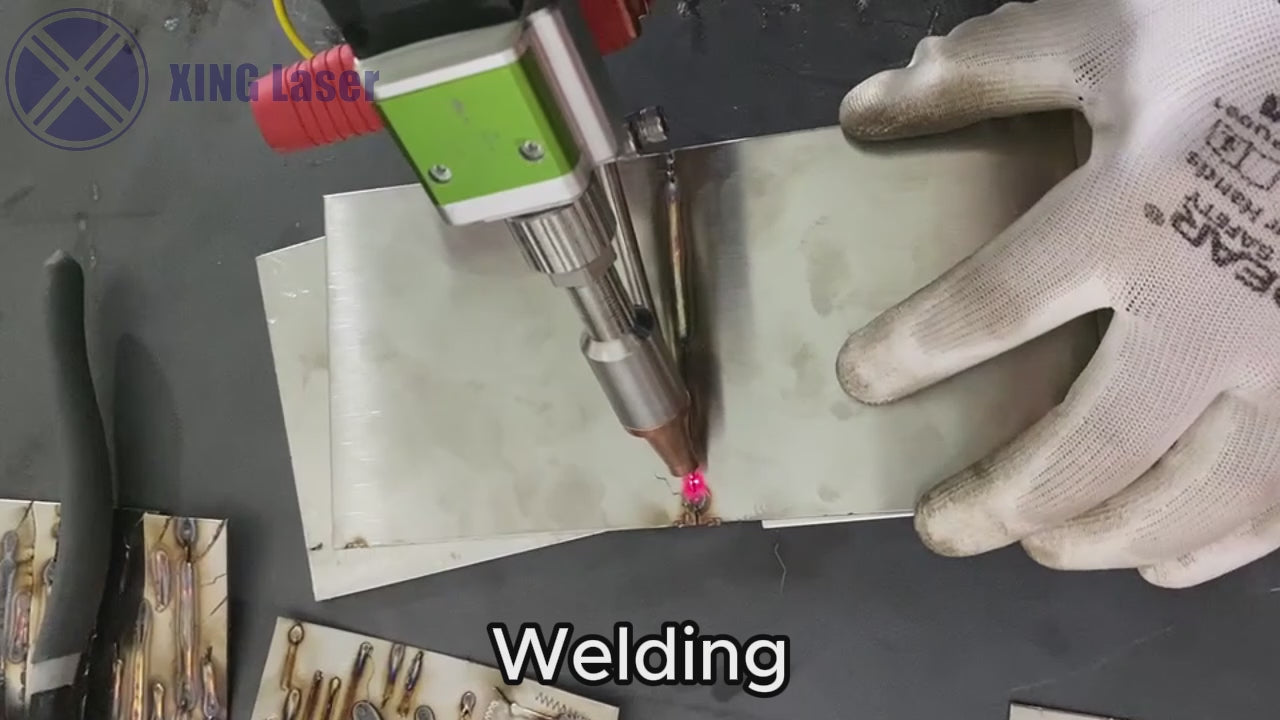

    • Metal Welding:Able to weld most metals such as stainless steel, aluminum, carbon steel, galvanized sheet, brass, bronze, titanium, alloys, etc.  Single-side, single pass material weld capability: Stainless steel, mild steel, galvanized steel, aluminum up to 4 mm by adjusting the parameters. Has good welding efficiency when welding materials within 3.0 mm thickness.
    • Rust Removal: Rust removal function can be achieved by replacing few parts of the handheld welding head gun.

    Parameters

    • Laser Source:  1500W 1080±5 nm fiber laser
    • Laser Output Power: 1500w
    • Power In & Consumption:
      • 1500W Laser < 7.5 KW
    • Cable Length: From Base Unit to Head: 9 m (29 ft)
    • Welding Speed: 0 - 40 mm/s

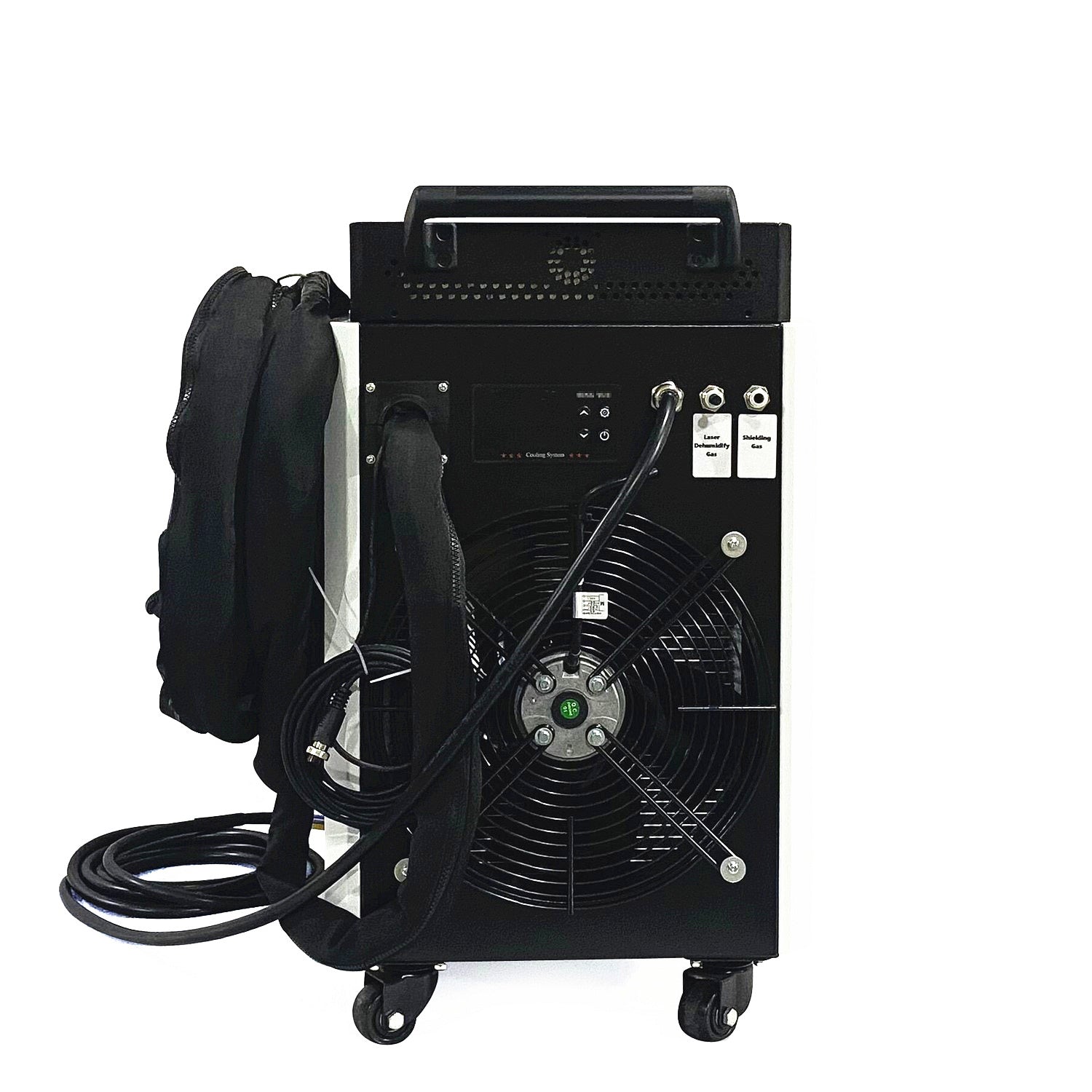

    • Cooling System:  Water Cooling

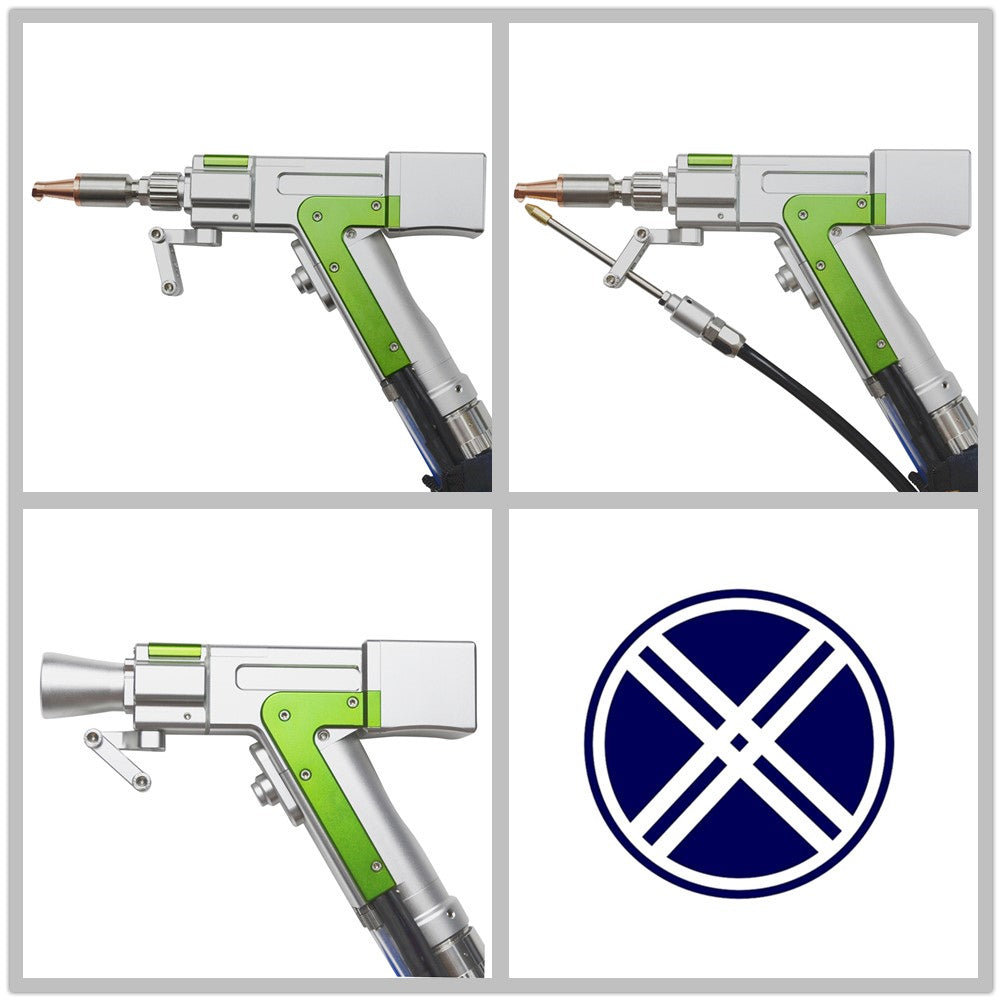

    • Welding Head Gun:  1.6 lb handheld Wobble (Single dimensional )Welding Gun with user-changeable nozzles
    • Wobble Length: up to 5mm.
    • Recommended Welding Gap Width: less than 2.0mm (less than 1/2 of the thickness of base material)
    • Rust Removal Scan Width: 80 mm in system setting.  Depending on the distance from the substrate material, the actual cleaning width can be 10-120 mm.
    • Shielding Gas:  Argon, Nitrogen.  Working Pressure ≤1Mpa. Consumption :  20ml/Minute
    • Operating Environment:
      • Storage temperature 5-131 ℉/ -15-55 ℃
      • Operating temperature 45-95 ℉ / 5 - 35 ℃
      • Humidity 5-85% (no condensation)
    • Welding Wire:
      • 1.0-1.5 mm parent material - 0.8mm diameter welding wire
      • 2.0-2.5 mm parent material - 0.8-1.0mm diameter welding wire
      • 3.0-3.5 mm parent material - 1.0-1.2mm diameter welding wire
      • 4.0-5.0 mm parent material - 1.0-1.6mm diameter welding wire
      • Welding Wire Weight ≤ 25kg
    • Coolant:  Pure Water or Anti-freeze Coolant
    • Safety: Class 4 Laser Device. The customer is responsible for standard ANSI Z136.1 safety precautions.
    • Facilities Electrical Requirements: 220±10% V AC、50/60Hz

    Accessories:

    • Protective Lens D20-T2 x5  (10 more protective lenses are additional complimentary items )
    • Cleaning Function Protective Cover x1
    • Cleaning Function Focus Component F600 (Lens included) x1
    • Welding Head Gun Nozzles x5
    • Wire Feeding Head Pipe x1
    • Wire Feeding Pipe Head Nozzles x4
    • Laser Safety Glasses x1
    • Shielding Gas Pipe x1
    • Wire Feeding Roller x2 (There are four feeding wheels, two of which are mounted on the wire feeder )
    • Wire Feeder Power cable x1
    • Wire Feeder Signal Cable x1

    Shipping:

    Warranty & Guarantee :

    Please Note

    • A laser welding machine is easier to operate and much more efficient than a TIG/MIG welding machine under suitable conditions, but it is still a machine, we need to spend a few hours learning some of the hardware and parameter settings before using it. We will provide complete explanation video and continuous service to our customers.
    • For those who are already in the welding industry, it takes less than an hour of practice to use the welder after learning the machine parameters and hardware settings. For someone who has never worked in the welding industry, it usually takes 1-3 days to practice controlling the welding gun.
    • This product is only supplied with the welder itself and those listed accessories. When doing welding work, we may also need welding wire, gas canister, air pressure gauge, face mask, gloves, etc. When doing a lot of cleaning work, we may need to purchase an additional air compressor and air filter to save on air costs. If you have already worked in the welding industry, then those are easy to understand. If you have not been in the welding industry, please feel free to ask.
    Order 3 in 1 multifunctional Handheld laser welder with rust removal function, cutter function From XING Laser.  Save a lot for purchasing of equipment.
    XING Laser (6am Life LLC, DBA XING Laser) specializes in the development, manufacture and sale of laser welding machines and laser rust removal machines.
    We are committed to providing our customers with the most cost-effective and reliable laser equipment and services.
