Special Order 65 feet Welding Cable 1500W/2000W Handheld Laser Welder Laser Welding Machine Rust Removal Machine 3 in 1

Customize Order, No Return/No Exchange
Order to delivery: 8 weeks.

The total length cable is 20 meters from the connection to the head.

Roughly available length is 60 feet.

Machine features

• 2x-4x faster than TIG
• Wide range of materials
• Easy to learn and use
• Simple applications
• Multifunction: welding， rust removal, cutting
• Mature industry technology

Dimensions (W x D x H):

• Welding Machine：32 * 33 * 20"

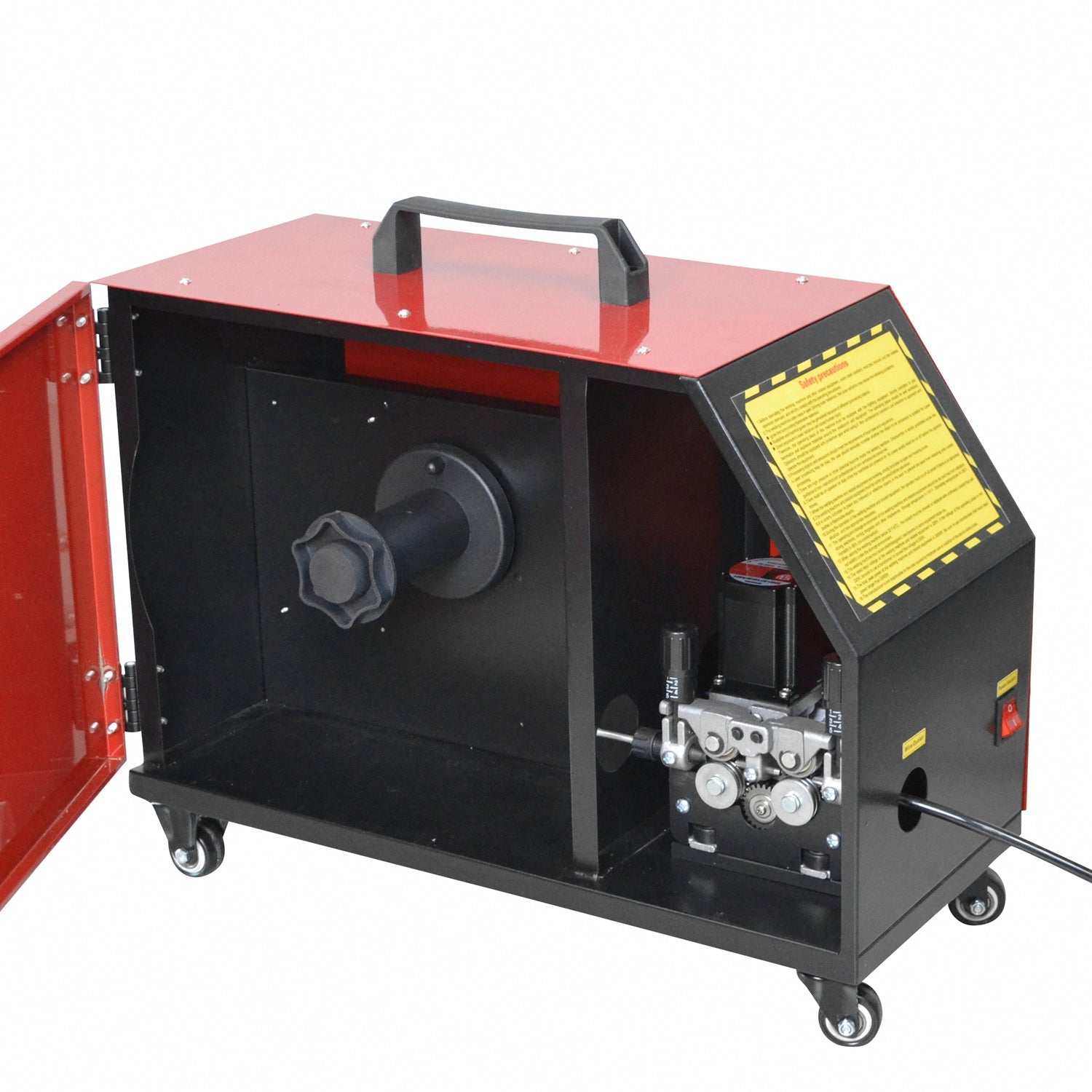

• Wire Feeder: 9.5 * 22.5 * 16.5"

Weight:

• Welding Machine：1500 W -215 lb // 2000 W - 230 lb.
• Wire Feeder:  33 lb.

Function：

• Metal Welding： Able to weld most metals such as stainless steel, aluminum, carbon steel, galvanized sheet, brass, bronze, titanium, alloys, etc.   Welding thickness data reference:



Material	Laser Power	Welding Speed	Wobble Length	Thickness
Mild steel	1450W	9mm/sec	4.5mm	4.0mm
Stainless Steel	1000W	10mm/sec	3.0mm	3.0mm
Galvanized Steel	1100W	11mm/sec	3.0mm	3.0mm
Aluminum 3&5 Series	1350W	12mm/sec	3.0mm	3.0mm
Copper	1400W	8mm/sec	2.0mm	2.0mm

• Rust Removal:  Rust removal function can be achieved by replacing a few parts of the handheld welding head gun.  The working width of rust removal is 4-12 cm, depending on the distance from the rust removal head gun to the base material.

Parameters - 1500W

• Laser Source:  1500W Raycus 1080±5 nm fiber laser
• Laser Output Power: 1500w
• Power In & Consumption:
• 1500W Laser < 7.5 KW
• Cable Length: From Base Unit to Head: 9 m (29 ft)
• Welding Speed: 0 - 40 mm/s
• Cooling System:  Water Cooling

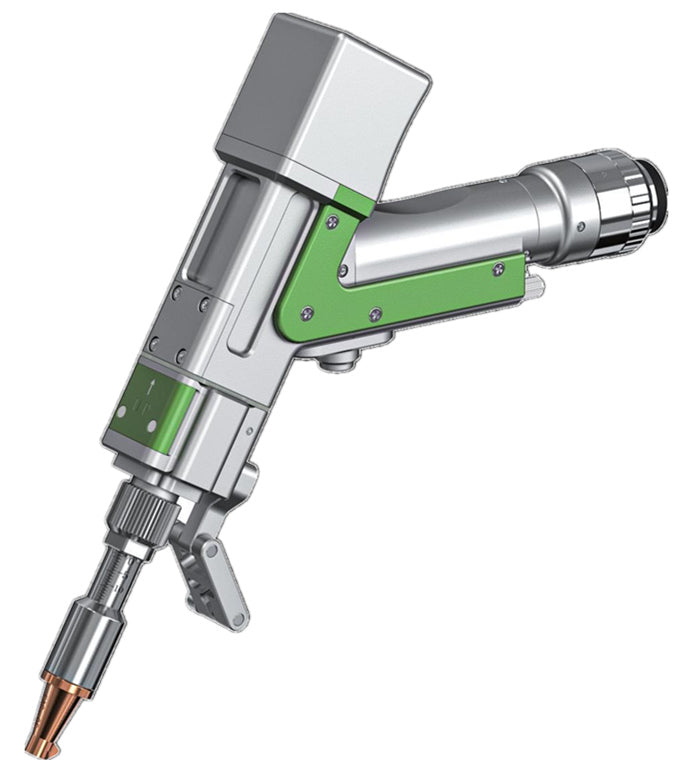

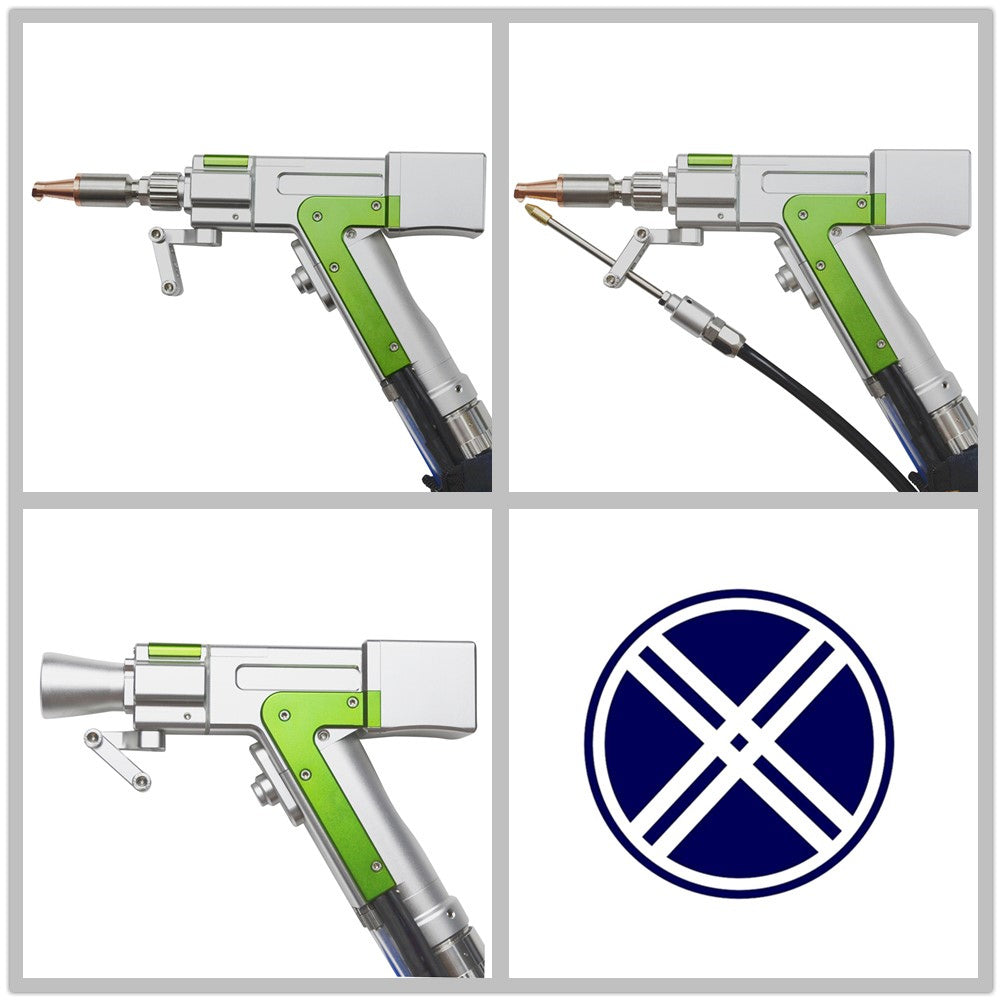

• Welding Head Gun:  1.6 lb handheld Wobble (Single dimensional )Welding Gun with user-changeable nozzles
• Wobble Length: up to 5mm.
• Recommended Welding Gap Width: less than 2.0mm (less than 1/2 of the thickness of base material）
• Rust Removal Scan Width: 80 mm in system setting.  Depending on the distance from the substrate material, the actual cleaning width can be 10-120 mm.
• Shielding Gas:  Argon, Nitrogen.  Working Pressure ≤1Mpa. Consumption :  20ml/Minute
• Operating Environment:
• Storage temperature 5-131 ℉/ -15-55 ℃
• Operating temperature 45-95 ℉ / 5 - 35 ℃
• Humidity 5-85% (no condensation)

• Welding Wire:
• 1.0-1.5 mm parent material - 0.8mm diameter welding wire
• 2.0-2.5 mm parent material - 1.0mm diameter welding wire
• 3.0-3.5 mm parent material - 1.2mm diameter welding wire
• 4.0-5.0 mm parent material - 1.6mm diameter welding wire
• Welding Wire Weight ≤ 25kg
• Coolant:  Pure Water or Anti-freeze Coolant
• Safety: Class 4 Laser Device. The customer is responsible for standard ANSI Z136.1 safety precautions.
• Facilities Electrical Requirements: 220±10% V AC、50/60Hz

Parameters - 2000W

• Laser Source:  Max 1080±5 nm fiber laser
• Laser Output Power: 2000W
• Power In & Consumption:
• 1000W Laser < 6.0 KW
• 1500W Laser < 7.5 KW
• 2000W Laser < 9.0 KW
• Cable Length: From Base Unit to Head : 9 m (29 ft)
• Welding Speed: 0 - 40 mm/s
• Cooling System:  Water Cooling
• Welding Head Gun:  1.6 lb handheld Wobble Welding Gun with user-changeable nozzles
• Wobble Length: up to 5mm.
• Recommended Welding Gap Width: less than 2.5mm (less than 1/2 of the thickness of base material）
• Shielding Gas:  Argon, Nitrogen.  Working Pressure ≤1Mpa. Consumption :  20ml/Minute
• Operating Environment:
• Storage temperature 5-131 ℉/ -15-55 ℃
• Operating temperature 45-95 ℉ / 5 - 35 ℃
• Humidity 5-85% (no condensation)

• Welding Wire:
• 1.0-1.5 mm parent material - 0.8mm diameter welding wire
• 2.0-2.5 mm parent material - 1.0mm diameter welding wire
• 3.0-3.5 mm parent material - 1.2mm diameter welding wire
• 4.0-5.0 mm parent material - 1.6mm diameter welding wire
• Welding Wire Weight ≤ 25kg
• Coolant:  Pure Water or Anti-freeze Coolant
• Safety: Class 4 Laser Device. Customer responsible for standard ANSI Z136.1 safety precautions.
• Facilities Electrical Requirements: 220±10% V AC、50/60Hz

Accessories:

• Protective Lens D20-T2 x5  (10 more protective lenses are additional complimentary items )
• Cleaning Function Protective Cover x1
• Cleaning Function Focus Component F600 （Lens included) x1

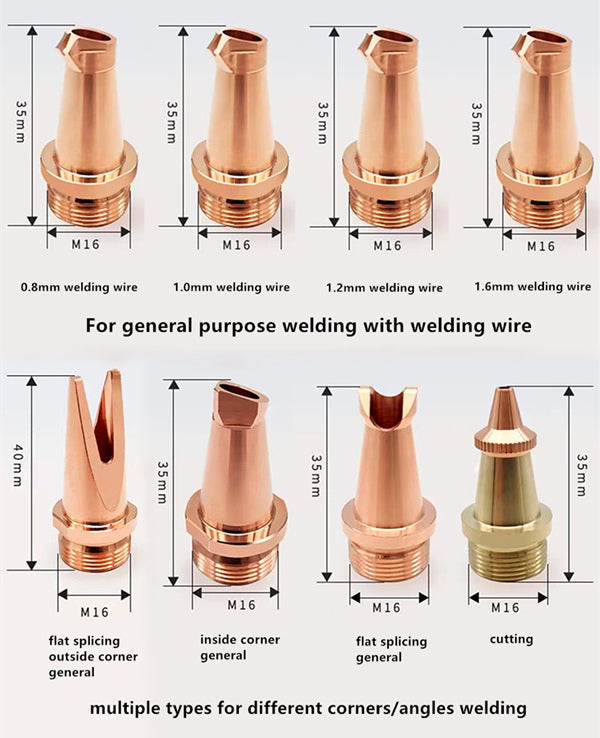

• Welding Head Gun Nozzles x5  (2 more Head Nozzles are additional complimentary items )
• Wire Feeding Head Pipe x1
• Wire Feeding Pipe Head Nozzles x4
• Laser Safety Glasses x1
• Shielding Gas Pipe x1
• Wire Feeding Roller x2 (There are four feeding wheels, two of which are mounted on the wire feeder )
• Wire Feeder Power cable x1
• Wire Feeder Signal Cable x1

Shipping:

• Local shipping for regular US orders. (Shipping Policy)

Warranty & Guarantee :

• Warranty Policy
  .
• Quick response Support.

Order 3 in 1 multifunctional Handheld laser welder with rust removal function, cutter function From XING Laser.  Save a lot for purchasing of equipment.
XING Laser (6am Life LLC, DBA XING Laser) specializes in the development, manufacture and sale of laser welding machines and laser rust removal machines.
We are committed to providing our customers with the most cost-effective and reliable laser equipment and services.
