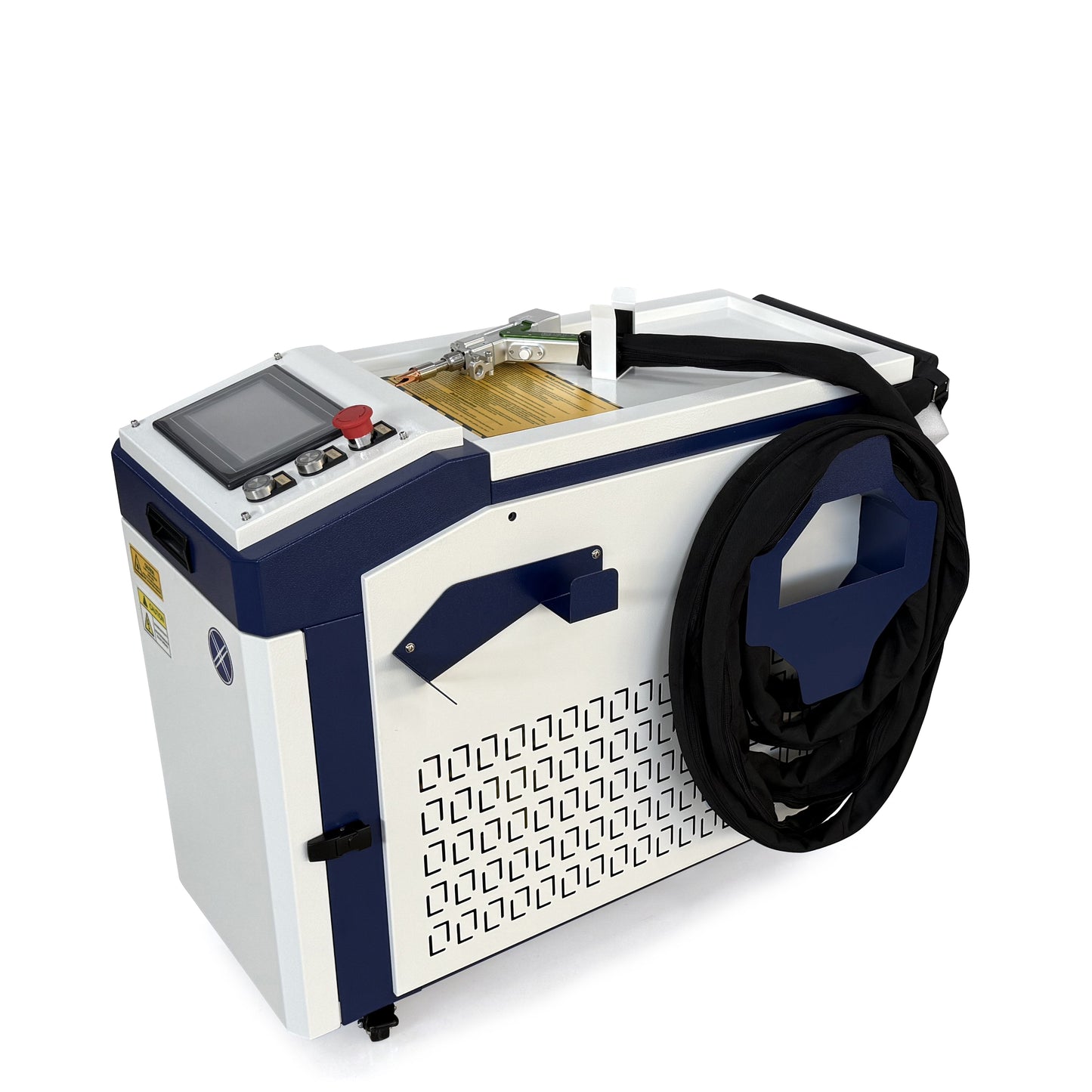

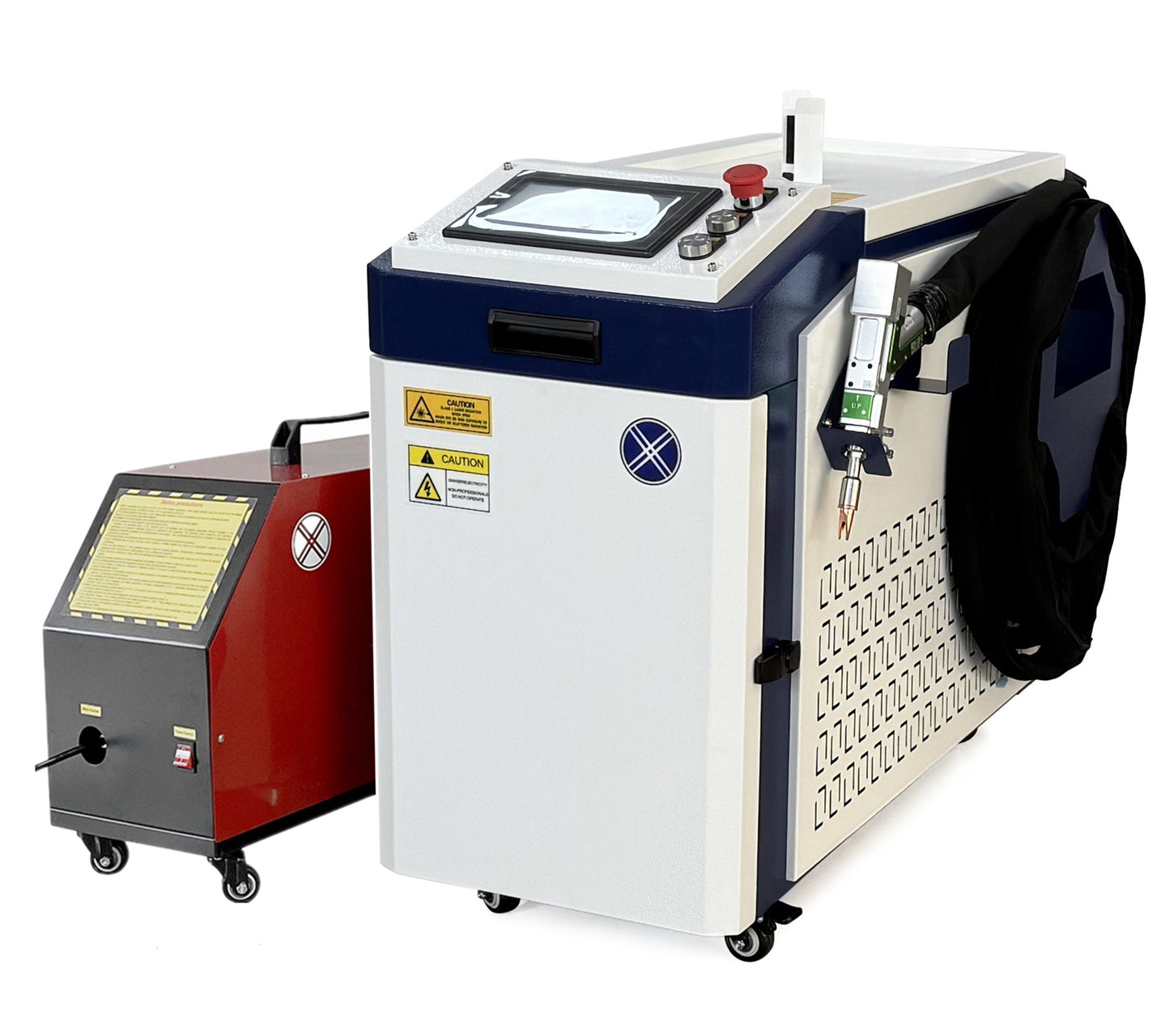

Compact 1500W Handheld Laser Welder Laser Welding Machine 3in1

Introduction:

We are a Florida-based manufacturer specializing in high-quality laser welding machines and related products. Serving industries from personal hobby collections to small auto shops to large enterprises, including Nasa, Tesla, Military etc. Our machines are designed for precision, reliability, and versatility.

We are committed to delivering innovative solutions to our clients, no matter the scale of their operations—whether you’re a hobbyist creating intricate designs or a large factory producing high-volume products, we’ve got you covered.

Machine Features:

1. Welding model: Continuous, Pulse

2. Multi-functions: Laser Welding is the main function with side functions of Laser Rust removal, Laser Cutting and Welding Seam Cleaning.

3. 2 - 4 times faster than TIG

4. Wide range of welding materials: Steel, Carbon steel, Aluminum, and Others.

5. Easy to learn and use with simple applications

6. Continuously work all day with a built-in water-coolant chiller cooling system

7. Building-in water cooling system.

Dimensions and Weight:

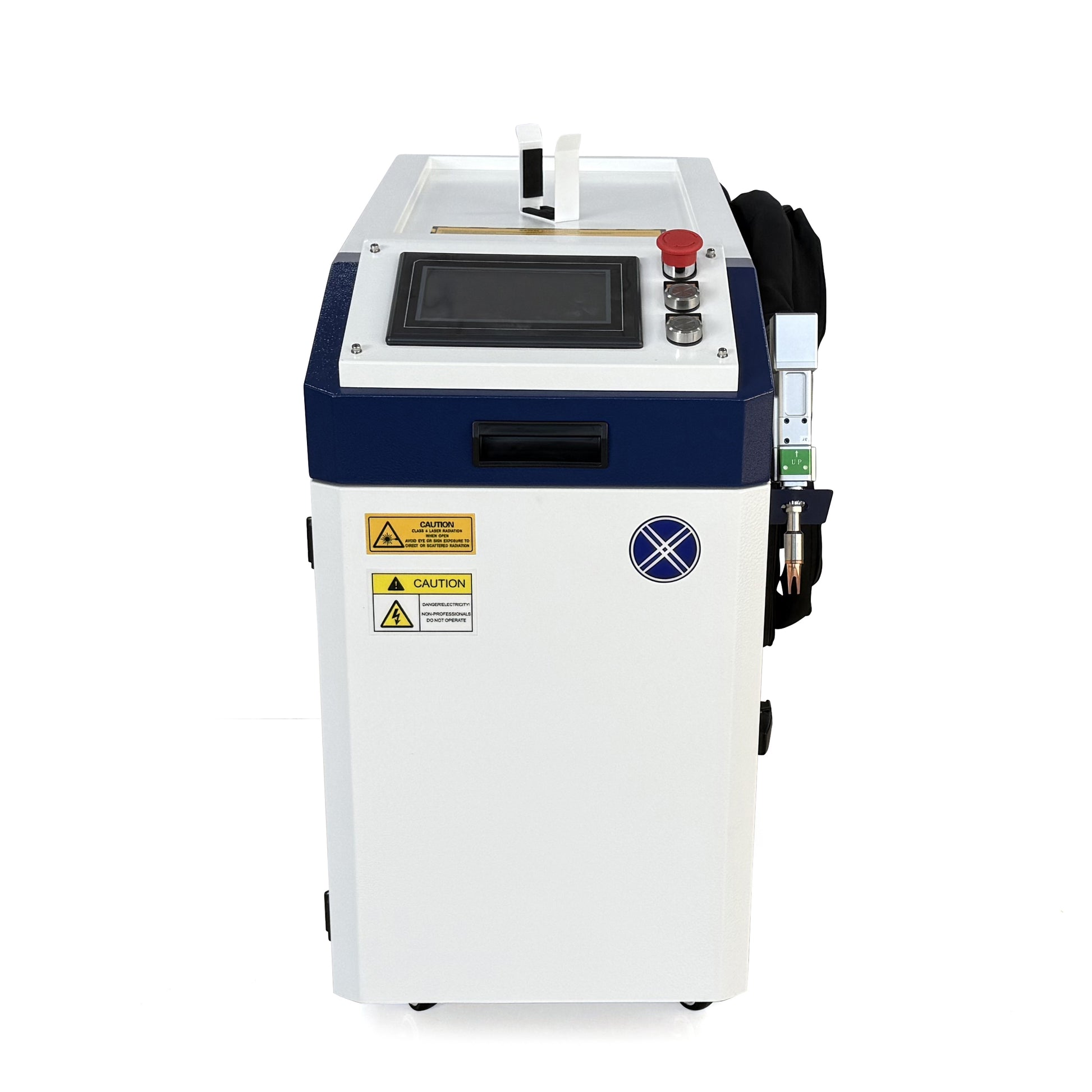

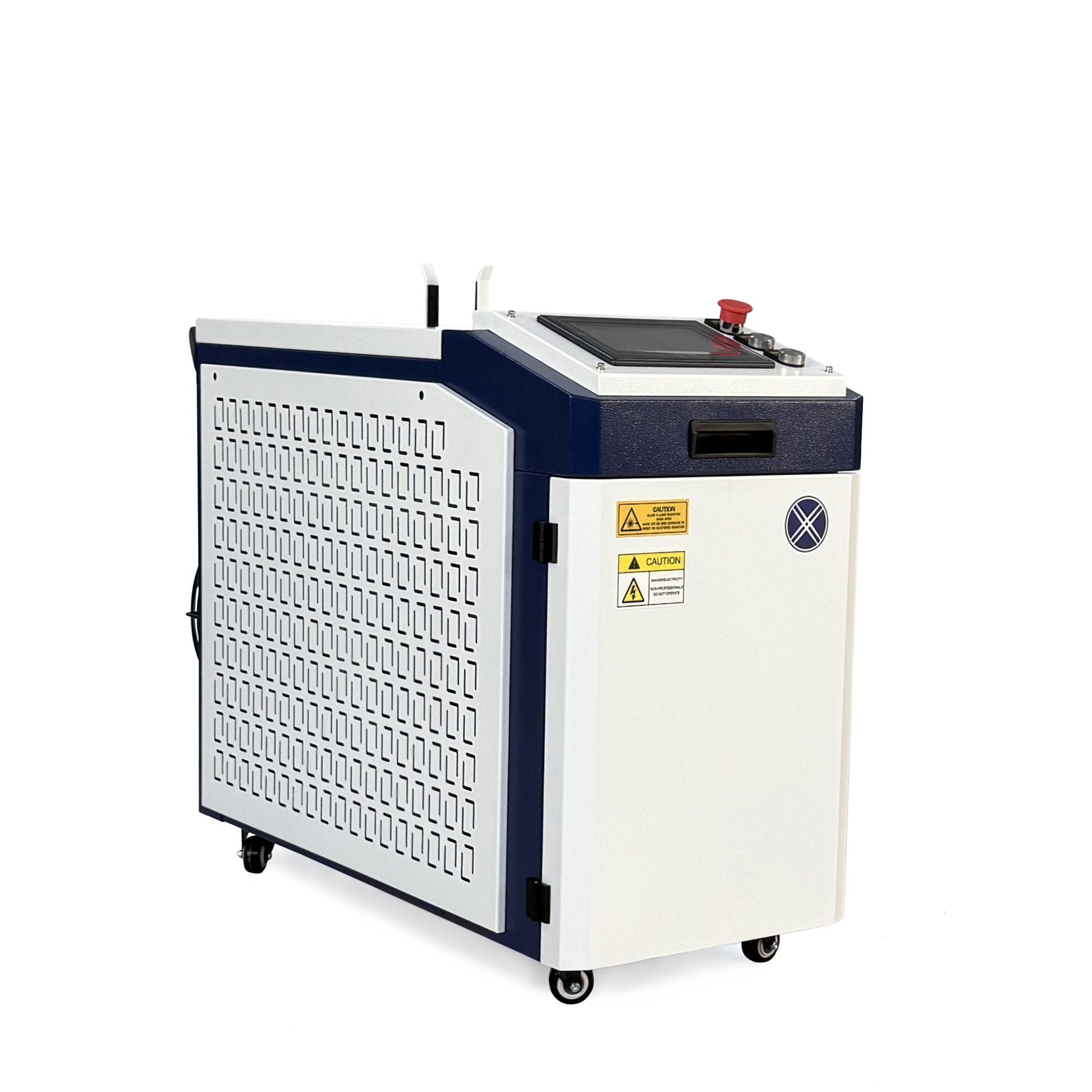

· Welding Machine: 32 * 33 * 20" (exclude handle and hangers), around 130 lb net weight.

· Wire Feeder: 9.5 * 22.5 * 16.5", around 33 lb weight.

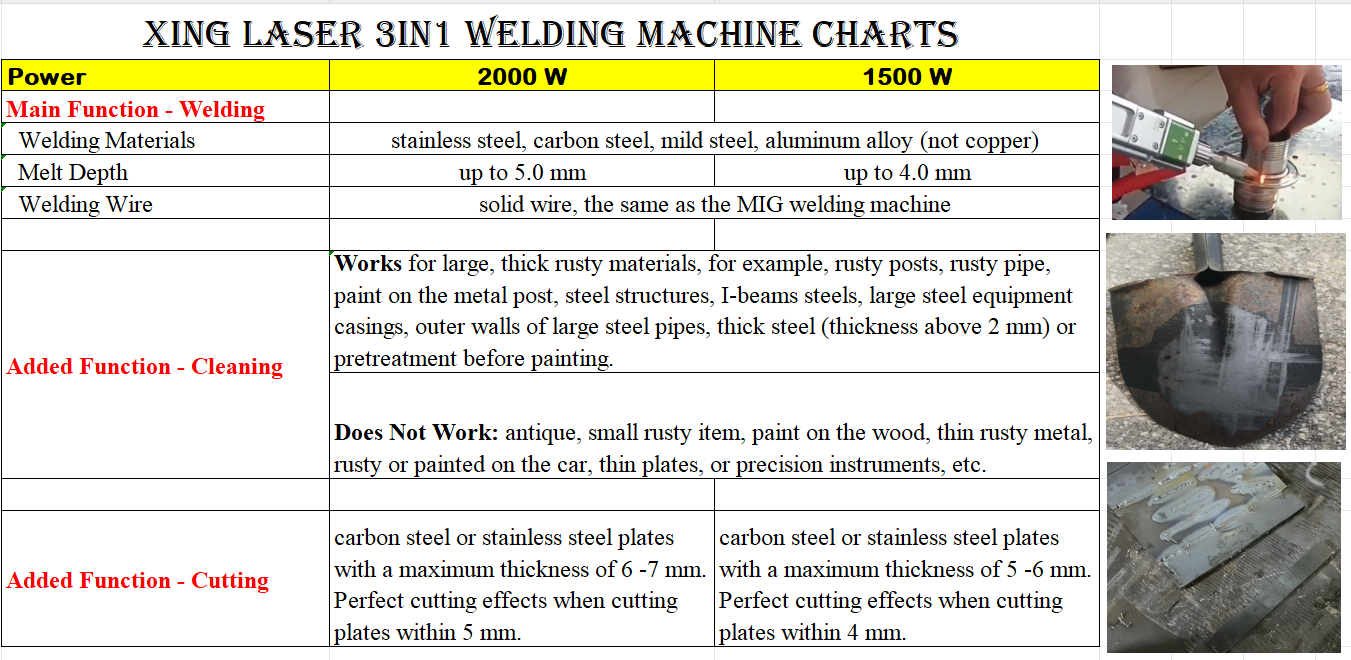

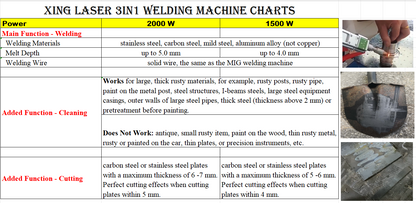

Function:

The main function is Metal Welding: Able to weld most metals such as stainless steel, aluminium alloy, carbon steel, galvanized sheet, titanium, bronze，brass，alloys, etc. (does not work on the high reflection materials like copper, etc)

Single-side, single pass material weld capability: Stainless steel, mild steel, galvanized steel, aluminum 3.5mm. Has good welding efficiency when welding materials within 3.0 mm thickness.

Side Functions: Rust removal and cutting can be switched within a few minutes by adjusting internal parameters and parts.  (Cannot be used to cut copper, bronze, brass, aluminium alloy, etc.  )

 Shipping - Truck LTL:



Parameters: (1 inches = 25.4 mm) ( °C = (°F - 32) × 5/9 )

·Laser Source: 1080±5 nm fiber laser

·Laser Output Power: regular consumer level 1500 W

·Power In & Consumption:

·1500W Laser < 7.0 KW

·Cable Length: From Base Unit to Head: 31 feet (around 9 meters)

·Welding Speed: Adjustable range 0 - 40 mm/s. Recommended range 6 -15 mm/s

·Cooling System: Water or water with coolant Cooling

·Welding Head Gun: 1.6 lb handheld Wobble (Single dimensional ) Welding Gun with user-changeable nozzles

·Wobble Length: up to 5 mm.

·Recommended Welding Gap Width: less than 2.0 mm

·Rust Removal Scan Width: 10 - 110 mm

·Welding Seam Cleaning Width:  ≤12mm

·Shielding Gas: Argon, Nitrogen.

.Maximum input working pressure ≤1Mpa.

·Operating Environment:

·Storage temperature 5-131 ℉/ -15 -55 ℃

·Operating temperature 14-105 ℉ / -10-40 ℃

·Humidity 5-85% (no condensation)

·Welding Wire:

·1.0-1.5 mm parent material - 0.8 mm diameter welding wire

·2.0-2.5 mm parent material - 0.8-1.0 mm diameter welding wire

·3.0-3.5 mm parent material - 1.0-1.2 mm diameter welding wire

·4.0-5.0 mm parent material - 1.0-1.6 mm diameter welding wire

·Welding wire weight 5 lb to 30 lb.

·Safety: Class 4 Laser Device. The customer is responsible for standard ANSI Z136.1 safety precautions.

·Facilities Electrical Requirements: 220V±10% V, AC 60HZ, Single Phase. (Fully matched to 240V single phase formed by two 120V hot wires that are 180° out of phase)



Accessories and parts included with the machine:

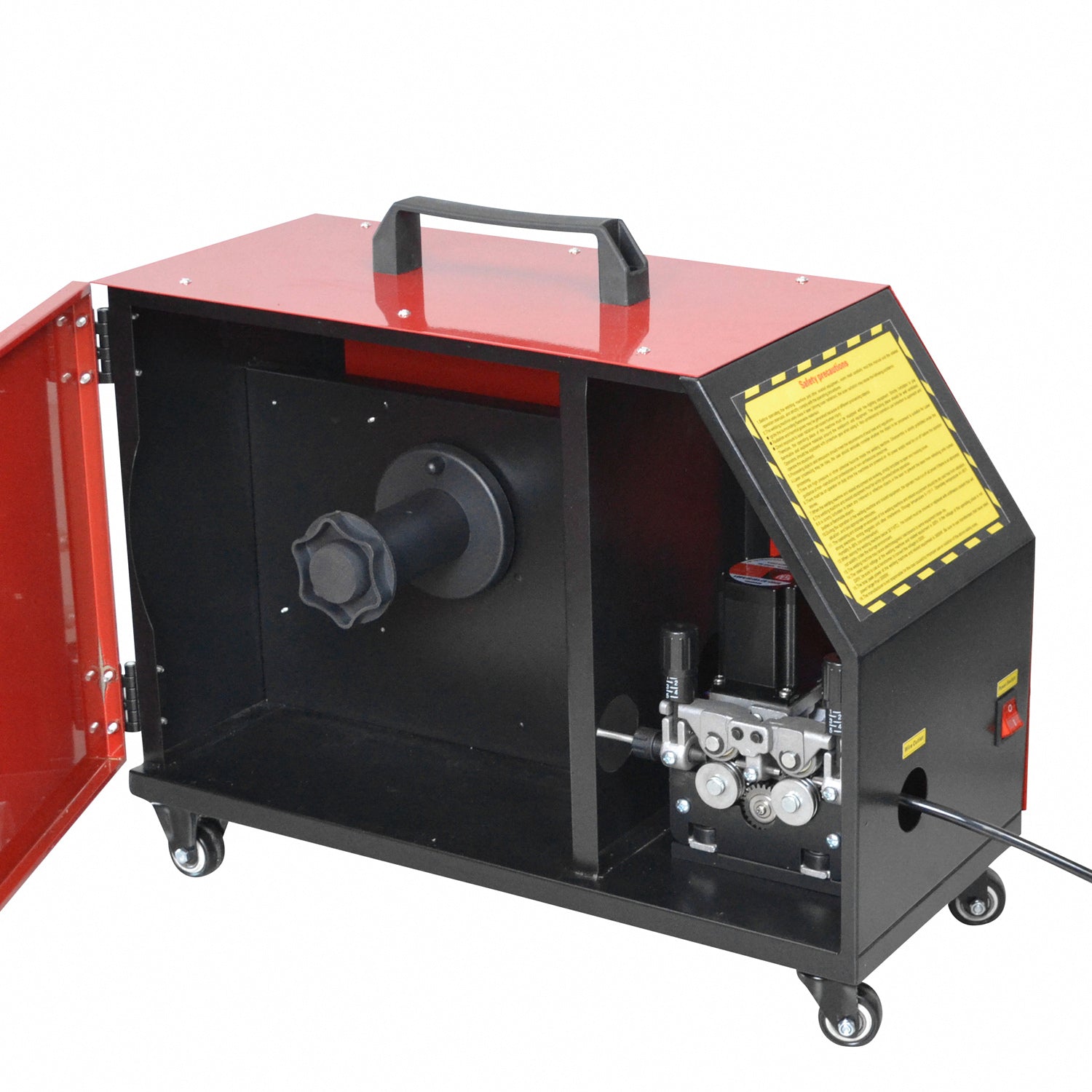

  Single Wire Feeder Machine

·Protective Lens

·Cleaning Function Protective Cover

·Cleaning Function Focus Component F800 （Lens included)

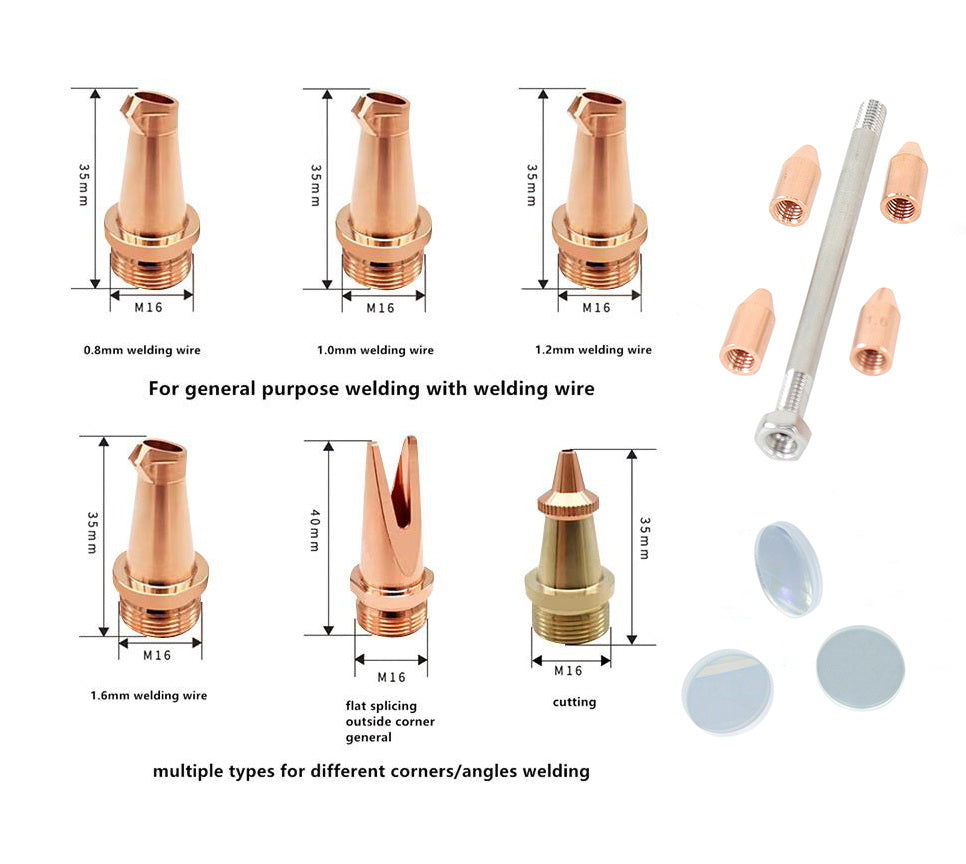

·Welding Head Gun Nozzles - E0.8 mm, E1.0 mm, E1.2 mm, E1.6 mm, H-Cut,

·Wire Feeding Head Pipe

·Wire Feeding Pipe Head Nozzles: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm

·Shielding Gas Pipe

·Wire Feeding Roller: 0.8 mm & 1.0 mm, 1.2 mm & 1.6 mm (double sides, total 4 wheels, two were per-install on the wire-feeder machine)

·Wire Feeder Power Cable

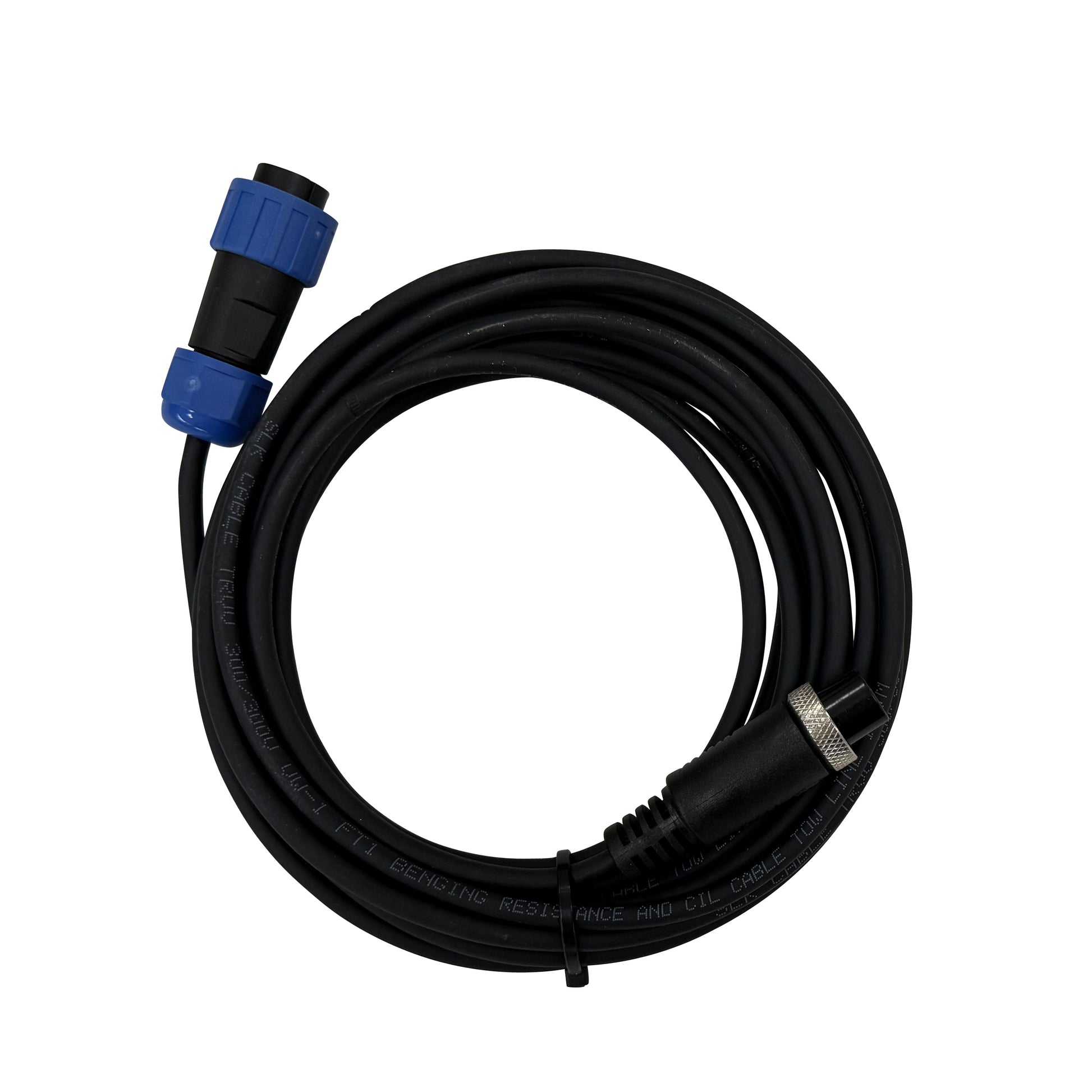

·Wire Feeder Signal Cable
