XING Laser Machines

Extra Long Cable 45 Feet 4in1 Laser Welder Laser Welding Machine Laser Cutting Laser Cleaning

Extra Long Cable 45 Feet 4in1 Laser Welder Laser Welding Machine Laser Cutting Laser Cleaning

Regular price $6,850.00
Regular price $12,750.00 Sale price $6,850.00
Sale Sold out
Shipping calculated at checkout.
Power Level

Pre-Order Only. It uses 45 - 48 feet long cable,  compare to regular standard 29 feet long cable. Specialized for high building, bridge purpose. 5 weeks delivery time to most of the destinations.

Introduction:
We are a small business company designed to manufacture quality laser welding machines and other related products to serve the USA nation and worldwide countries. Our clients are from personal hobby collections to small auto shops to large factories like Tesla.


Machine Features:
1. Welding model: Continuous, Pulse
2. Multi-functions: Laser Welding is the main function with side functions of Laser Rust removal and Laser Cutting
3. 2 - 4 times faster than TIG
4. Wide range of welding materials: Steel, Carbon steel, Aluminum, and Others. Note: does not work on Copper materials
5. Easy to learn and use with simple applications
6. Continuously work all day with a built-in water-coolant chiller cooling system

Dimensions and Weight:
· Welding Machine: 32 * 33 * 20" (exclude handle and hangers), around 210 lb net weight (without water) It is NOT a mobilized machine.
· Wire Feeder: 9.5 * 22.5 * 16.5", around 33 lb weight.

Function
:
The main function is Metal Welding: Able to weld most metals such as stainless steel, aluminum, carbon steel, galvanized sheet, titanium, alloys, etc. (does not work on the high reflection materials, like copper, brass, bronze, etc)

Single-side, single pass material weld capability: Stainless steel, mild steel, galvanized steel, aluminum up to 5 mm by adjusting the parameters. Has good welding efficiency when welding materials within 4.0 mm thickness.

Side Functions: Rust removal and cutting can be switched within a few minutes by adjusting internal parameters and parts. (included with machine)

Note: It is a professional welding machine. Side functions of cleaning and cutting can not substitute professional cleaning and cutting machines. The cleaning has limited function: single-line model; 80mm width by changing the lens and head cover.

Shipping - Truck LTL:
We only provide pallet shipping service to the contiguous 48 states - USA domestic and Canada.
Other countries, PR, HI, and AK state buyers, contact us to see the options for export, customs clearance, and logistics.


Parameters: (1 inches = 25.4 mm)( °C = (°F - 32) × 5/9 )
·Laser Source: 1080±5 nm fiber laser
·Laser Output Power: 2000 W
·Power In & Consumption:
·2000W Laser < 9.0 KW
·Cable Length: From Base Unit to Head: 31 feet (around 9 meters)
·Welding Speed: Adjustable range 0 - 40 mm/s. Recommended range 6 -15 mm/s
·Cooling System: Water or water with coolant Cooling

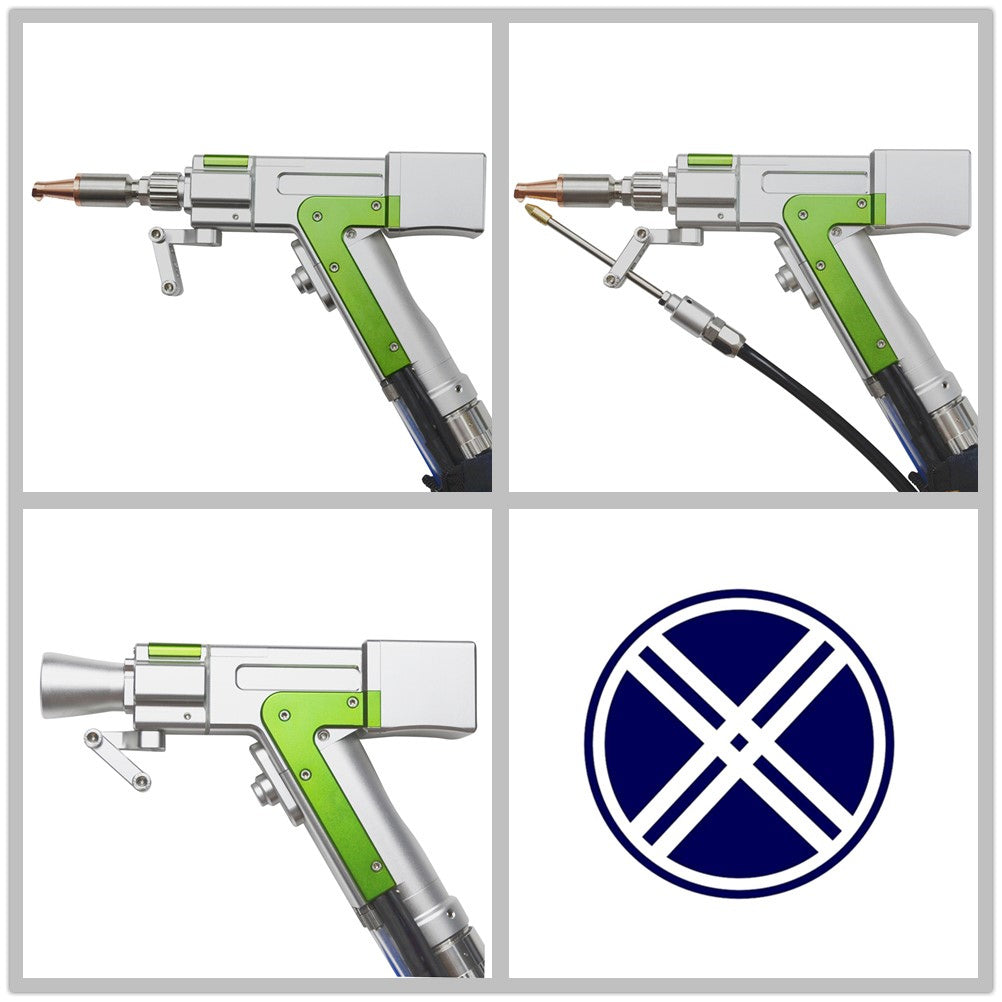

·Welding Head Gun: 1.6 lb handheld Wobble (Single dimensional ) Welding Gun with user-changeable nozzles
·Wobble Length: up to 5 mm.
·Recommended Welding Gap Width: less than 2.0 mm
·Rust Removal Scan Width: 10 - 80 mm
·Shielding Gas: Argon, Nitrogen.
.Maximum input working pressure ≤1Mpa.
·Operating Environment:
·Storage temperature 5-131 ℉/ -15 -55 ℃
·Operating temperature 32-105 ℉ / 0-40 ℃
·Humidity 5-85% (no condensation)
·Welding Wire:
·1.0-1.5 mm parent material - 0.8 mm diameter welding wire
·2.0-2.5 mm parent material - 0.8-1.0 mm diameter welding wire
·3.0-3.5 mm parent material - 1.0-1.2 mm diameter welding wire
·4.0-5.0 mm parent material - 1.0-1.6 mm diameter welding wire
·Welding wire weight 5 lb to 30 lb.
·Safety: Class 4 Laser Device. The customer is responsible for standard ANSI Z136.1 safety precautions.
·Facilities Electrical Requirements: 220V±10% V, AC 60HZ, Single Phase. (Fully matched to 240V single phase formed by two 120V hot wires that are 180° out of phase)

Accessories and parts included with the machine:

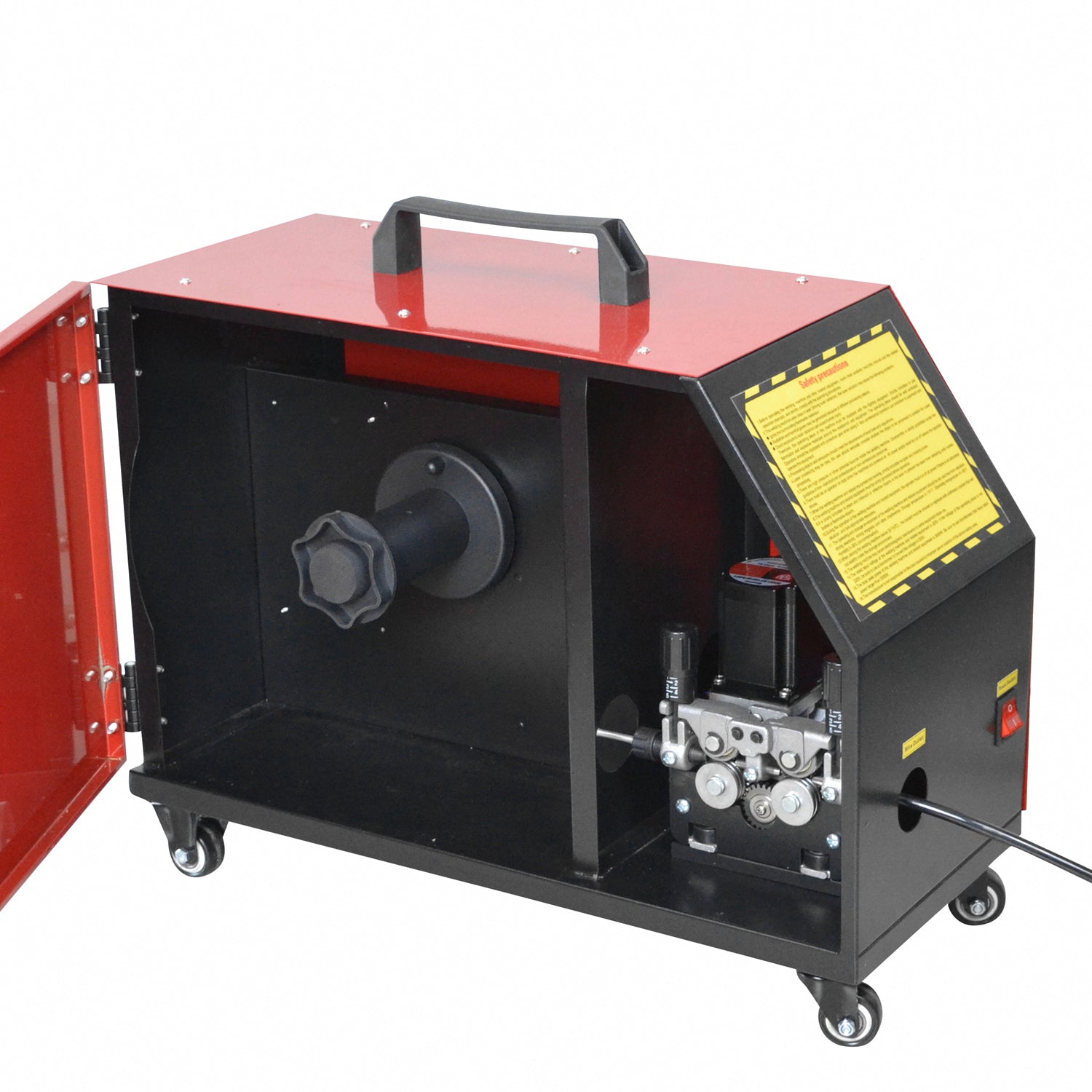

  Single Wire Feeder Machine
·Protective Lens D20-T2 - 10 PCS
·Cleaning Function Protective Cover
·Cleaning Function Focus Component F600 (Lens included)

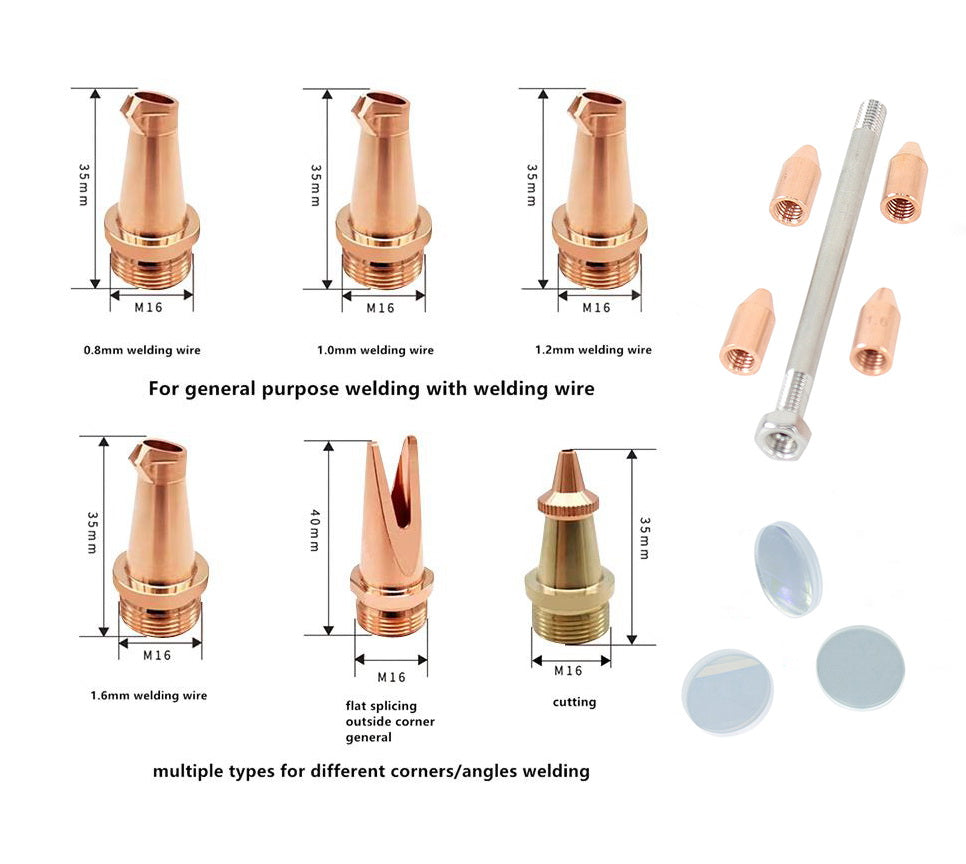

·Welding Head Gun Nozzles - E0.8 mm, E1.0 mm, E1.2 mm, E1.6 mm, H-Cut,
·Wire Feeding Head Pipe
·Wire Feeding Pipe Head Nozzles: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
·Shielding Gas Pipe
·Wire Feeding Roller
: 0.8 mm & 1.0 mm, 1.2 mm & 1.6 mm (double sides, total 4 wheels, two were per-install on the wire-feeder machine)
·Wire Feeder Power Cable
·Wire Feeder Signal Cable

Xing Laser Welding Machines are explicitly designed and intended for industrial use in sectors such as automobile manufacturing, metal factories, large steel plants, and are not intended for use in any processes related to food, drugs, or other regulated industries.
Tech support, warranty, and any questions can directly contact XING Laser company support, which is the same across all the commercial sites.
