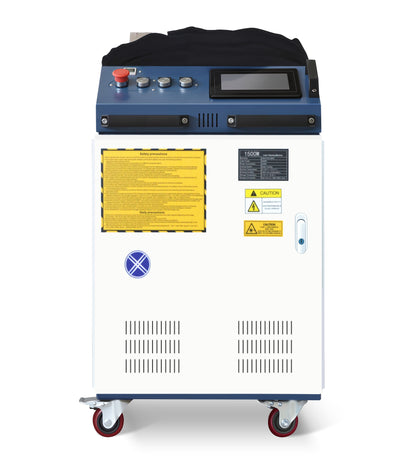

Industrial 1500W Continuous Wave Laser Cleaning Machine

XING Laser 1500W Continuous Wave Laser Cleaning Machine

High Power | Industrial Grade | Rust, Paint & Oil Removal

🔹 True Industrial 1500W Fiber Laser — Not Underrated

Unlike many budget machines on the market that claim 1500W but deliver only 1100–1200W, XING Laser uses a customized sufficient power laser source, delivering actual output between 1500–1550W. This ensures stronger, deeper cleaning performance and longer service life. Each machine is individually tested for 3 continuous hours by XING engineers before packaging to ensure performance reliability.

⚙️ Key Features

·         Laser Type: 1500W Continuous Wave Fiber Laser (1080±5 nm)

·         Cleaning Scope:

o    Single Line Scan: up to 300 mm (11.8 in.)

o    Dual Vibration Scan: up to 200 mm (7.8 in.)

·         Handheld Wobble Head Gun (1.6 lb): Lightweight with upgraded protective lens cover and dual vibration for multiple beam trajectories.

·         Cooling System: Built-in, independent water chiller enables all-day continuous operation and easy maintenance.

·         Non-Contact Cleaning: Ideal for rust, paint, oil, and dust removal.

🛠️ Specifications

·         Dimensions (W x D x H): 22.0 x 33.5 x 35.5 inches

·         Weight: 200 lbs

·         Cable Length (Base Unit to Head): 9 m (~30 ft)

·         Power Requirements:

o    Input Power: < 7.0 kW

o    Voltage: 220–240V ±10%, Single Phase, 50/60Hz

·         Cooling Liquid: Purified or distilled water; mixed antifreeze coolant in winter

·         Air Requirement: 6-gallon, 150 PSI compressor with industrial-grade air filter

·         Operating Environment:

o    Temperature: 50–95 ℉ (10–35 ℃)

o    Humidity: 5–85% (non-condensing)

o    Storage Temperature: -15–55 ℃ / 5–131 ℉

·         Safety Class: Class 4 Laser Device
ANSI Z136.1 compliance required by user

🧰 Accessories & Consumables

·         Protective lens

·         Laser safety glasses

·         Air pipe (OD 8mm / 10mm)

·         Consumables: Protective lens, electricity

·         Maintenance: Simple; largely limited to water refill and lens check

✅ How to Identify Real 1500W Output

1.      Melting Depth Test: Greater melt depth during welding indicates higher actual power.

2.      Current Test: Using a multimeter at the same power setting, sufficient power lasers draw 20%+ higher current than underpowered versions.

⚠️ Important Notes

·         CW Laser Technology: Ideal for large surface cleaning on thick metals (2mm+).
Not recommended for thin sheets, heat-sensitive components, or precision parts.

·         For delicate or precision cleaning, choose a pulse laser cleaner.

·         Intended Use: Industrial applications only — automotive, steel structures, machinery repair. Not suitable for food, drug, or other regulated industries.

·         Continuous Wave (CW) Laser Cleaning Machine is designed for effective removal of paint, oil, dust, and rust from metal surfaces. It operates by using high-energy laser beams to continuously ablate contaminants from the substrate. Key Features: High-efficiency cleaning of surface contaminants through thermal ablation. Ideal for heavy-duty applications, including: Rust and paint removal on steel structures Cleaning I-beams and large steel equipment housings Surface preparation for painting or coating Cleaning thick steel surfaces (thickness > 2mm) Maintenance of large steel pipes and outer walls Limitations: Due to the significant heat accumulation during operation, this machine is not recommended for: Thin metal plates prone to deformation Precision instruments or sensitive components

🏭 About XING Laser

XING Laser (6am Life LLC, DBA XING Laser) specializes in the development and manufacture of high-performance handheld laser cleaning and rust removal equipment. We’re committed to delivering cost-effective, durable, and industrial-grade laser solutions.

🔗 For warranty and service information, please XING LASER official site
