Lens for CQ Gun D18-T2 Protective Lens D20-F150 D20-F800 Focus Lens M30-14T2 Vib Lens

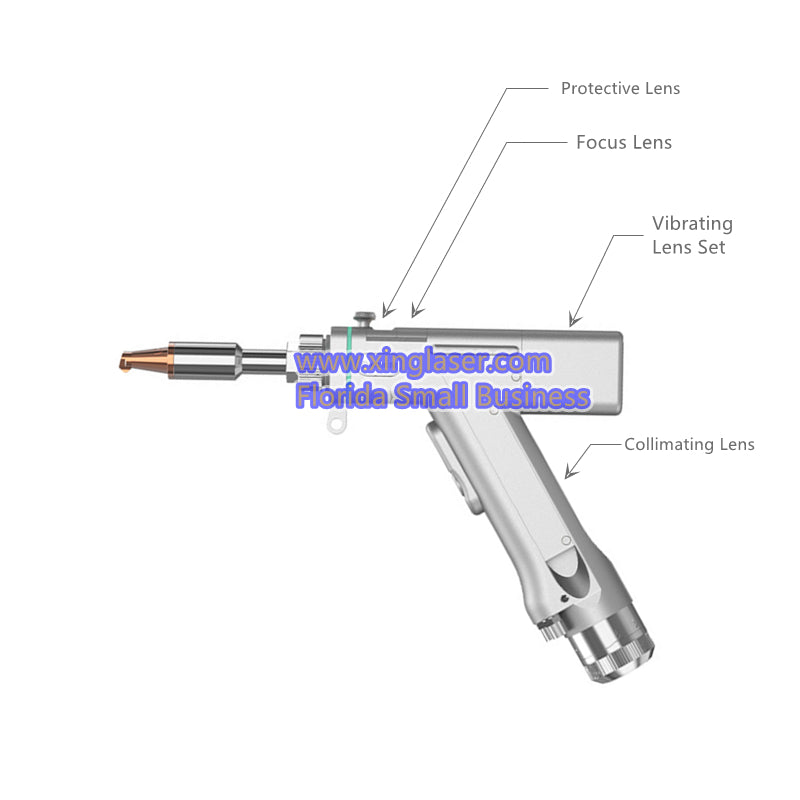

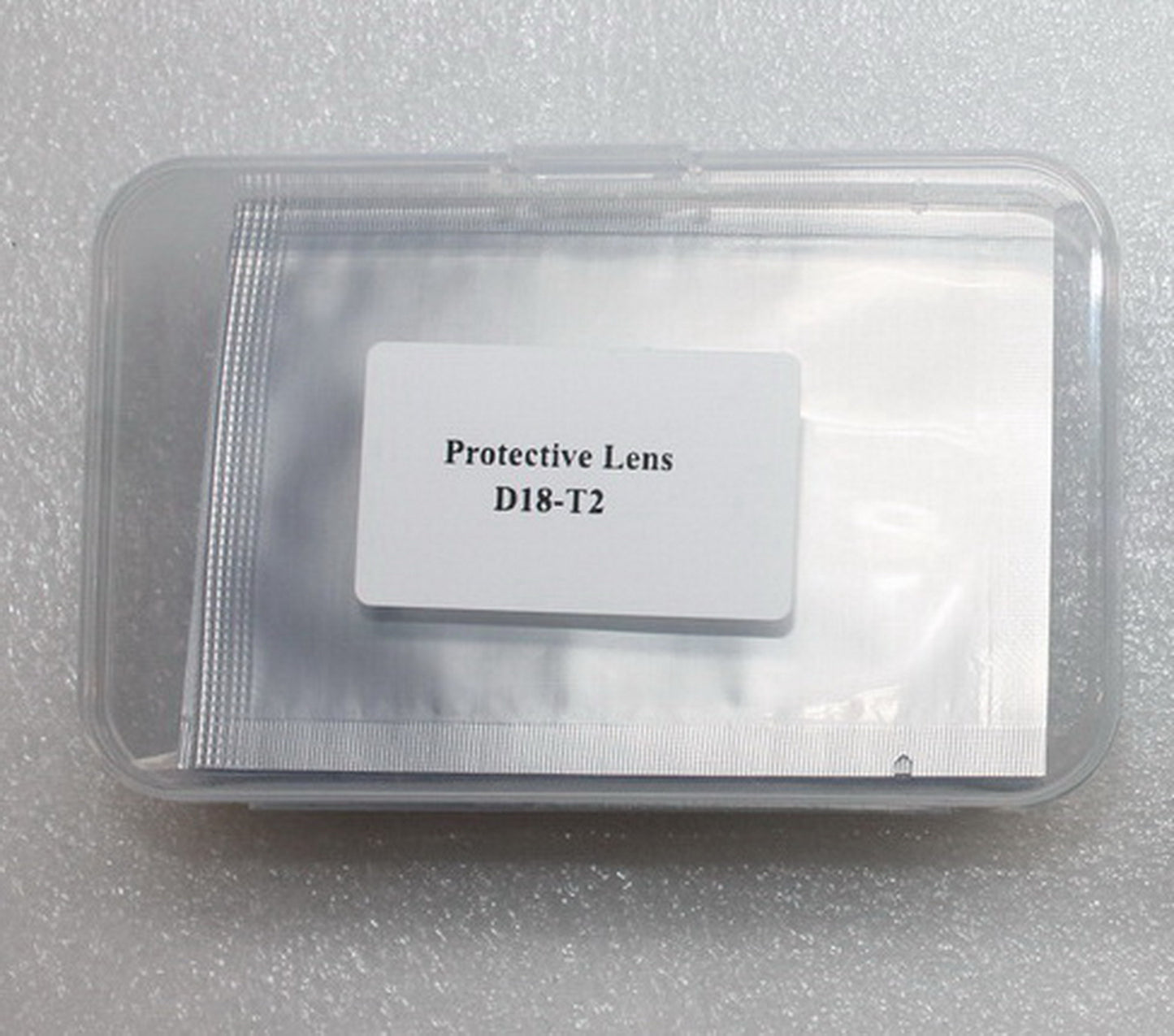

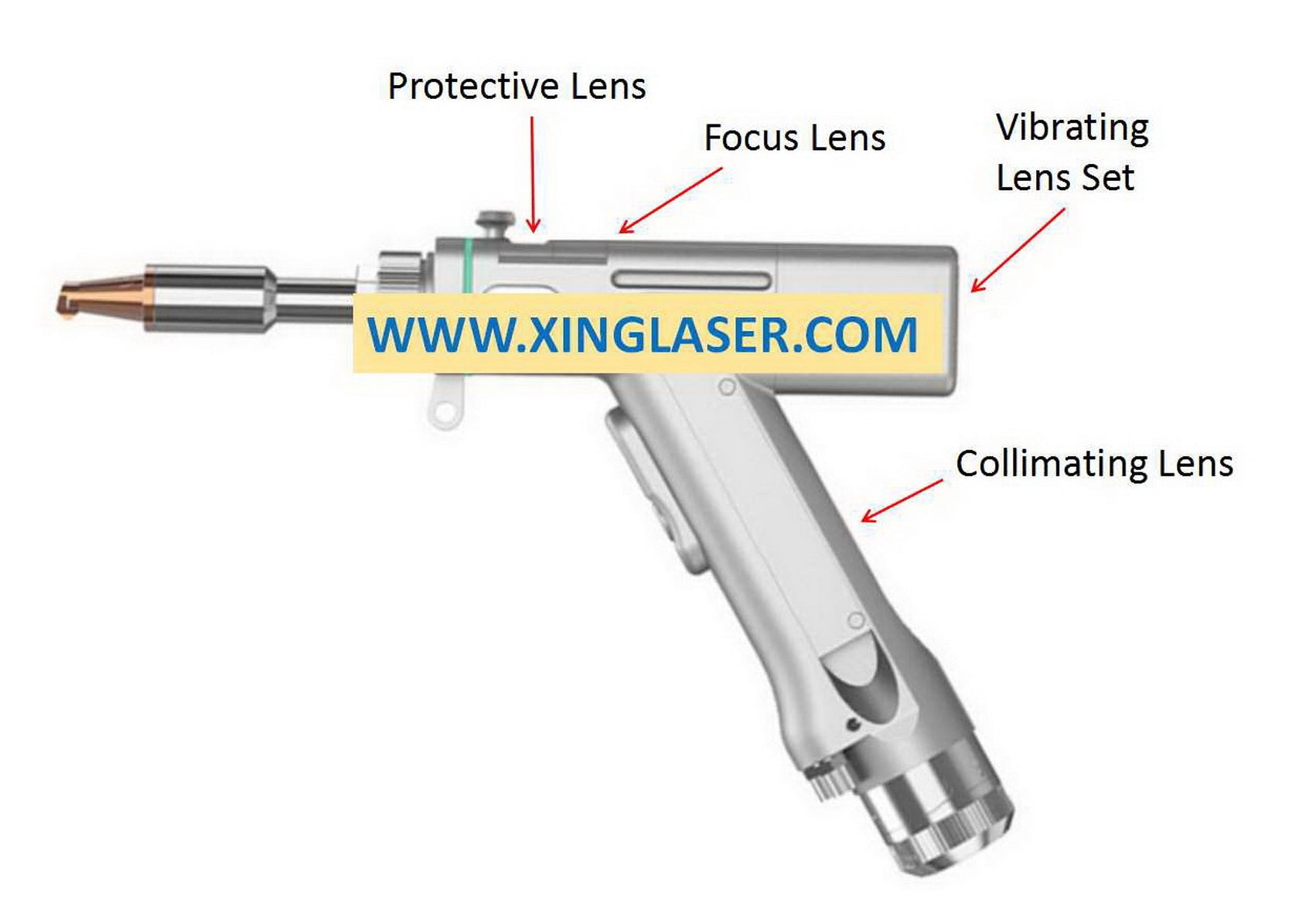

Protective Lens :  D18-T2

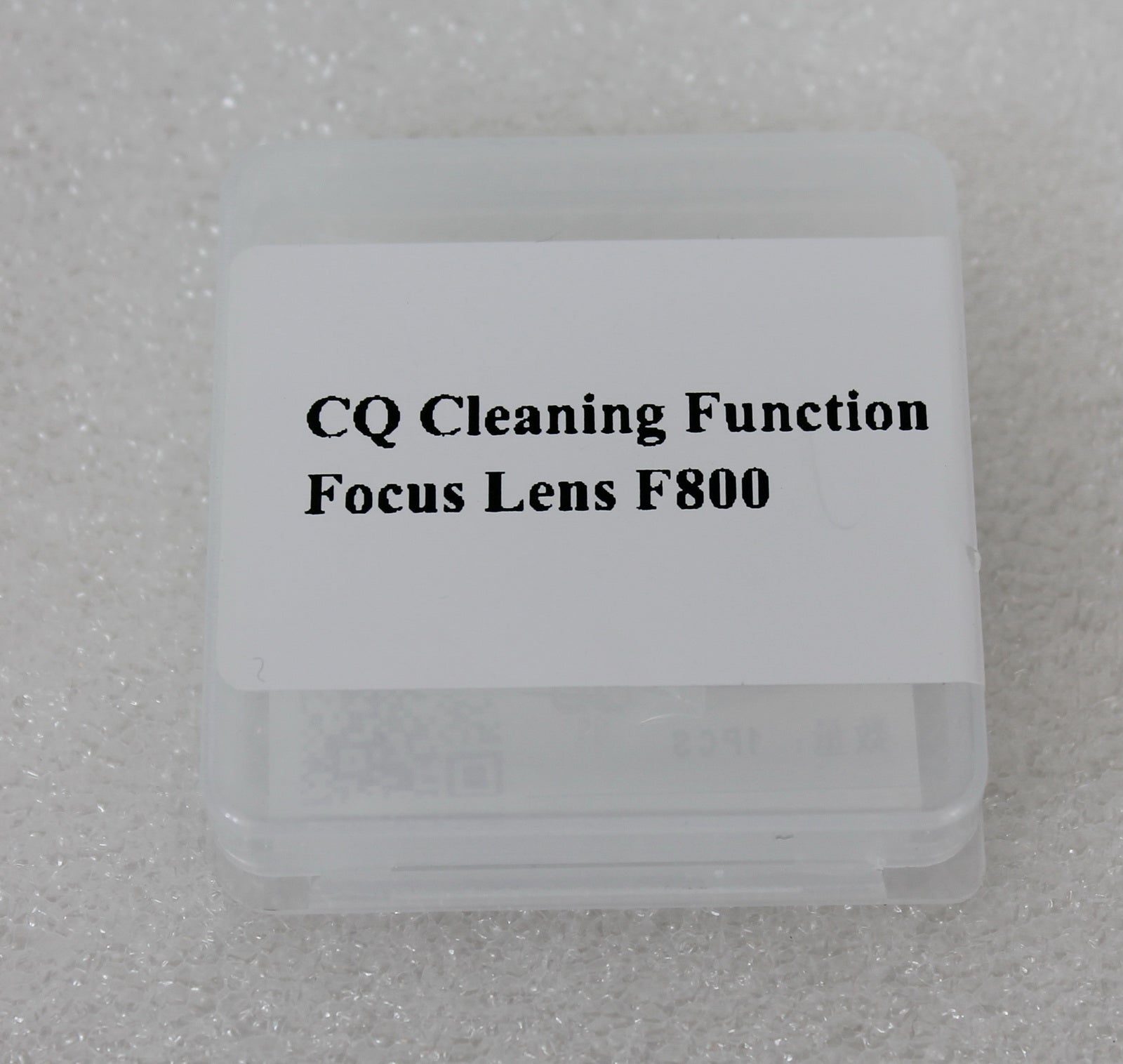

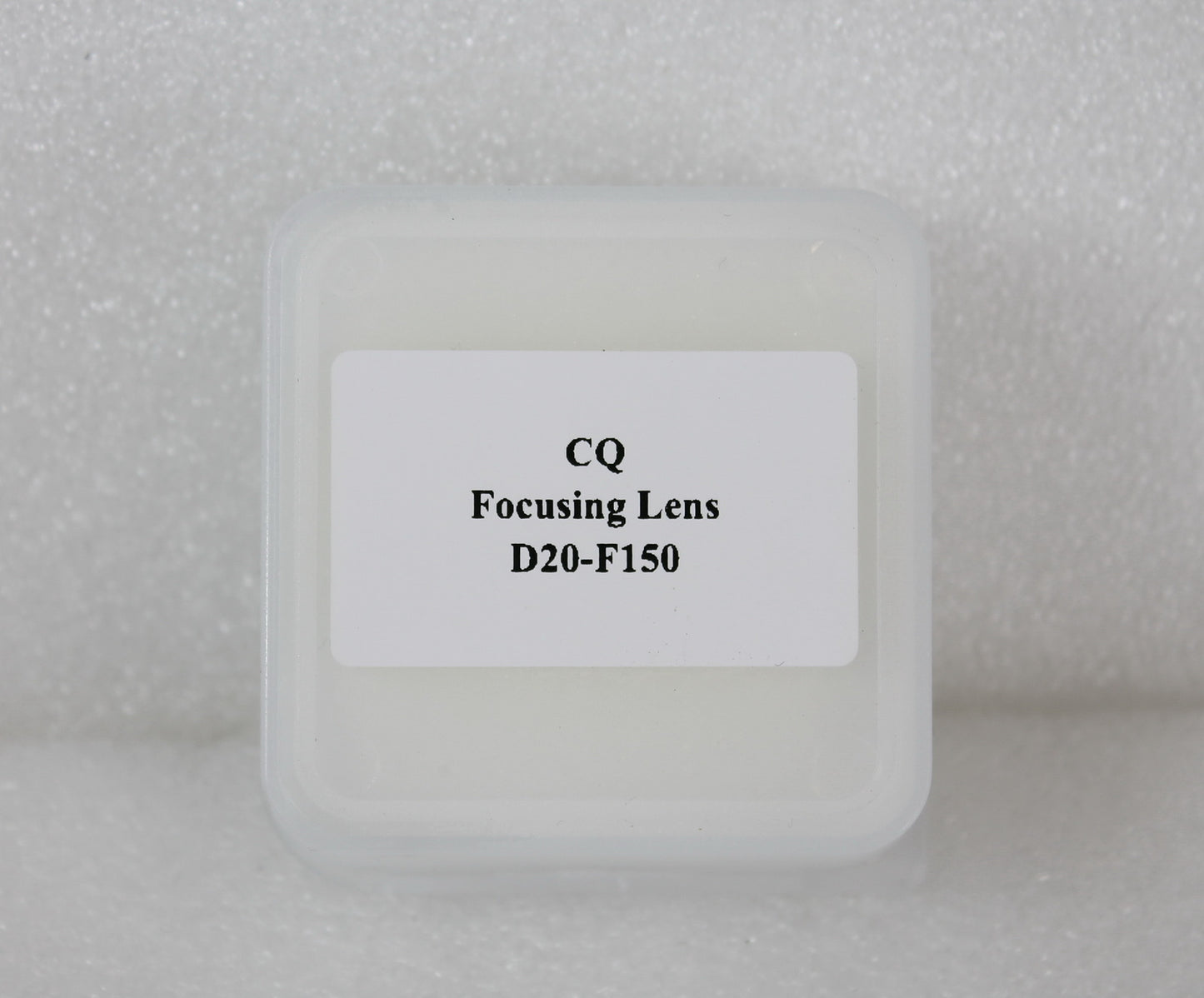

Focus Lens: CQ-D20-F150 for welding, CQ-D20-F800 for cleaning

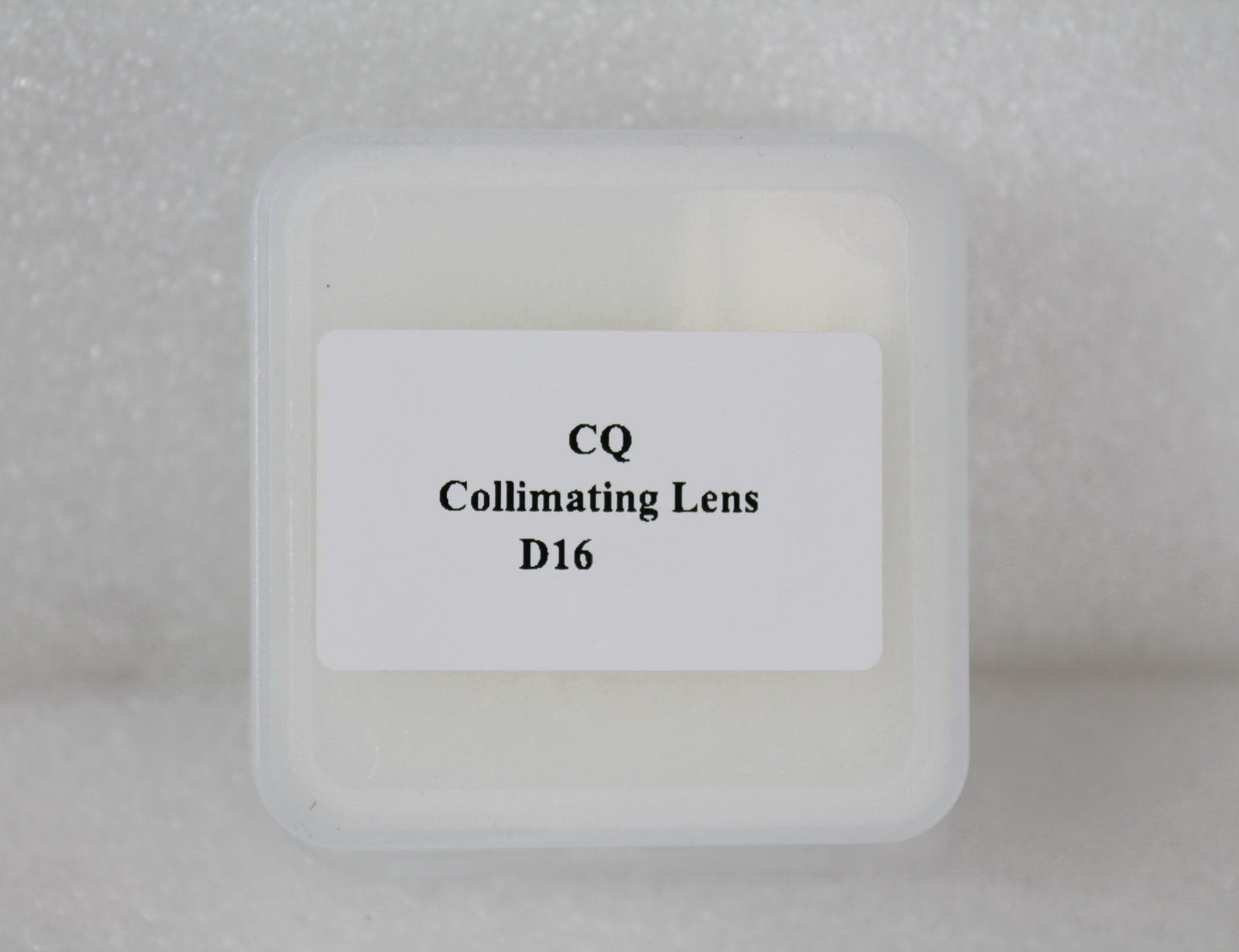

Collimating Lens: CQ-D16-F50

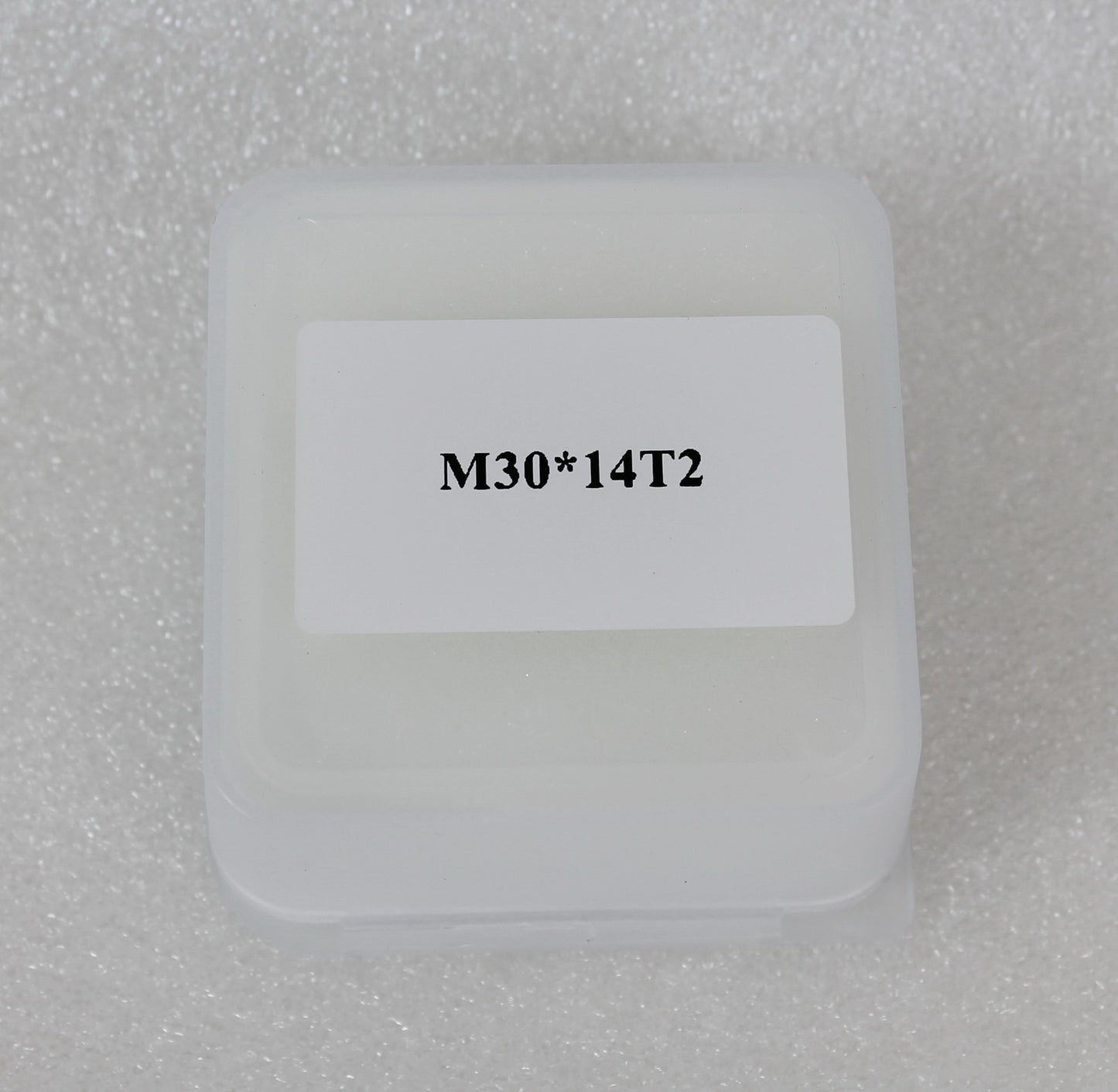

Vibrating Lens: Vib Lens, M30-14T2, mounted on the high-speed motor

Note:

• Protective Lens need to be checked/changed after 3-6 hours full time using.
• Focus lens has concave and convex sides. On the edge of the lens, it has a model mark and V direction (toward the rear side of the gun, where the motor located). Recommend Replacement Days (4 - 8 hours using daily): 60 - 120 days or longer if still clean.
• Collimating Lens lens has concave and convex sides. On the edge of the lens, it has a model mark and V direction (toward the rear side of the gun, where the QBH head located).
• Recommend Replacement Days for Collimating Lens and Vibrating Lens: 6-12 months or longer.
• Those lens specifically compatible with Xing Laser machines; may not fit other brands.
