Lens for CW Laser Pro Rusty Remove Machine Gun - Water Cooling Machine

Lens for CW Laser Pro Rusty Remove Machine Gun - Water Cooling Machine

3 total reviews

Regular price $45.00
Regular price Sale price $45.00
Sale Sold out
Shipping calculated at checkout.
Lens Type

Lens Types & Details

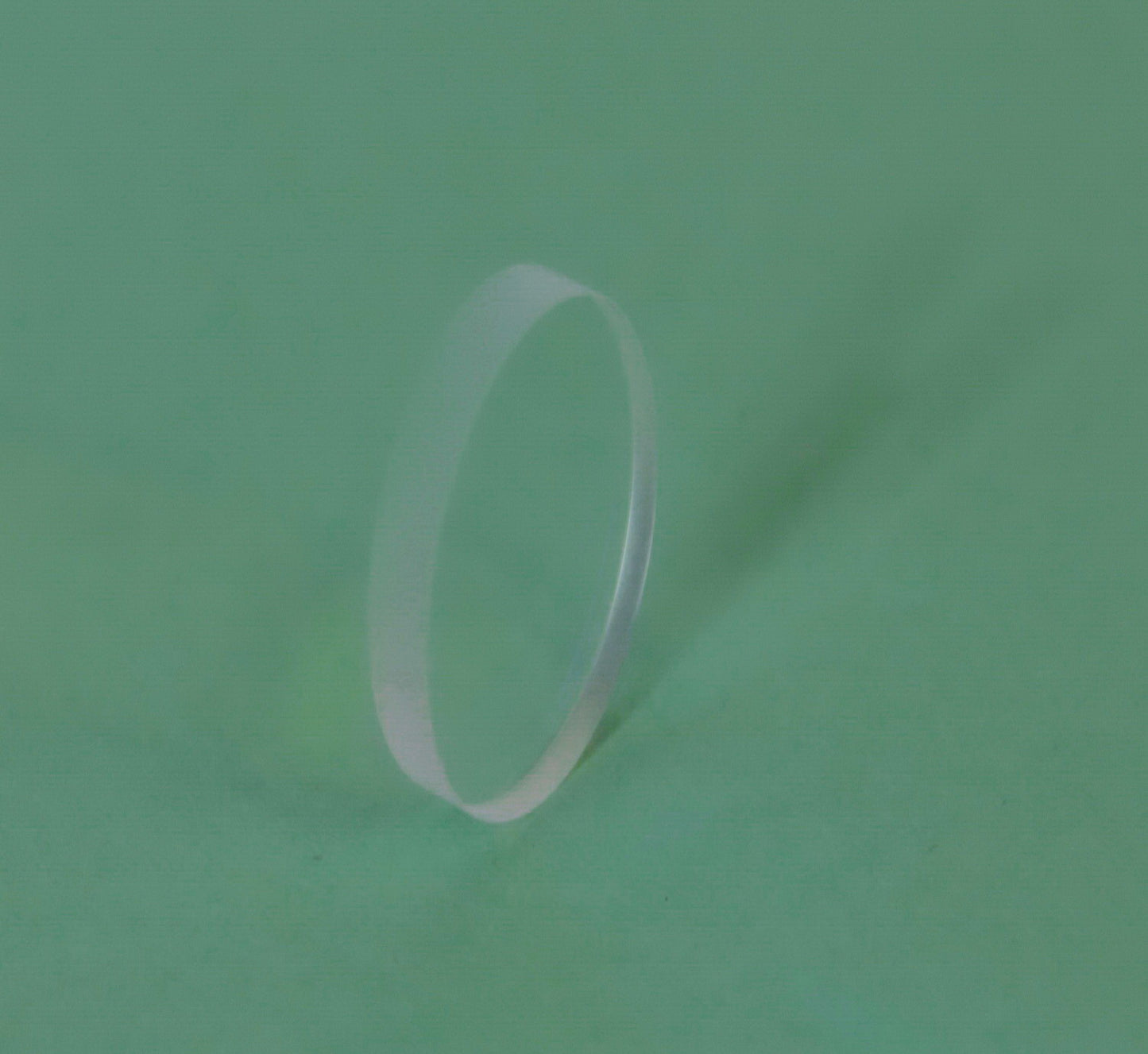

  • Protective Lens
    • Model: D30-T2 – Protection to another lens
    • Lens Diameter Codes D30 – Lens diameter: 30 mm
    • Type: Flat lens on both sides
    • Use: General protection during operation
    • Installation Direction: No specific orientation required due to flat surfaces
    • Usage & Replacement: Inspect or replace every 3–6 hours of continuous use.
    • Note: Lifespan may vary depending on application intensity and environment
  • Focus Lens
    • Models: D20-F800 – Used for cleaning
    • Type: Plano-convex lens (one flat side, one convex side)
    • Installation: Must be installed with correct orientation – the "V" mark points toward the rear of the laser gun
    • Focus Distances: F800: 800 mm (approx. 31.5 inches)
    • Lens Diameter Codes D20 – Lens diameter: 20 mm
    • Recommended Replacement: Every 60–120 days based on 4–8 hours of daily use. Replace sooner if contamination is visible or performance degrades

 Collimating Lens

    • Model: D16-F50
    • Type: Plano-convex lens
    • Installation: Proper orientation required – "V" mark faces the rear side (toward the QBH head)
    • Focus Distance: F50: 50 mm (approx. 1.96 inches)
    • Lens Diameter Codes: D16 – Lens diameter: 16 mm
    • Recommended Replacement: Every 6–12 months depending on usage conditions

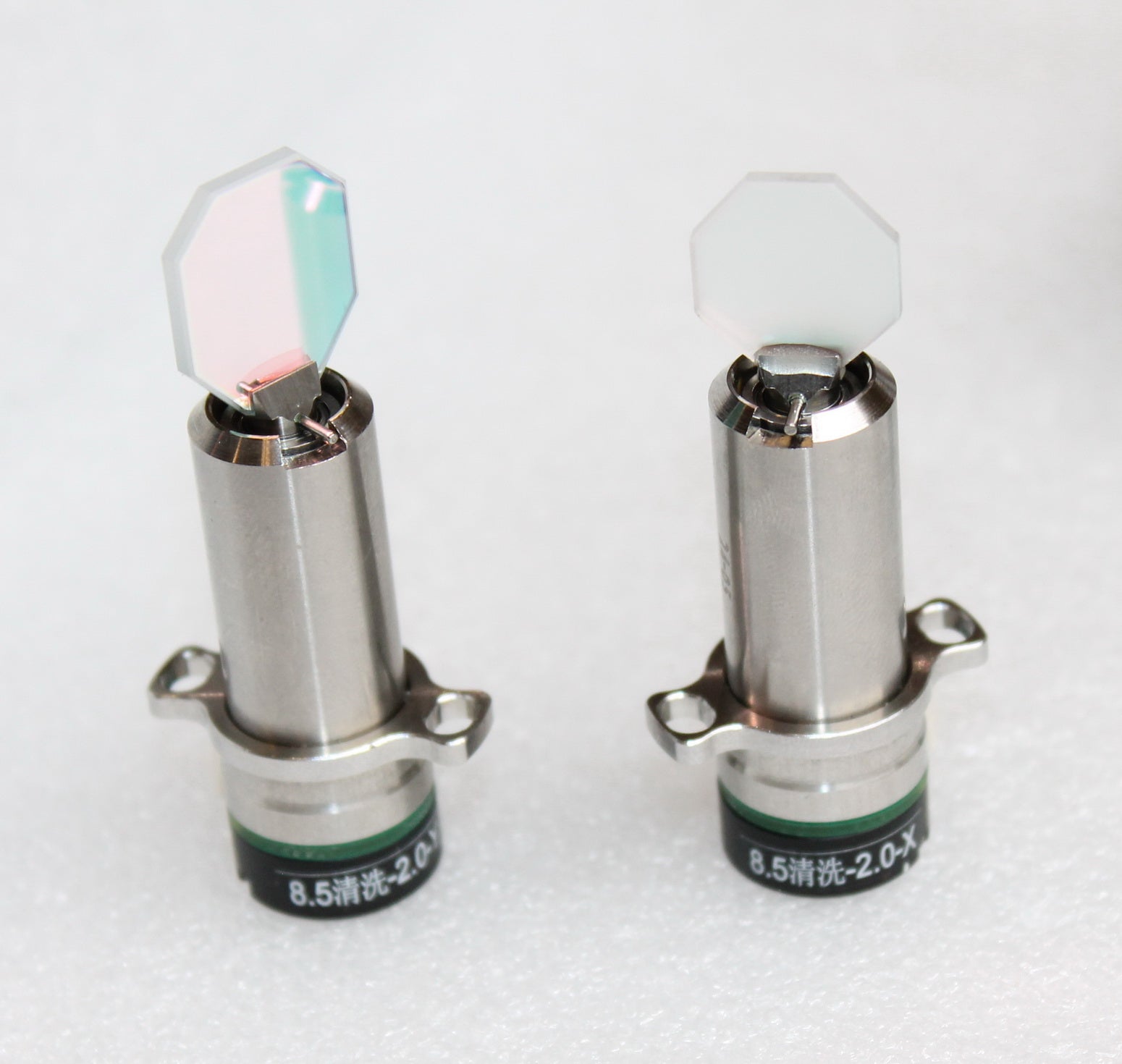

  • Vibrating Lens
    • Model: DO-CM-VBL-X & Y ( 1 set)
    • Mounting: Installed on a high-speed motor
    • Note: Has a designated directional setup for proper operation
    • Recommended Replacement: Every 6–12 months depending on usage conditions

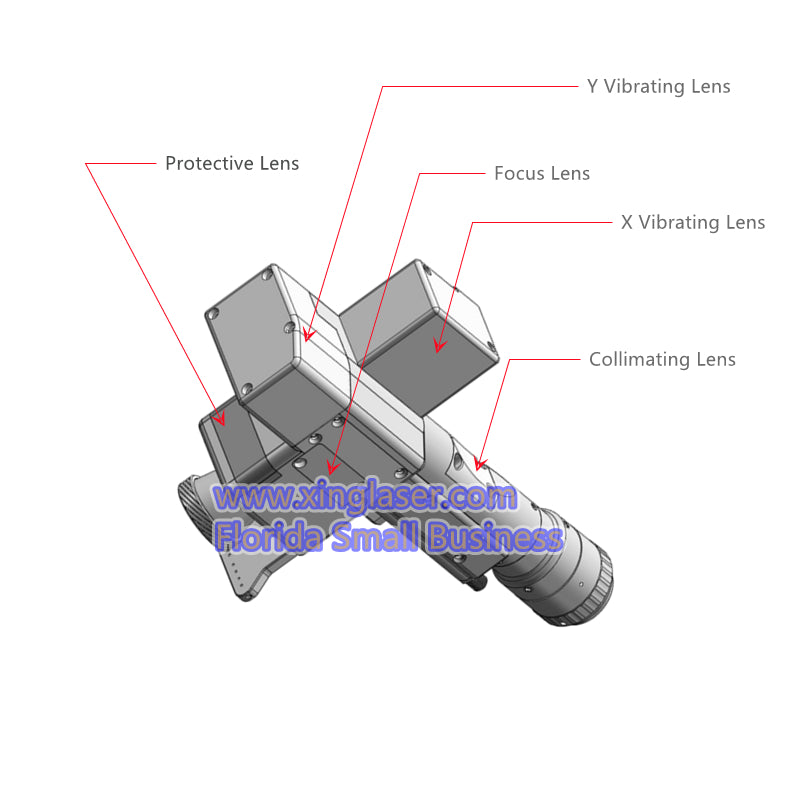

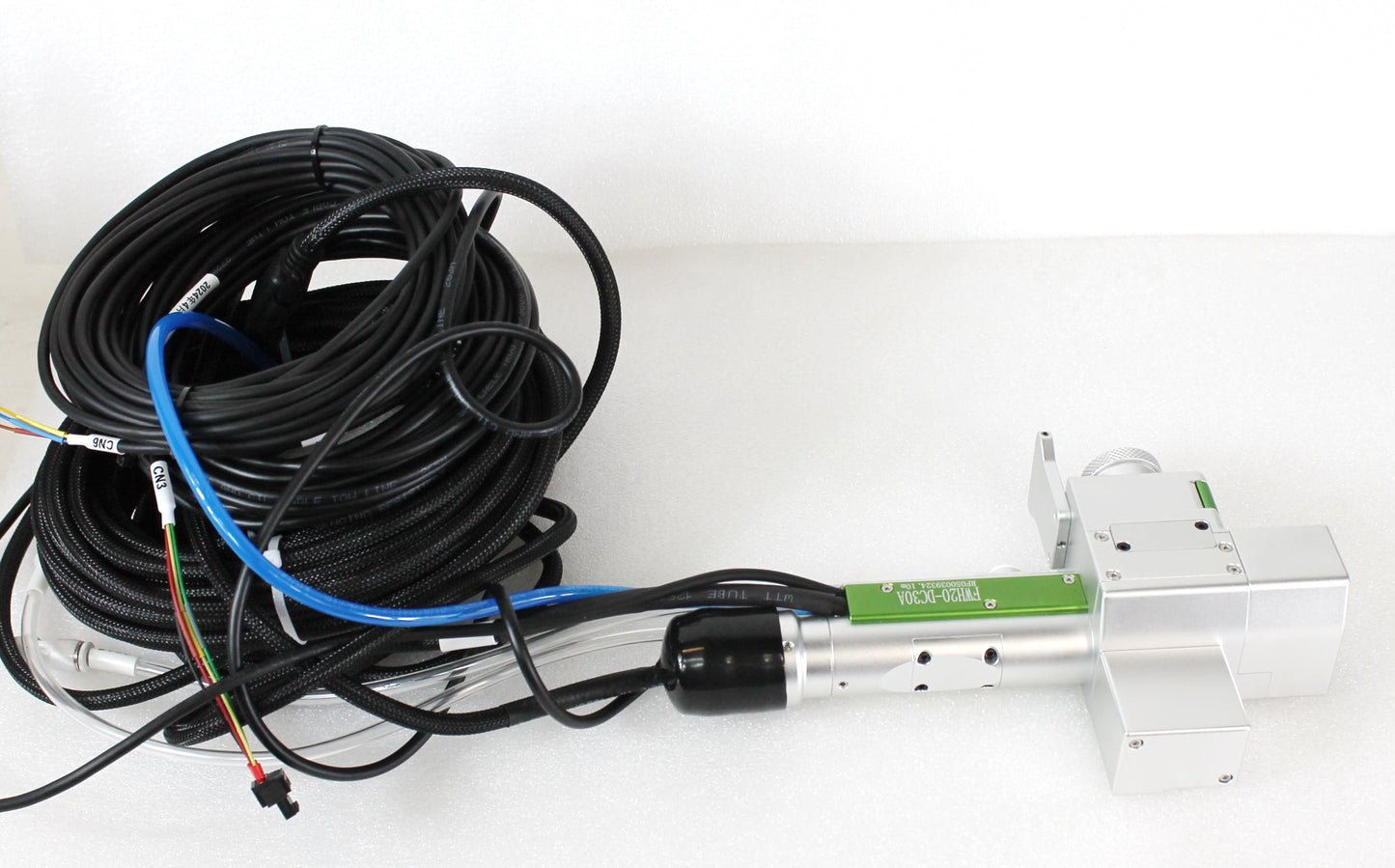

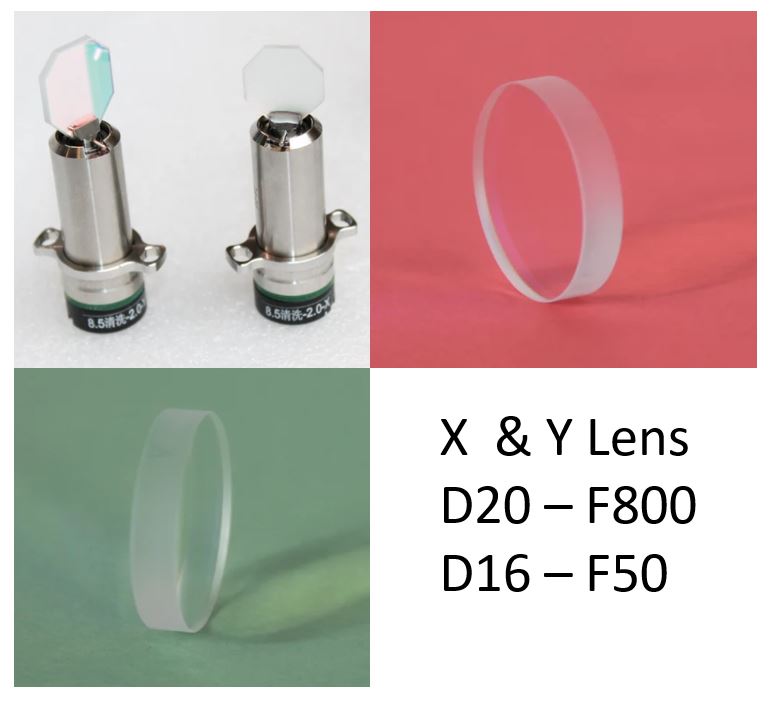

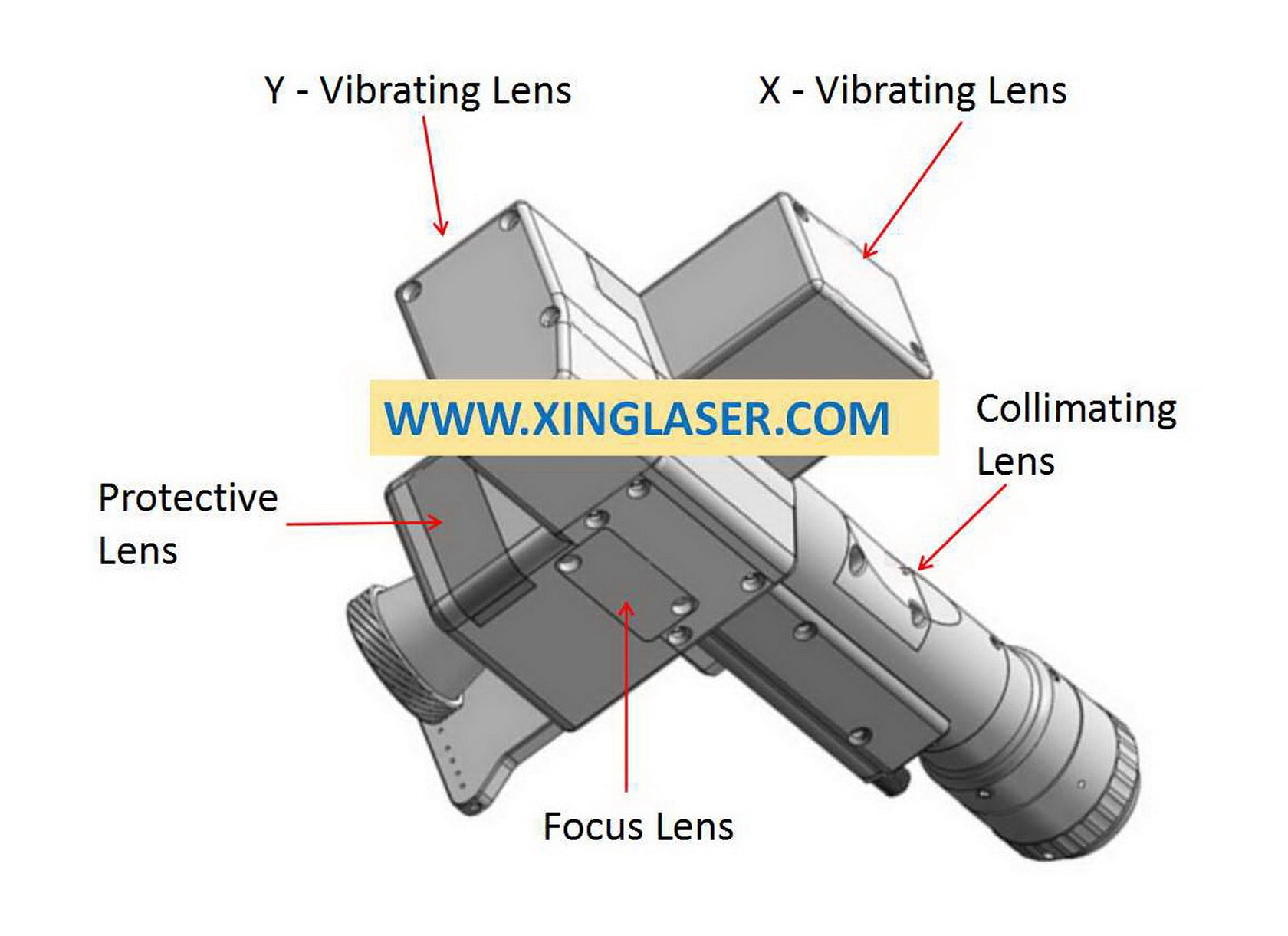

Cleaning Guns Compatibility

The following lens models are included in standard welding gun assemblies:

  • D30-T2 (Protective Lens)
  • D20-F800 (Focus Lens for cleaning)
  • D16-F50 (Collimating Lens)
  • DO-CM-VBL-X & Y (Vibrating Lens)

Important Compatibility Notice:
These lenses are specifically designed for use with Xing Laser machine systems. Compatibility with other brands is not guaranteed.
